Mk1 Ford Escort 2.0 pinto - SOLD

AGS

This is now SOLD. Search for similar items.

Description:

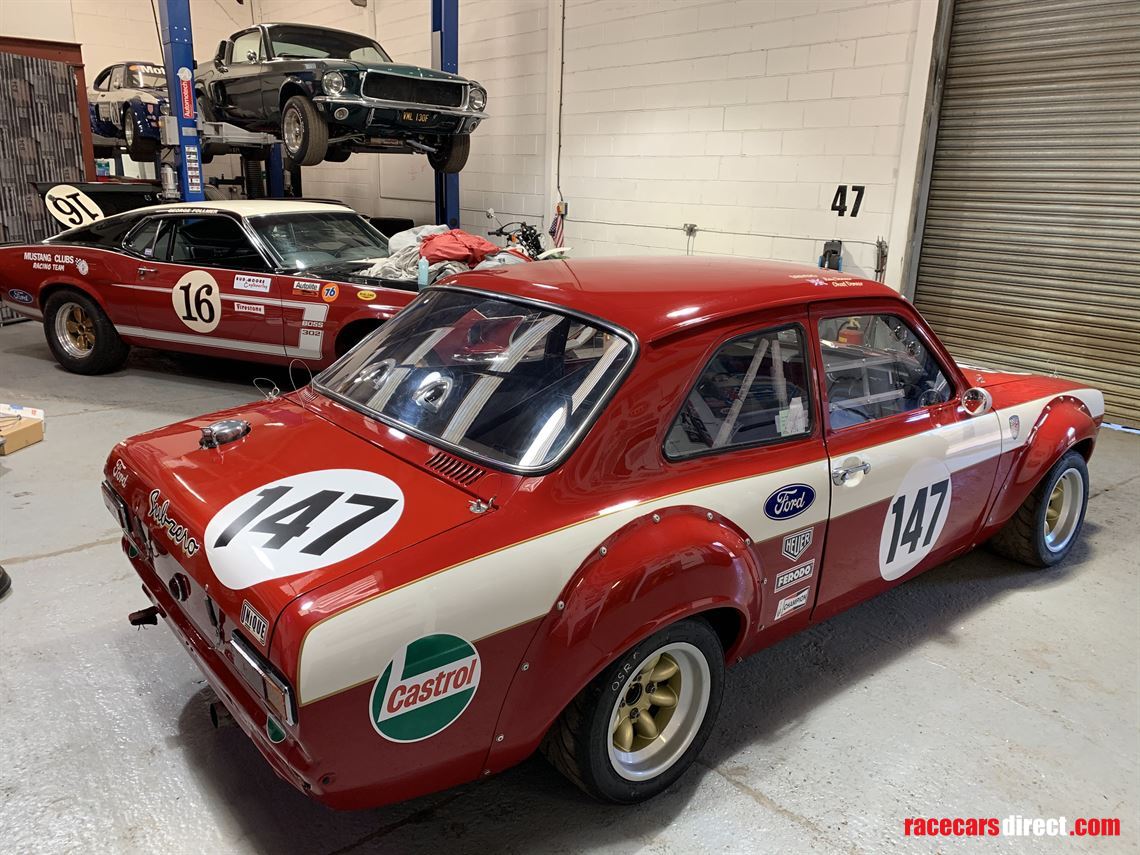

Mk1 Ford Escort 2.0 pinto

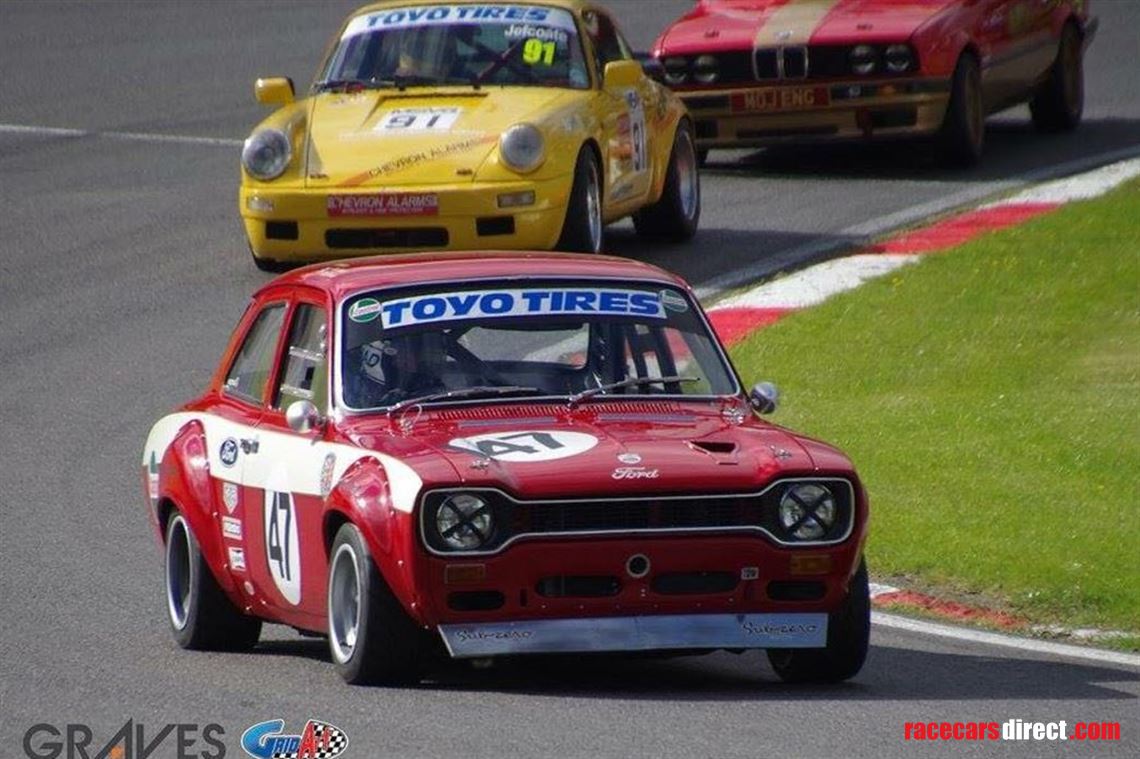

Full race mk1 Ford escort , multiple race winning car , ready to go .

Bodywork was completely redone a couple of years ago, every panel was new apart from roof which magnum didn’t do then so we found a really good used one.

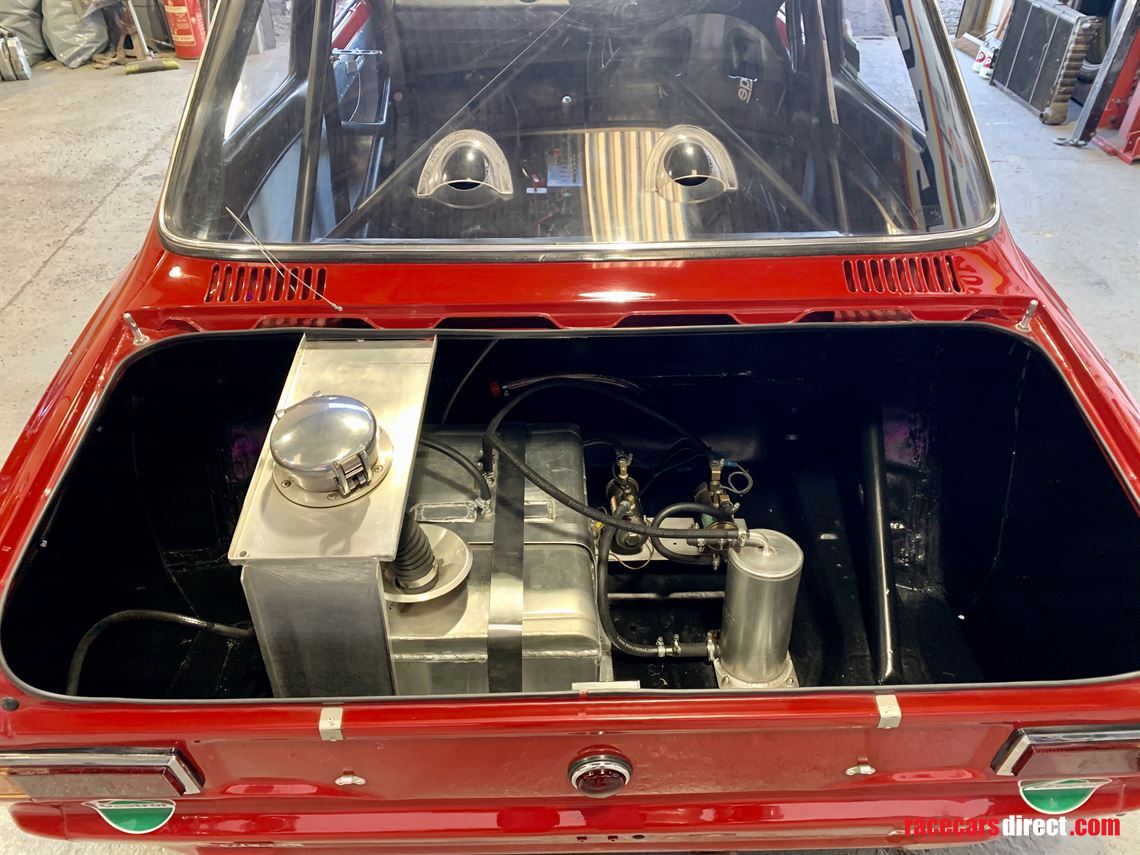

Fibreglass bubbles, bonnet and boot. Alloy fuel cell with monza filler
Car has raced for most of its life so has never seen snow or salt.

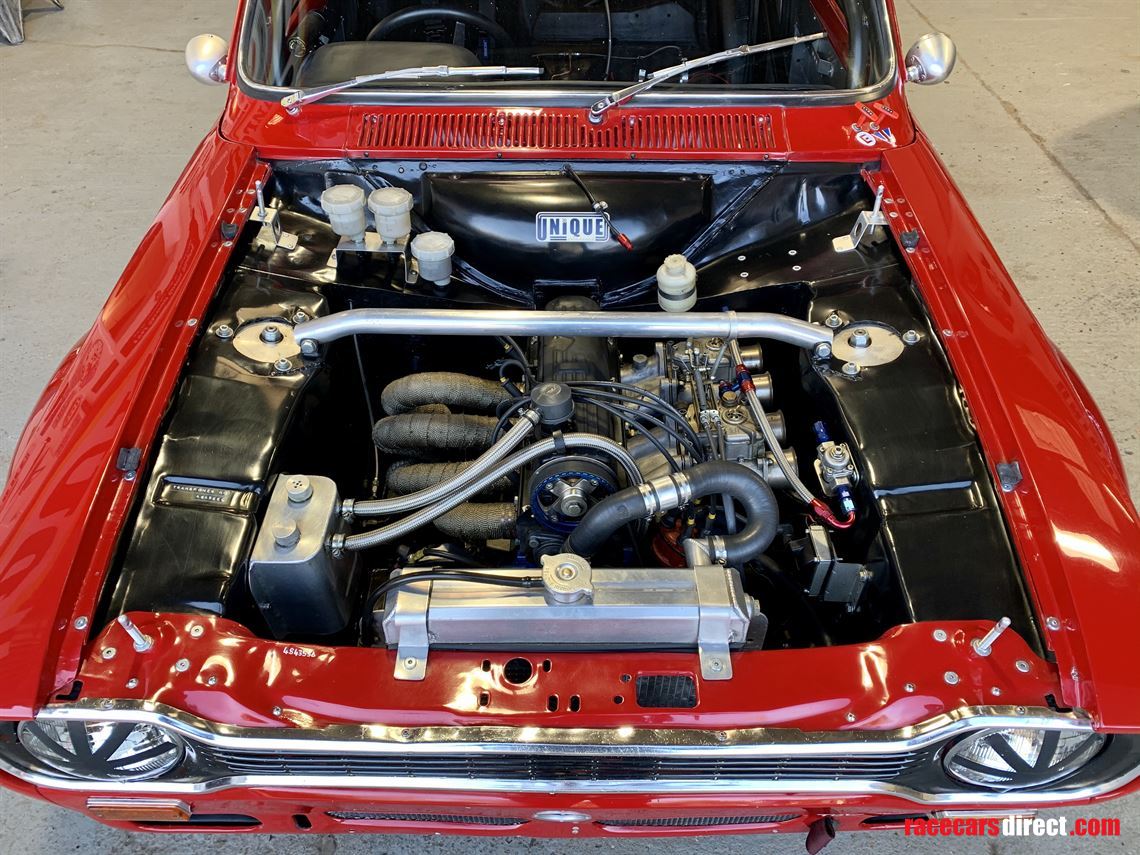

JEMS Built Race Pinto

capacity 2045cc
bore 92mm
stroke 77
comp ratio static 11.7.1

Top end.
Very heavily modified head!! inserts fitted to inlet ports to realign air flow. big valves fitted inlet 1.8" exhaust 1.5" both ground with special angles.
The head was fully developed on a super flow head bench and all ports balanced for maximum flow rates.
Then from this info a cam was designed and custom ground at Piper cams, who also supplied valve springs cam followers and vernior pulley.
All rocker geometry was set and adjusted by grinding the valve tips and adjusting post heights so all the inlet valve lifts are the same also the exhausts to.
The inlet manifold was also modified to re position with the new port shape.
50 dcoe carbs with webber linkage and custom trumpets and chokes.
Custom exhaust design.

Bottom end
Cosworth 205 block
bored and honed to our own spec and finish
Fully de burred and polished.
Skimmed on the crank centre line for 0 run out.
o ringed for gasket location.
Blue printed
Custom light weight pistons
Custom long, light weight rods
H,d bearings with set oil clearances.
Fully balanced with light weight flywheel and super clutch 7.1,4"
Dry sumped with titan pump cosworth group a head gasket
arp studs,

This engine originally made 228bhp and 171ft lbs on a free stand engine dyno with absolute perfect running conditions.
Then as the engine goes into the car and a chassis dyno is used the power decreases which is very normal mainly due to heat and hot intake conditions.

The special thing about this engine is that it pulls from very low down and keeps on going all the way to the top, This is what we always try to achieve with a flat torque curve.

Gearbox is quaife type 9 clubman box with quickshift and alloy bellhousing.

Coil over Gaz front legs, anti dive, rose jointed arms.
Rear is leaf springs, Gaz shocks and radius arms (so it is legal to race everywhere, even stuff like toyos)

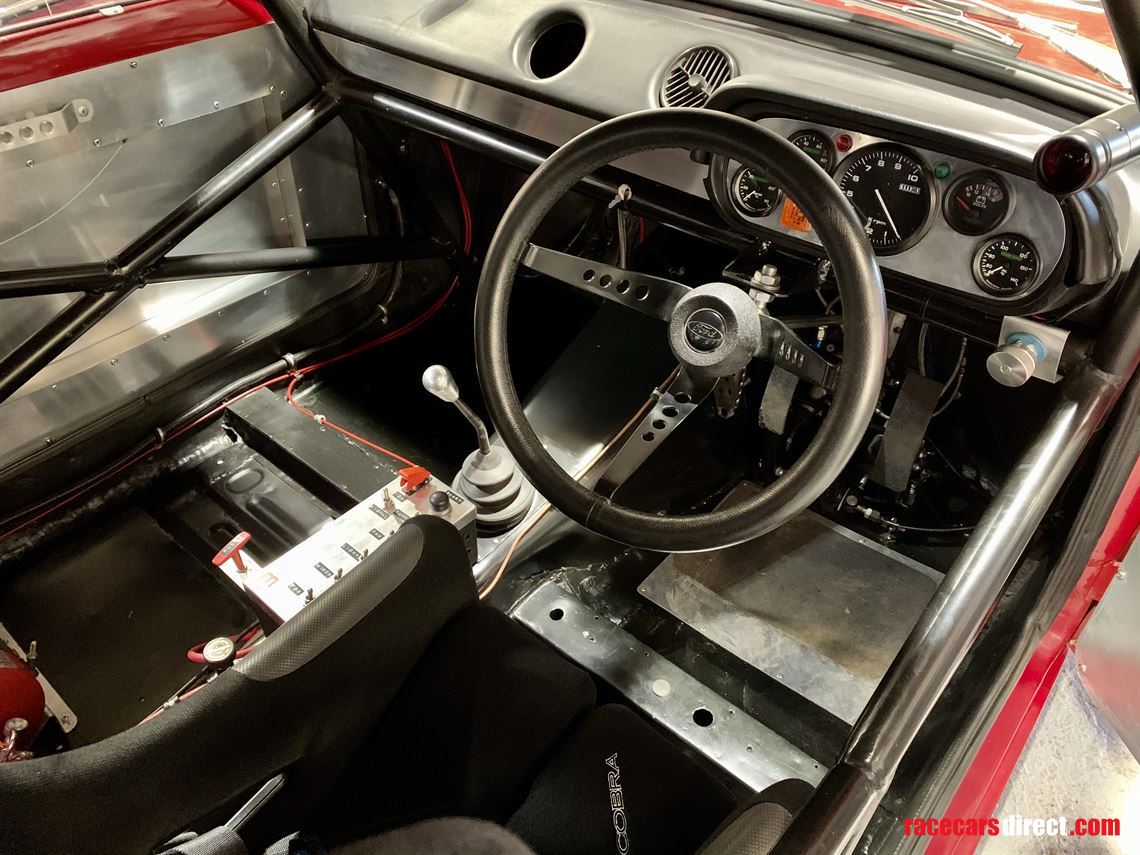

Quick rack, quick release works style wheel. Corbeau seat with harnesses

8x13 minilites with good toyo tyres, willwood 4 pot brakes, recently overhauled with new seals etc and pads (done one meeting)
