PRO Series race trailer by Stella Works

AGS

Description:



www.stellaworks.eu | quality | function | design

Stella Works designs and builds sound and elegant transport solutions for the racing industry. Our signature Shapeline design combines years of coachbuilding experience and dynamic automotive design delivering race transporters that have a unique appeal and deliver flawlessly. We guarantee our quality with a 3 year warranty for all our builds.



PRO:H2:X3 is a special version of the PRO:H2 series of race trailers with three axle chassis for extra payloads. The trailer can be equipped with office, expanding sides or as a car carrier only version. Special customizations for unique requirements are possible.

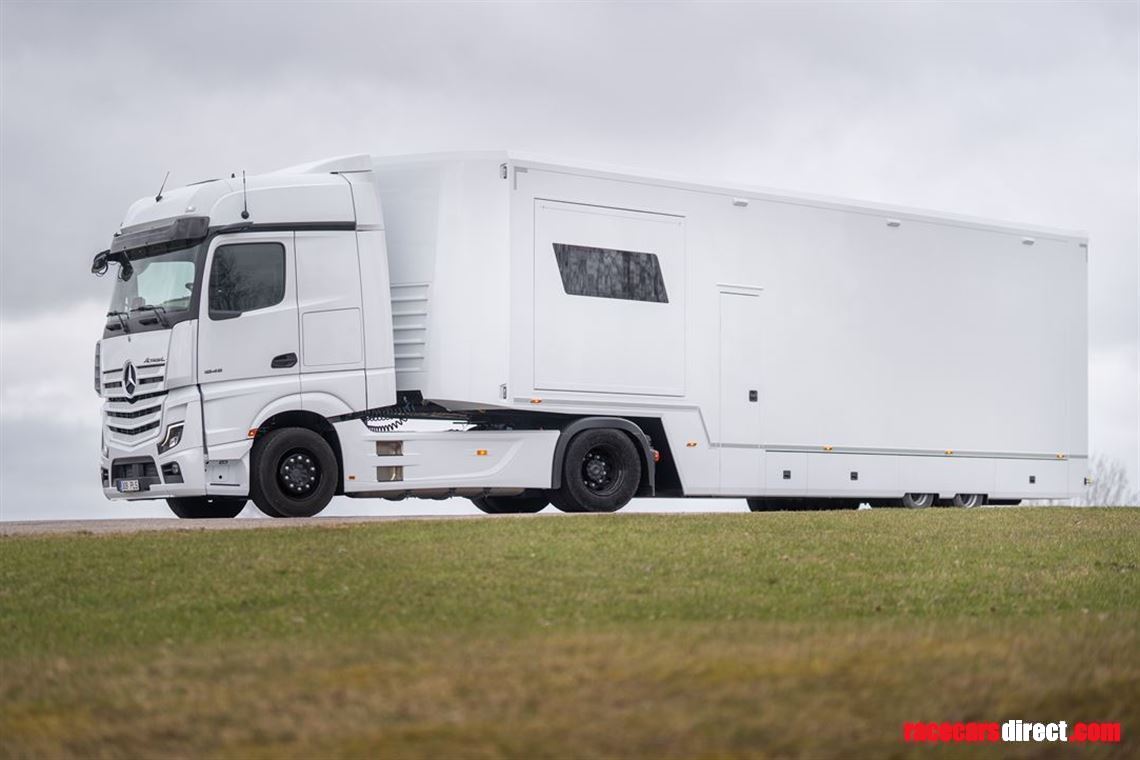

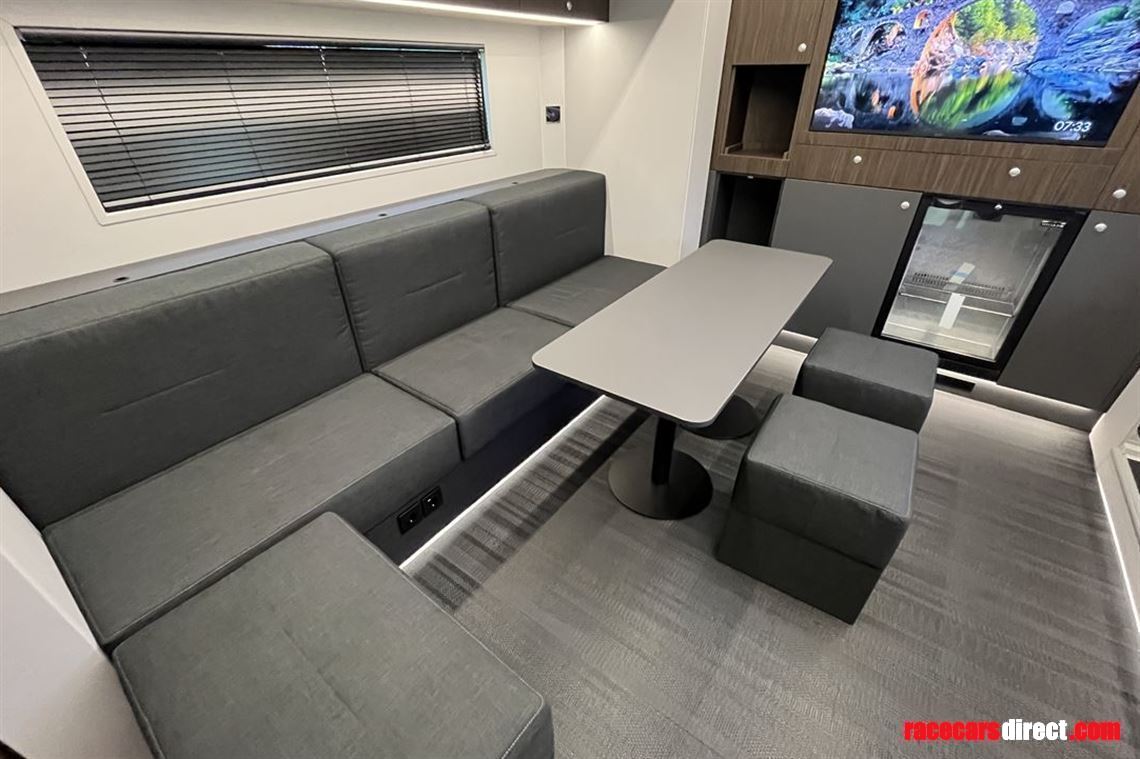

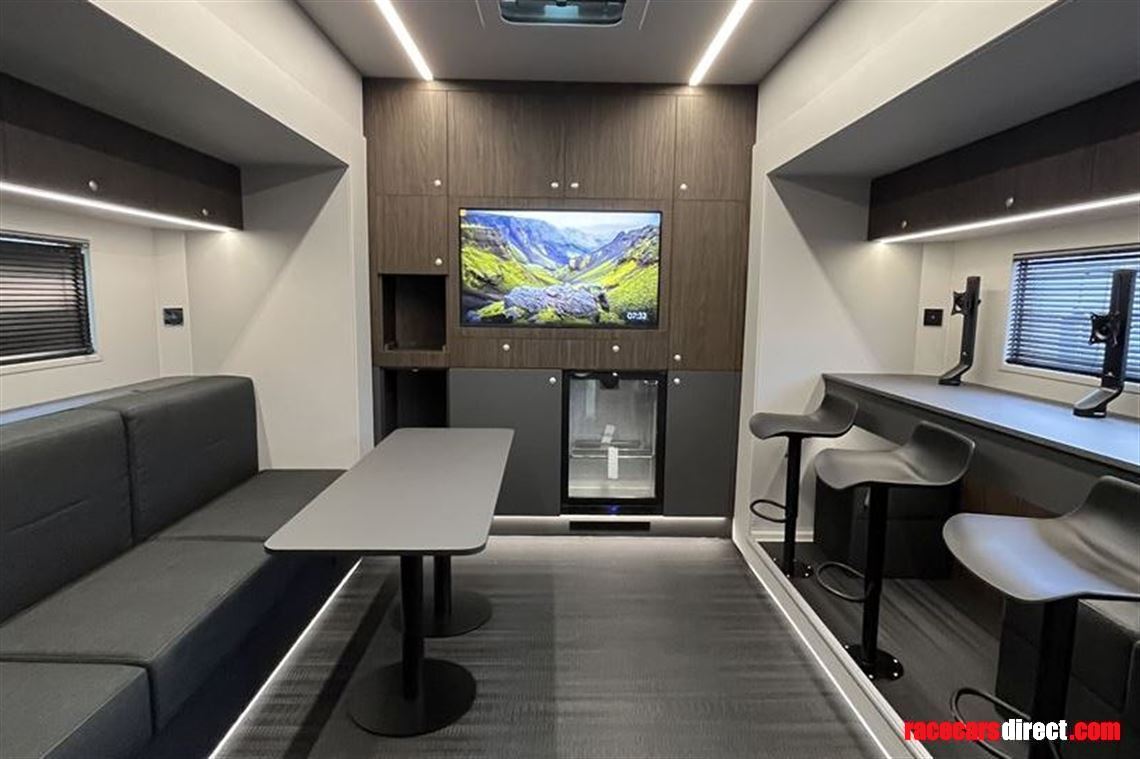

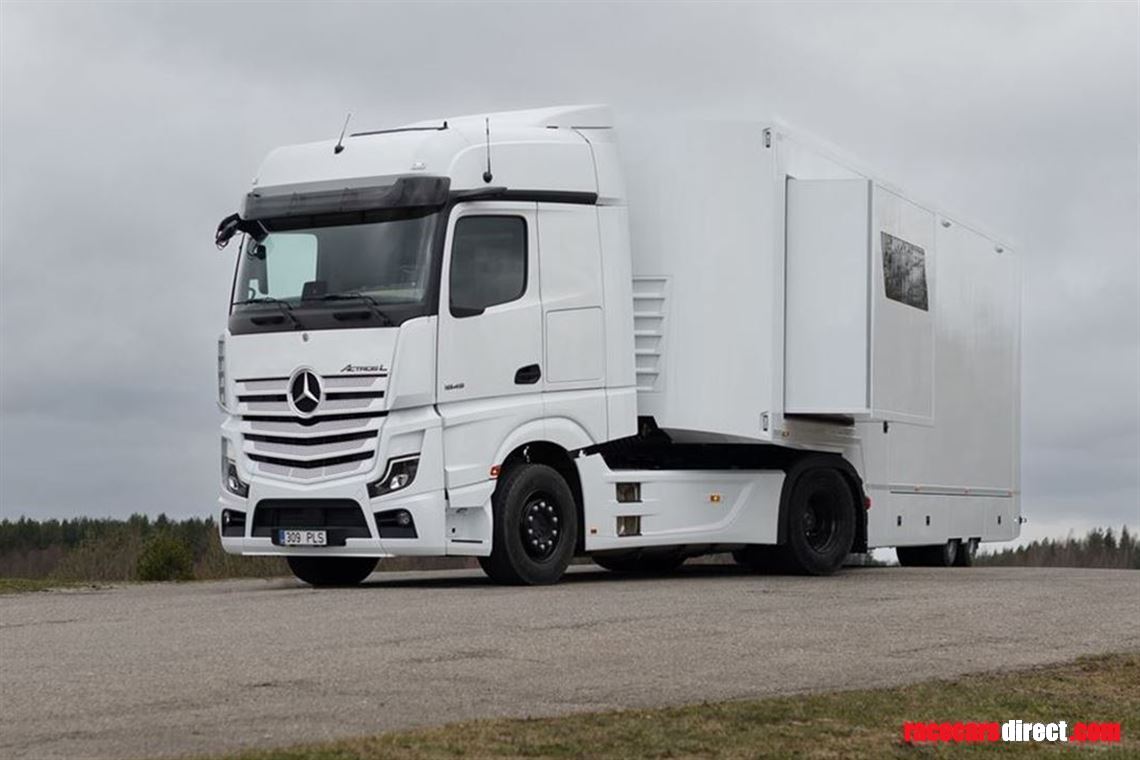

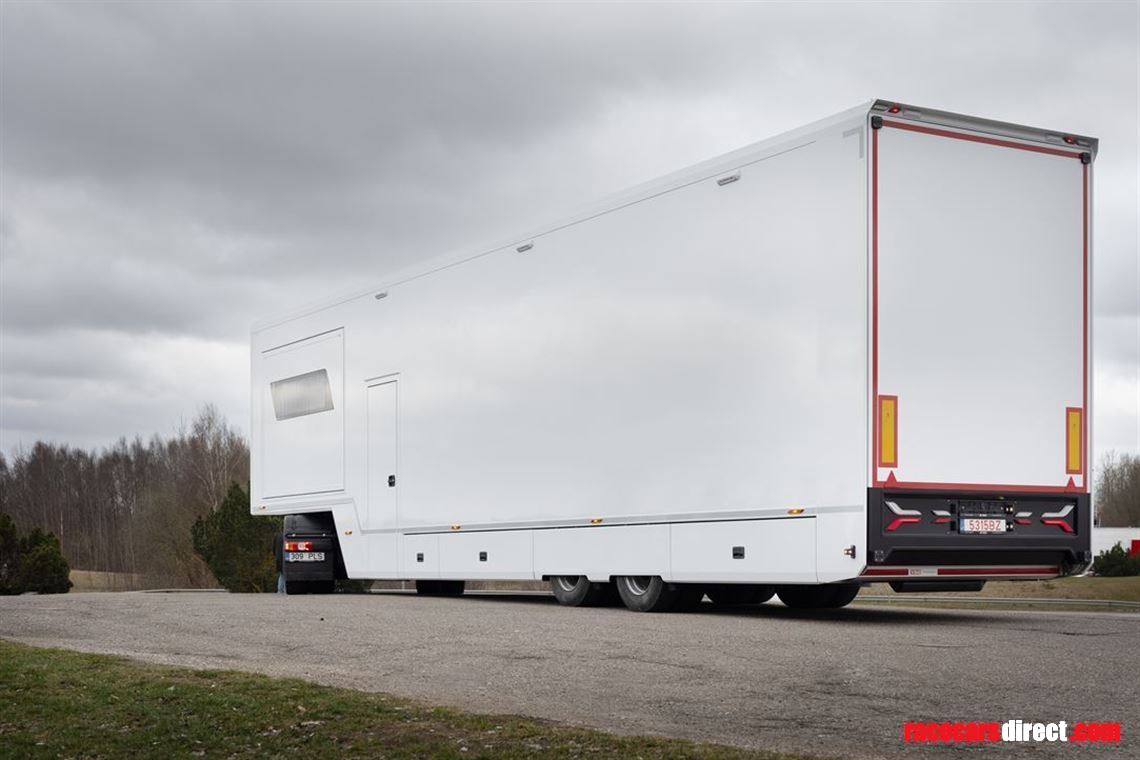

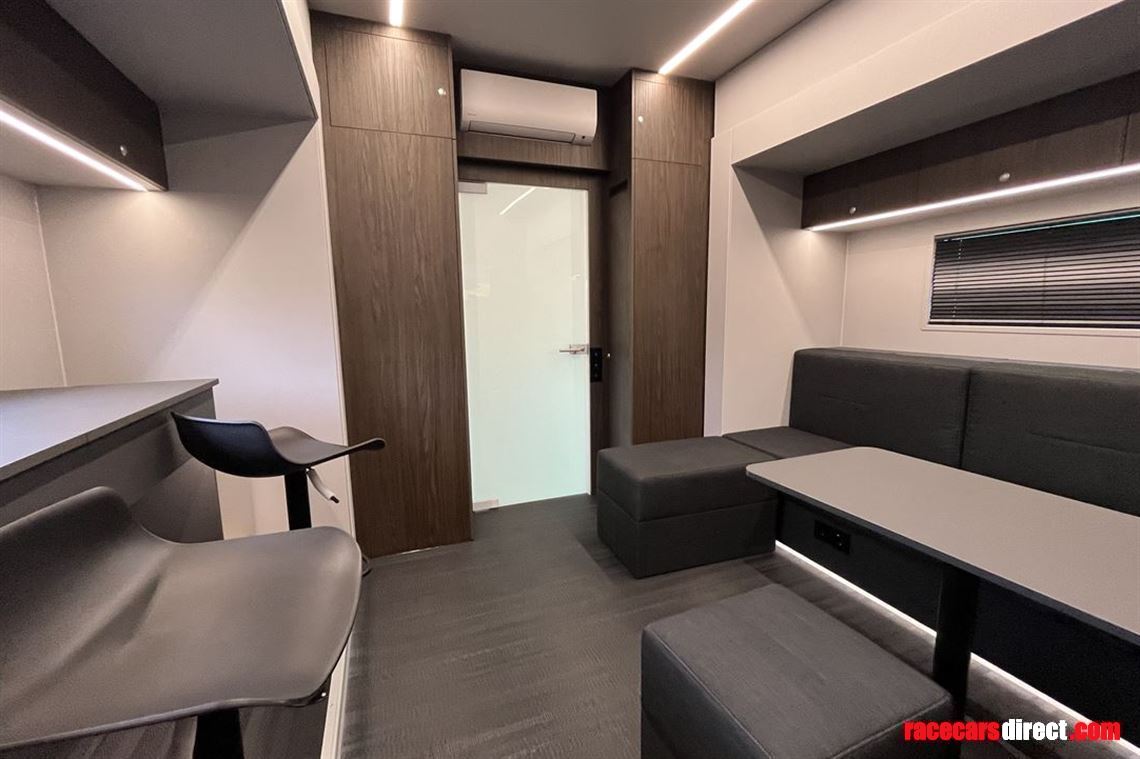

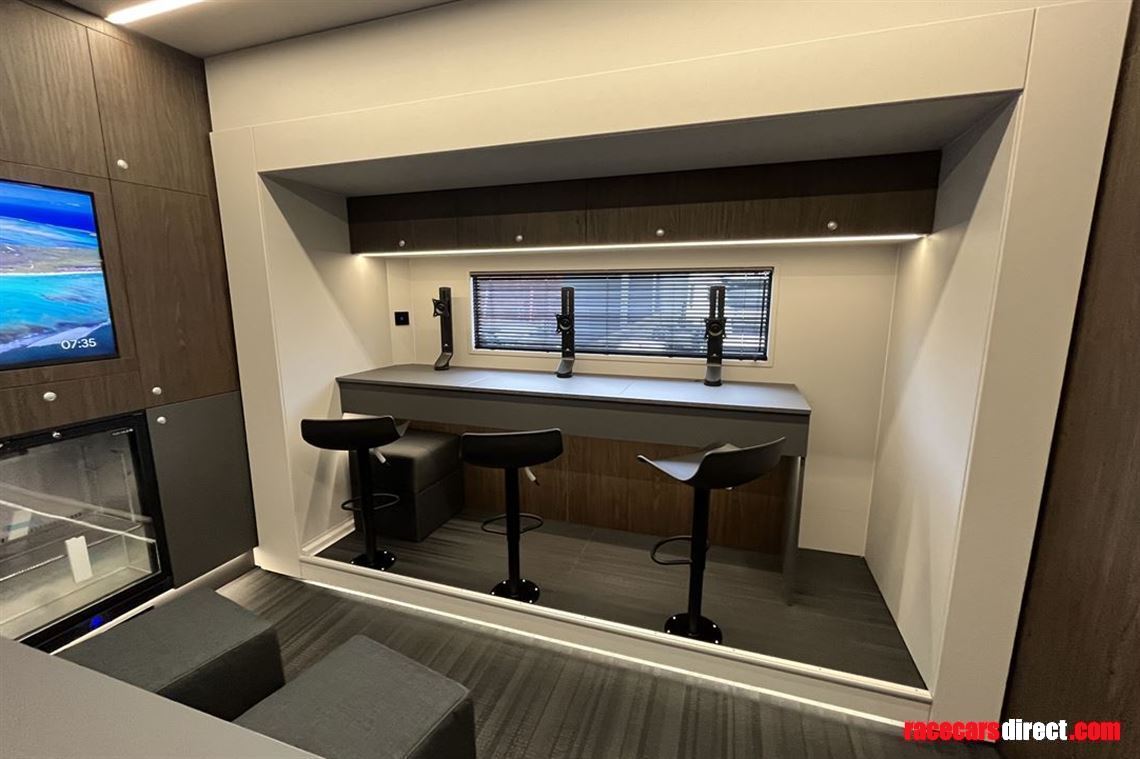

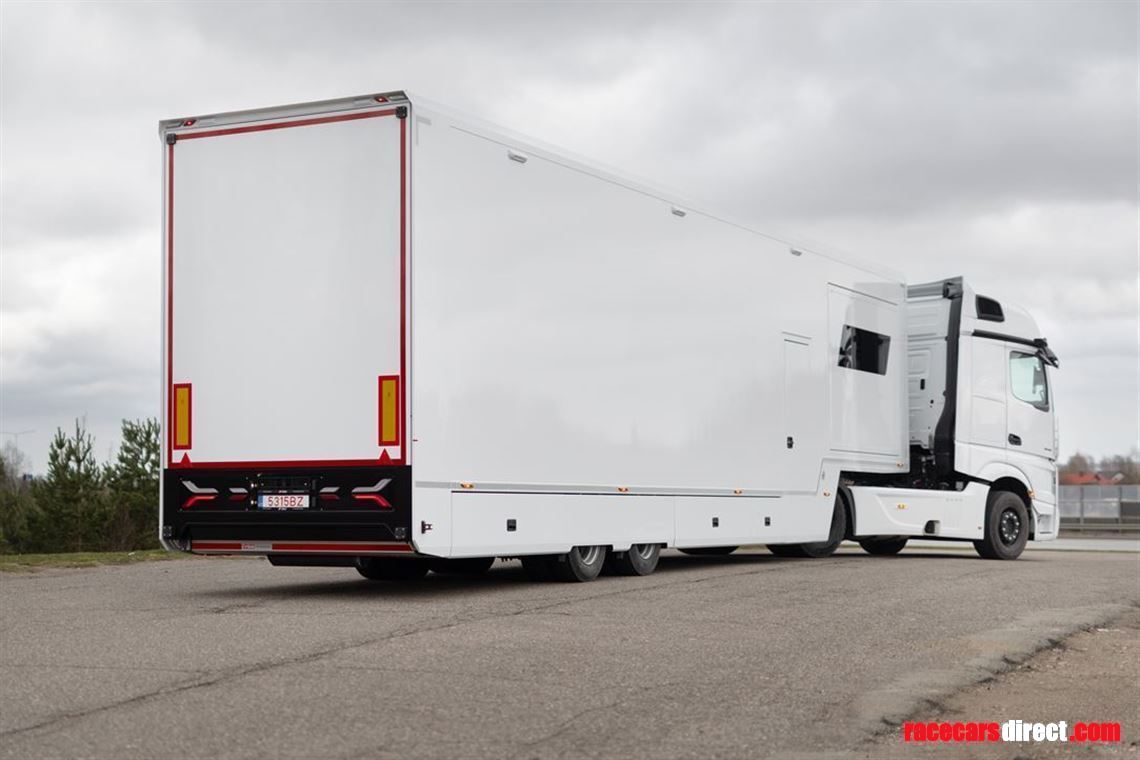

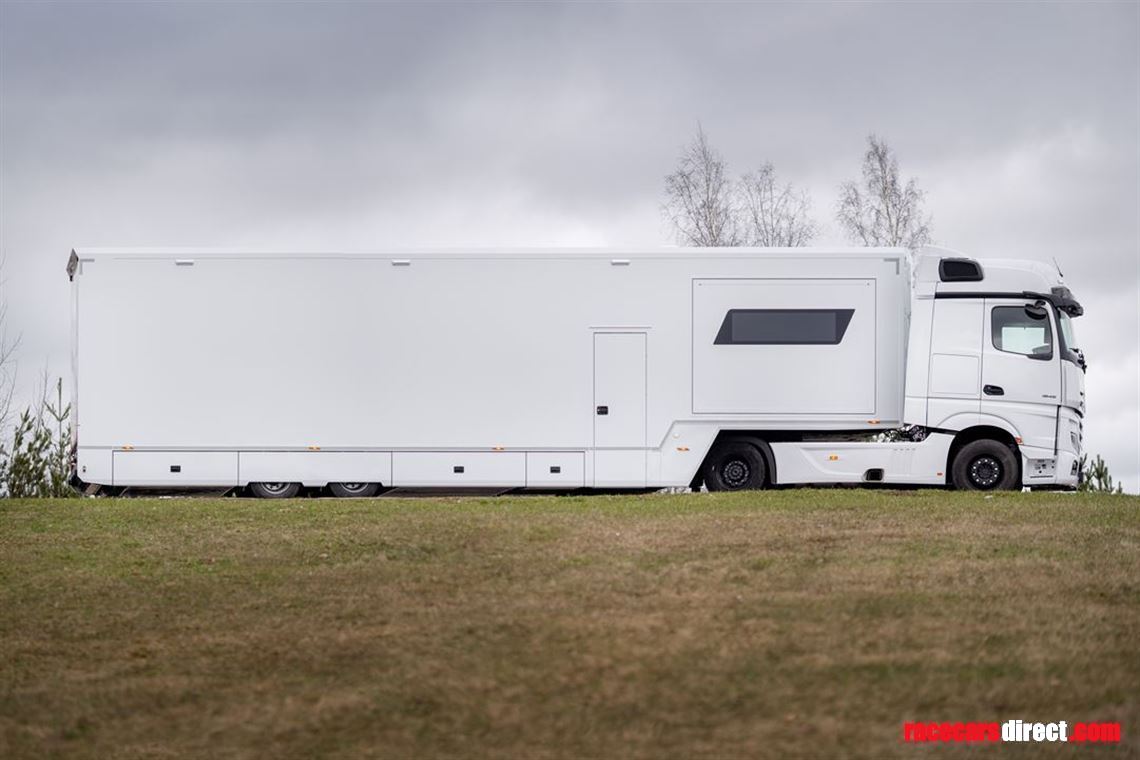

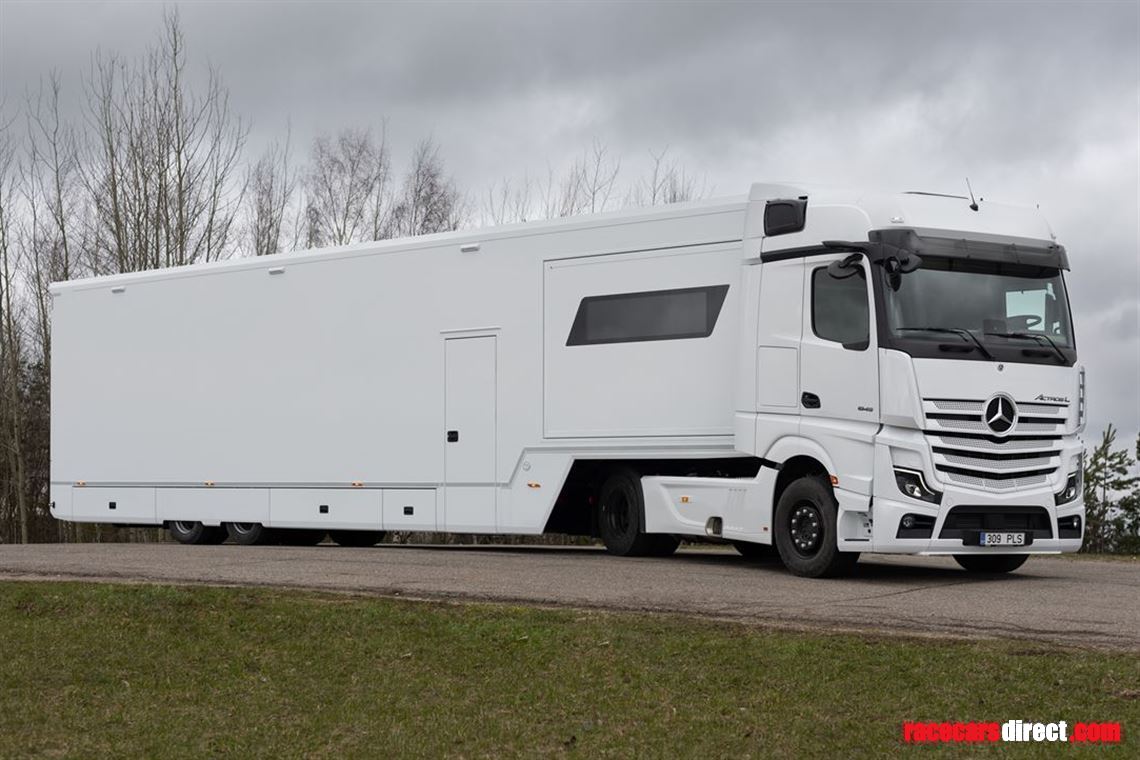

The shown trailer is an example delivered to a customer, including a custom office fitout with separate entrance directly to the gooseneck area over a slide-out platform.



Contact us for your version.



PRO:H2:X3 specifications:

  • Step frame chassis with three dual tyre SAF axles, air suspension, disc brakes
  • Wabco brake system with ABS, EBS
  • Michelin or Goodyear premium tires, 12x 265/70 R19.5
  • GWR: 38 tons
  • Body fabricated from 60 mm GRP sandwich panels with polyurethane filling
  • External dimensions (LxWxH, mm): 14000 x 4000 x 2550
  • Internal height: 3000 mm
  • Loading height: 960 mm
  • Pin height: 1140 mm
  • Stella Shapeline design with rounded front wall
  • Dhollandia 2500 kg tail lift with integrated tail lights and self-folding safety delimitations, two AGM batteries and a charger
  • Length: 3500 mm plus 1000 mm slideout extensions
  • Hella body lights
  • Color RAL 9016 (other, pearl and metallic colours optional*)
  • Exterior doors, lowered, entrance width ~800 mm
  • EU Certificate of Conformity
  • 3 year warranty



 PRO:H2 options:

  • Underbody compartments made of diamond plated stainless steel, with gas strut supported aluminium covers, dust and waterproof seals, lockable
  • Manually adjustable 2nd car deck, 6-8 individually adjustable sections, wheel ramp or full floor configurations
  • Garage/workshop area finishing per individual requirements
  • Installation of office area with fit out per individual requirements
  • Tempered glass windows in office or workshop area
  • Air conditioning for office and/or workshop areas
  • Electric system with single and/or three phase inputs and power distribution
  • Other individual requirements



If you are interested to learn more, please contact us:

Andrius G. | General manager | ag@stellaworks.eu | +370 686 515 69
