BMW E36 V8

Newman/Haas Sale

Description:

Chassis

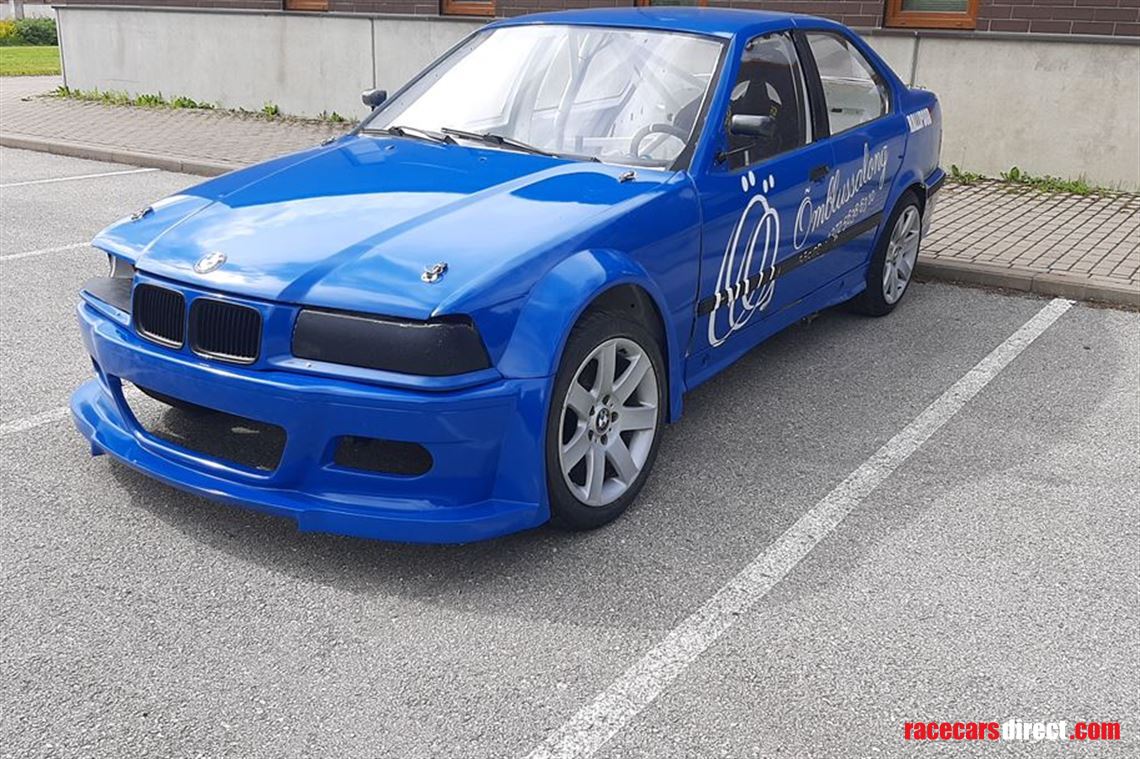

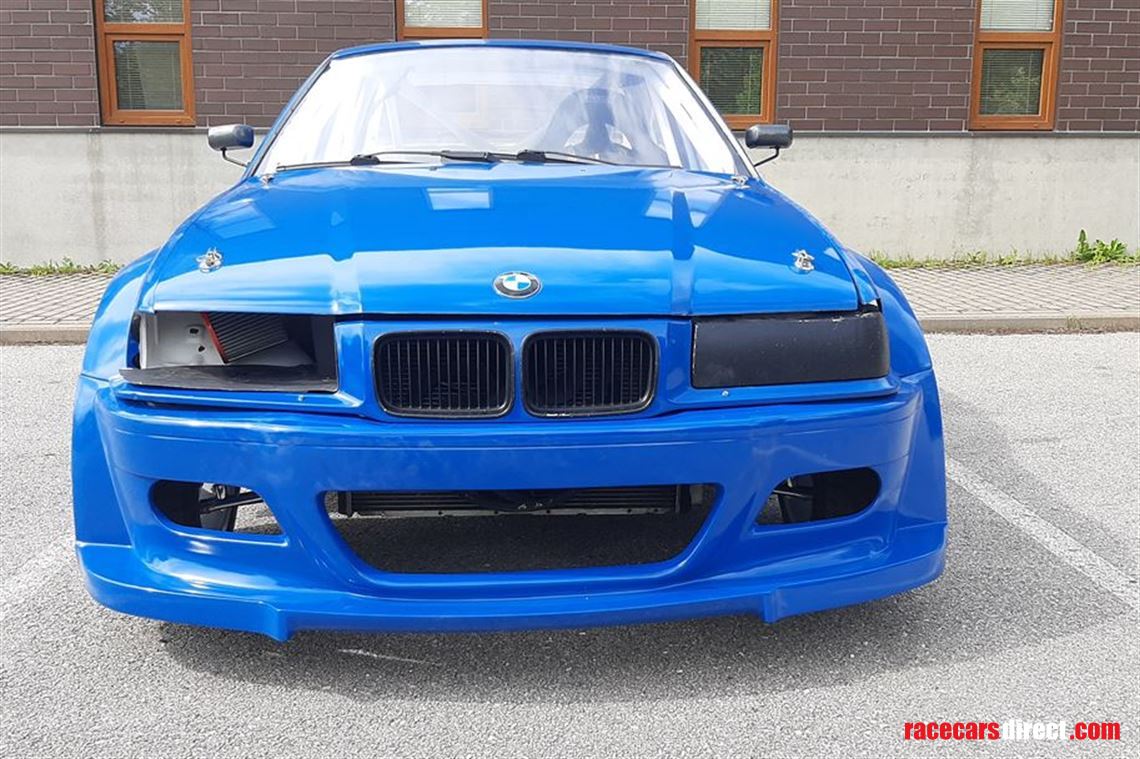

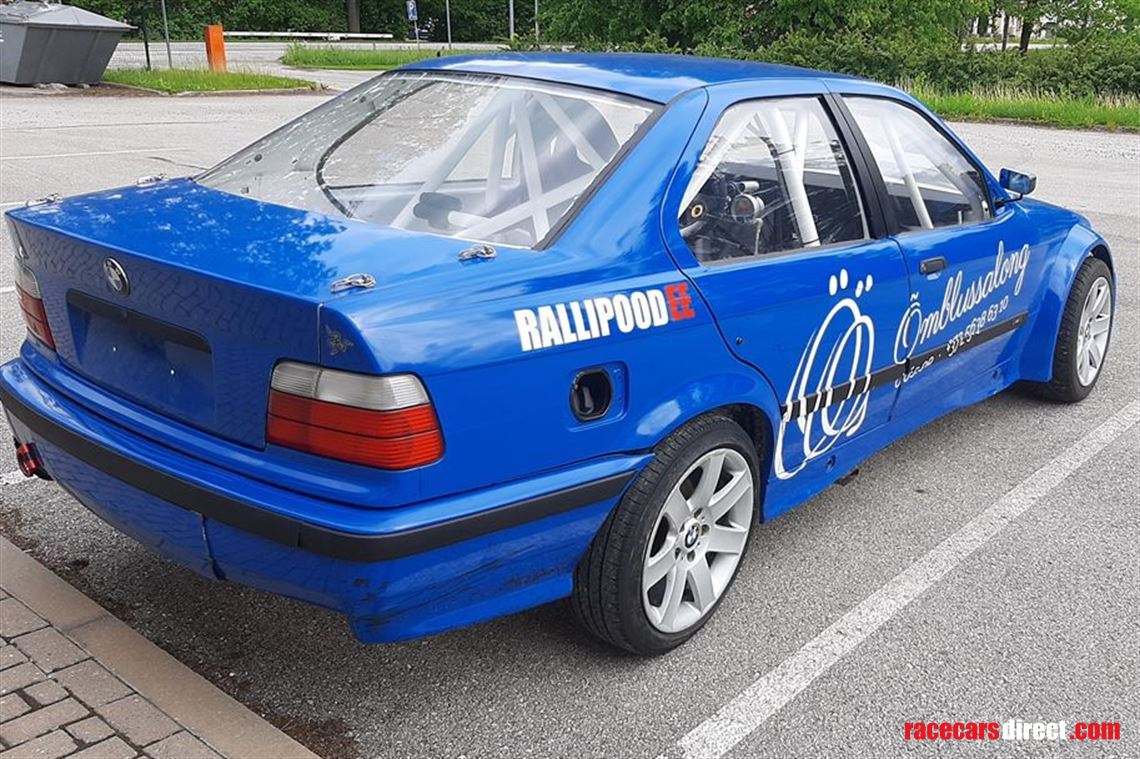

BMW e36 4 door sedan 1996.

Car body was almost in perfect shape before build.

Car chassis is fully welded to incrase torsional stiffness to achive better handling. Welds are made with MIG welding machine with pattern 10mm weld with 50mm space.

Custom Cage T45 44kg TIG welded rollcage with certification.

Chassis is fully soda blasted before repainting.

Glassfiber parts:

·         Roof

·         Front fenders

·         Trunk floor

Bulkhead from the back of the back seat is removed.

Rear axle mountings are reinforced and attached to the rollcage. Stronger M12 12.9 bolts are used to fasten the rear axle to the body.

Gearbox tunnel is modified to bring the motor and the gearbox as back as possible. Engine is almost behind front axle.

All doors and hatches are made from orginal parts as light as possible.

All windows are made of polycarbonate sheet, front winndow is new and made of scratch proof polycarbonate.



Front Axle

New Wisefab wishbone kit.

New Wisefab coilover top mounts.

New Feal cilovers.

New front wheel bearings.

BMW Z3 fast steering rack.



Rear Axle

Fully refurbished welded final drive with ration 3,45.

E36 M3 final drive output flanges.

E39 530D strong driveshafts.

New Wisefab wishbones.

New Wisefab spherical bearing for main rear wishbone.

New wheel bearings.

Ferrodo barke pads.

Slotted brake disks.

Rigid plastic axle mountings.

Rigid plastic final drive mountings.

New spherical wishbone bearings.

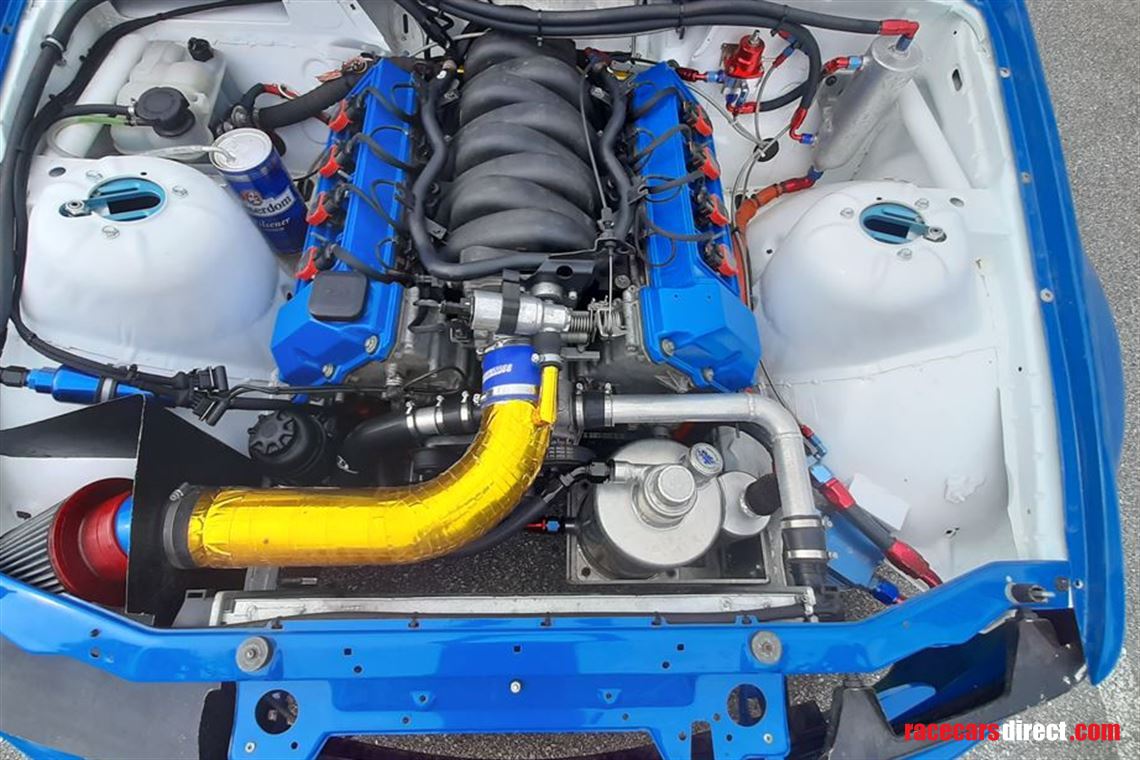

Engine

BMW E34 M60B40 engine 260kw.

Dry sump system.

MS3 ECU.

Audi red ignition coils.

Custom build new electrical system.

Mechanical fule pump.

Performance hydraulic steering pump.

Custom 4-1 exhaust manifolds.

AN fittings.

KN oil filter with external Torques filter mount.

Torques fuel filter.

New fule injectors.

Lightweight 40A generator.



Gearbox

E46 320D gearbox with welded clutch flage. All gearbox bearings are new.

Motul gearbox oil.

M5 E34 Sachs Performance cluch basket.

6 pad clutch disk.

Wisefab light flywheel.

E46 M3 light clutch slave cylinder.

E46 cardan shaft.

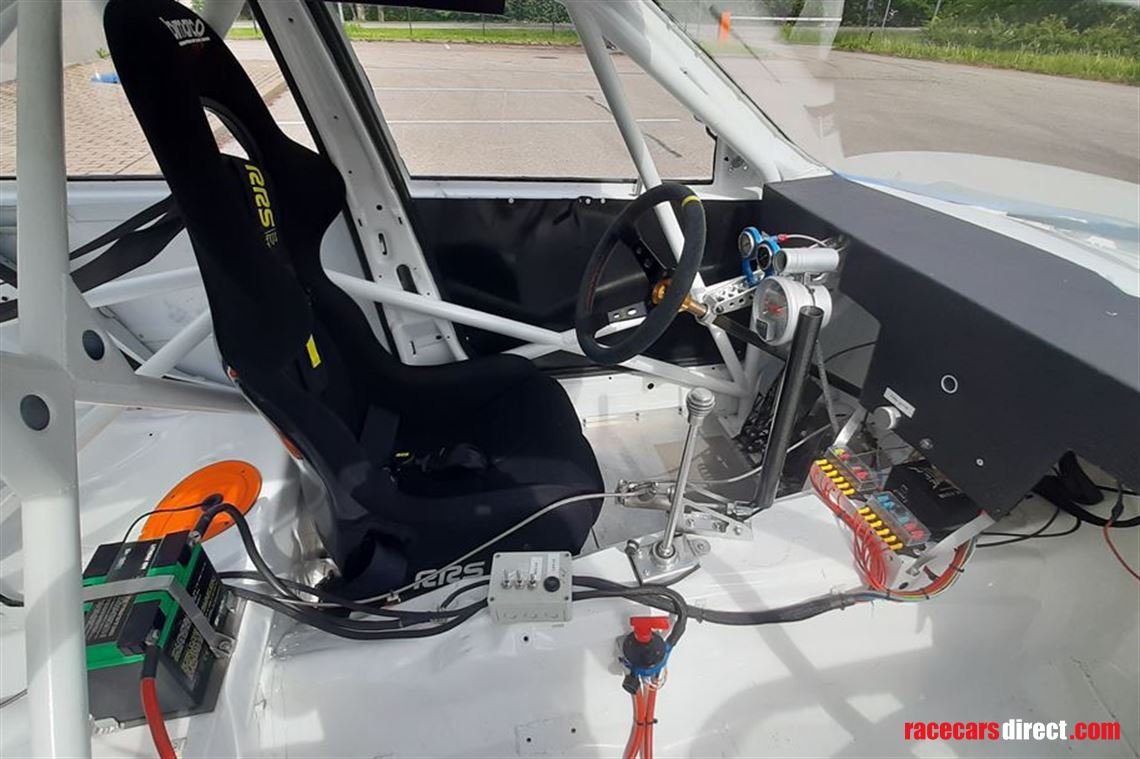

Interior

6 point RRS harness.

RRS steering wheel with quick relase.

Custom aluminium shifter.

Carbon handbrake.

Suvi pedalbox.

Lithium ION light battery 1,8kg.

PTFE braided brake hoses.








Video:

Keyword Search Terms:

BMW e36 V8 drift M60B40 Wisefab Feal

Details:

Seller: Arno11
Joined August 2022
  Arno Jürisson
Seller's other ads
Country: Estonia
City: Viljandi
Phone: 56608479
+37256608479
Currency: EUR
Condition Rebuilt
Trade or Private: Private
Price: €18,000
Added: 11/08/2022
Views: 2159

Share by Email
Print page
Report Sold
