Description:

GENERAL DESCRIPTION 1961 Turner Modsports car.

CHASSIS

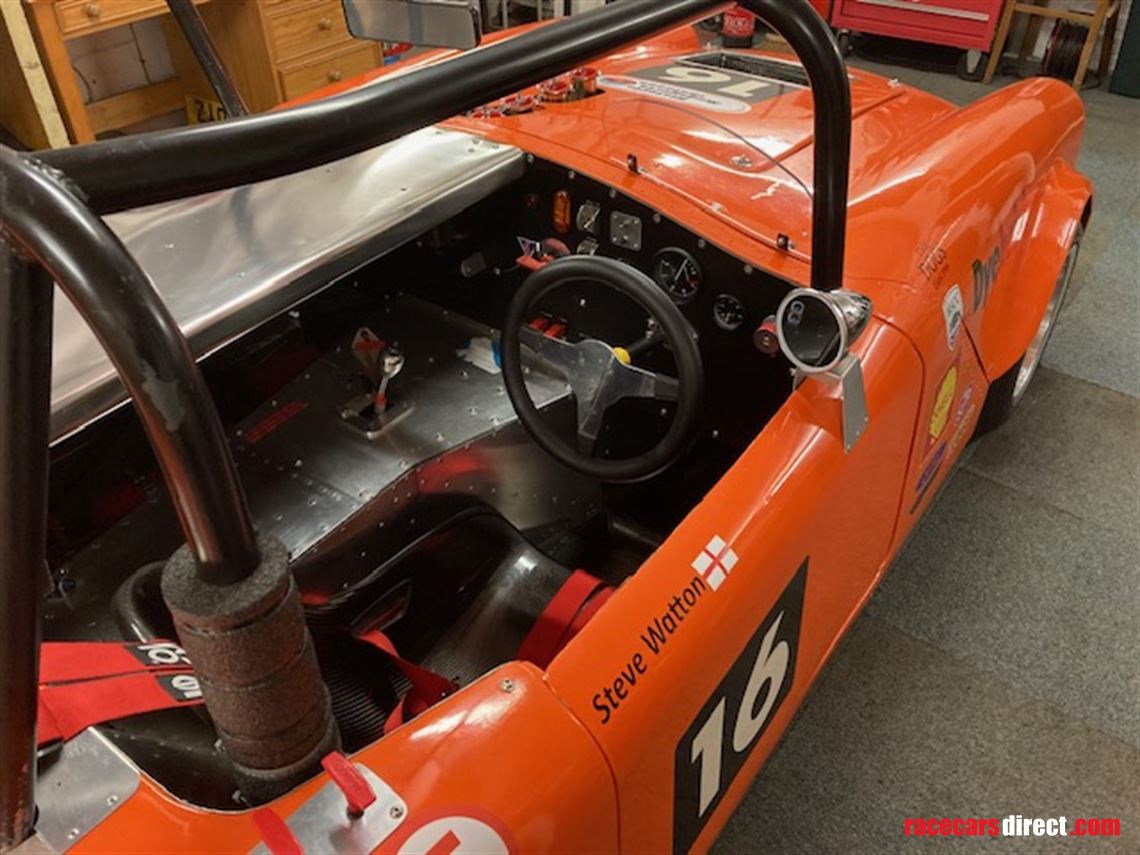

The original chassis had to be replaced due to previous crash damage and mediocre repair. A new chassis of the original Turner design was made by Robin Knight (his 17th such chassis) and a tubular space-frame was constructed on top of that, complete with a ‘full’ rollcage of 40mm cds tubing. A dashboard of 5mm aluminium is bolted to the dashbar and adds to the chassis rigidity. With the exception of removable panels above the gearbox all the 1.5mm aluminium panelling is stressed, glued and riveted to the space frame, as is the undertray.

BODYWORK

New lightweight fibreglass removable front bodywork attached by 6 dzus fasteners. Standard Turner aluminium-skinned fibreglass doors, rear end, engine cover and bootlid.

ENGINE
Cylinder block: Ford AX 711M block bored and linered to 86.75mm.
Crankshaft: Farndon steel crankshaft with a stroke of 84mm.
Resulting capacity of 1986cc.
Pistons: Custom made CP forged semi-slipper pistons.
Cylinder head: highly modified Holbay downdraught 105E pre-crossflow casting, using Paul Ivey valves – inlet valves 1.625”, exhaust valves 1.4” running in Colsibro bronze guides, with Kent Cams Cosworth springs, EN40 collets and caps. Compression ratio calculated at 12.75:1. Gasket used Cometic 0.040” 87mm.
Camshaft: Kent 264 ground onto a steel blank, timed at 103°. Vernier duplex timing chain.
Rocker shaft: Heavy duty thick wall shaft with steel pillars and spacing tubes. Rockers lightened and polished.
Conrods: 5.23” length, I beam steel, with ARP 2000 bolts.
Sump: Dry sump with Pace side-mounted 5 port. Oil tank in engine bay.
Flywheel: ‘Skeleton’ lightweight steel for 7.25” clutch plate. AP single plate clutch.
Oil system: Pace oil pump, remote spin-on filter and 13 row Mocal aluminium oil cooler. Cooling system: 3 row (70mm deep) aluminium radiator fitted to enclosed aluminium duct from front radiator opening and bonnet exit. Manually operated 9” electric fan. Fabricated swirl pot.
Induction: 2 x Weber 48 IDF carburettors on aluminium manifolds.
Exhaust: Custom 4 into 1 manifold with 1.625” primary pipes, 2.25” custom made stainless re-packable silencer.
Ignition: Modified Lucas distributor with H & H magnetic pickup and Flamethrower coil. Set for 31degrees maximum advance from 3500 rpm upwards.

SUSPENSION
Front: Triumph Vitesse uprights. Custom tubular wishbones fully adjustable for camber & caster via 7/16” rod ends. Aluminium front hubs. 1 season old double-adjustable coil- over dampers fitted, built to suit the 375 lbs/in spring rate.
9/16” anti-roll bar with rose-jointed drop links.

Rear: Ford Anglia ‘English’ axle with Quaife heavy duty half shafts, new hubs etc. Lower and upper tubular radius rods with l/hand and r/hand 7/16” rod ends. Lateral location by sliding joint in 7/8” rose joint. 1 season old double-adjustable coil over dampers with 180 lbs/in springs. 5/8” anti-roll bar with rose jointed drop links.

TRANSMISSION
Gearbox: Ford ‘2000E’ gearbox with aluminium casing and bellhousing and short tailhousing Quaife dog box.
Gear ratios: 1st: 2.25:1. 2nd: 1.660:1. 3rd: 1.220:1. 4th: 1:1.
Final drive: English axle casing with 3.9:1 ratio and plate type LSD.
Custom propshaft with new universal joints.
Clutch slave: Concentric slave cylinder with remote bleed facility in engine bay. Aeroquip hose to and from slave cylinder.

ELECTRICS
Lighting/wiring: Rear tail and brake lights in Turner fittings, plus LED ‘rain’ light. FIA approved cut out switch. 8 fuse box.
Battery: Odyssey dry cell battery fitted in the passenger space.
Generator: Small lightweight WOSP alternator.
Instruments: 0-8000 rev counter, oil pressure gauge, oil temperature gauge, water temperature gauge, high visibility LED oil pressure warning light, charge light. Starter motor: High torque WOS geared starter motor.

BRAKES
Front: Twin reservoir bias pedal box. Triumph 245mm diameter ventilated discs and 4 pot calipers with aeroquip hoses.
Rear: 2 pot disc brake conversion with aluminium calipers; aeroquip hoses.
Brake pipes: Kunifer throughout.

STEERING
Rack: Triumph Vitesse, modified as per the original Turner design. Alloy mounting blocks. Bump steer 0.0” toe-in on 2” bump, 0.022” toe-in on 2” droop.

WHEELS

Lightweight Revolution 8” front, 10” rear on Avon A11 slicks. Minilight 8” front, 10” rear on Avon wets.

WEIGHT 585 kgs with water, oils and 20 litres of fuel.

FUEL TANK/SYSTEM

Custom-built 30 litre aluminium tank with foam filling to comply with FIA regulations. Red top fuel pump with FilterKing pressure regulator/filter.

SILENCING

Custom made stainless steel silencer.

HISTORY

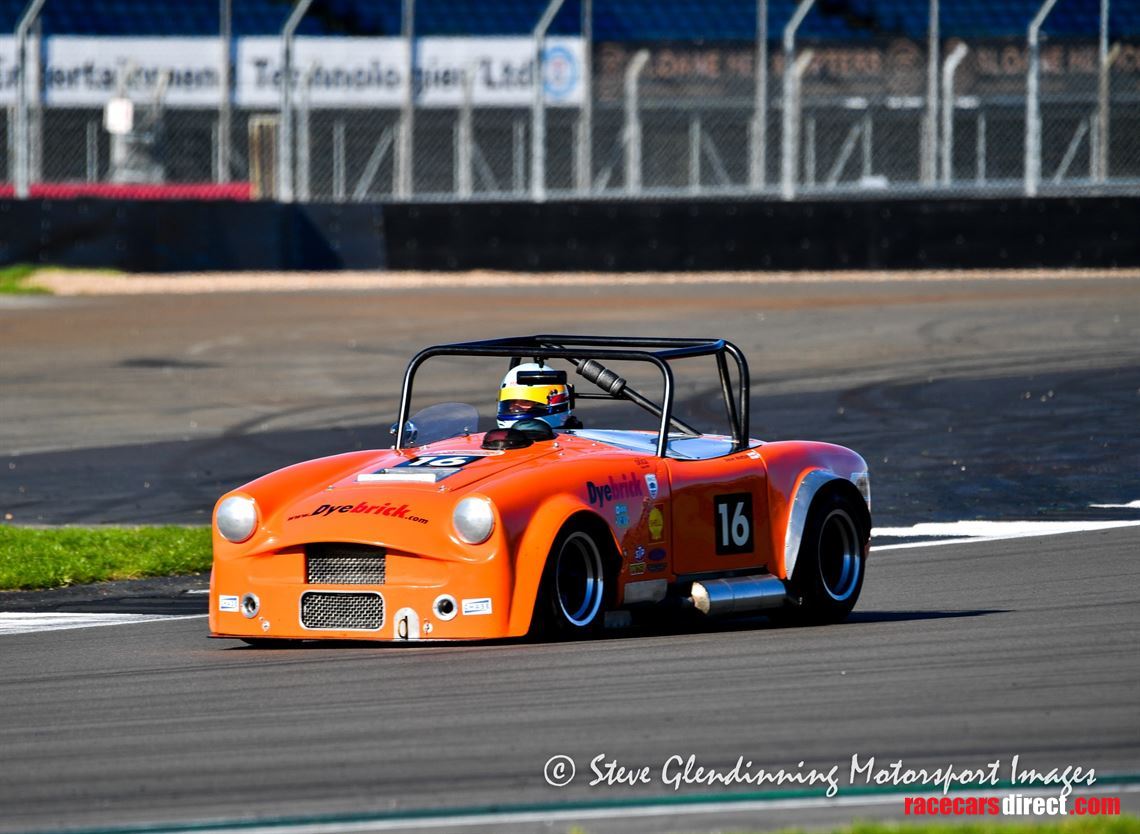

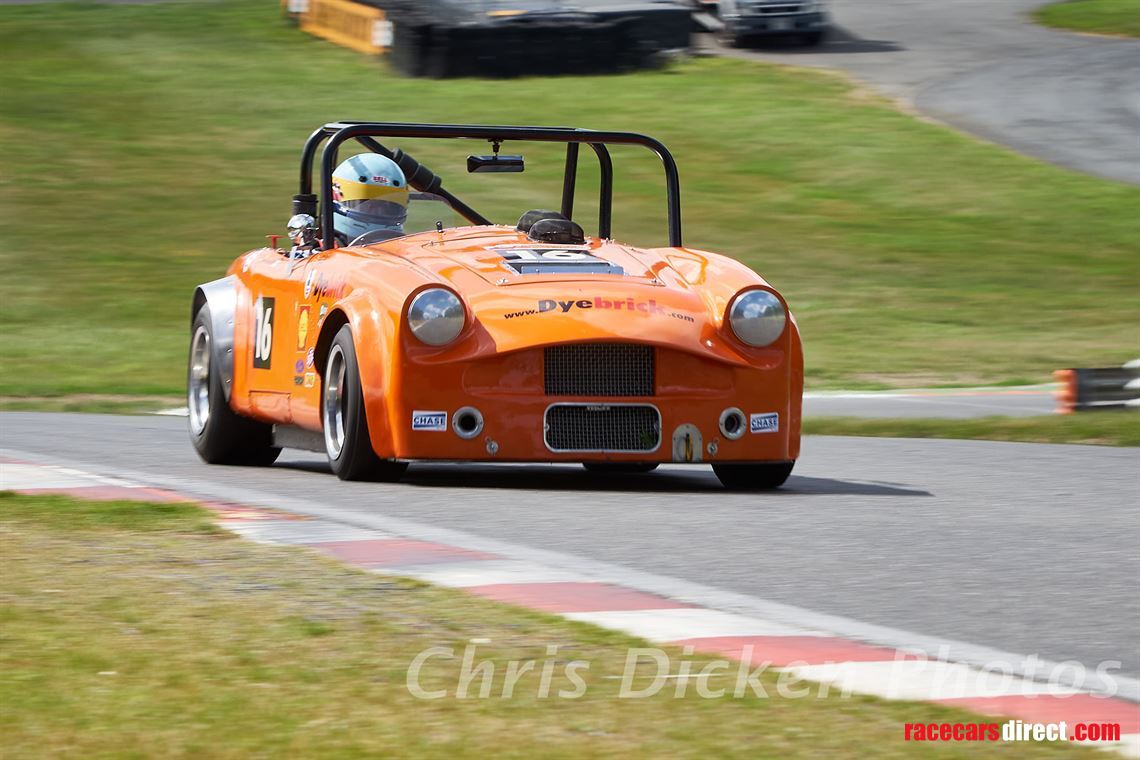

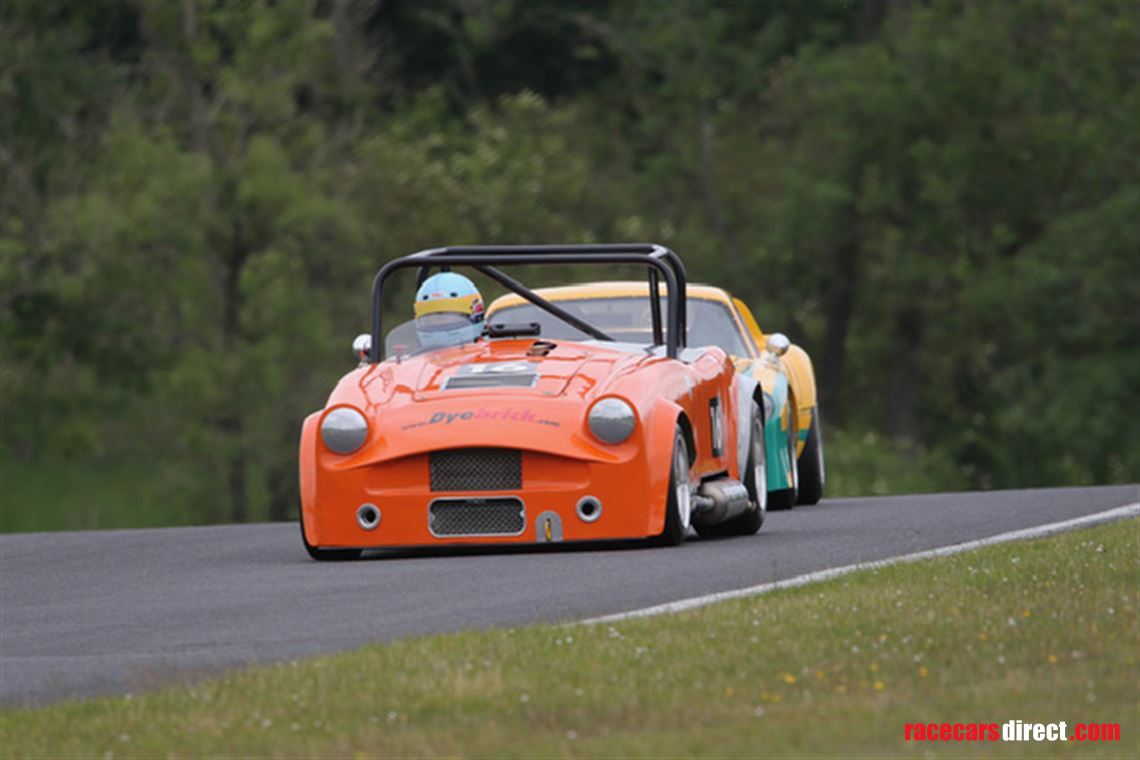

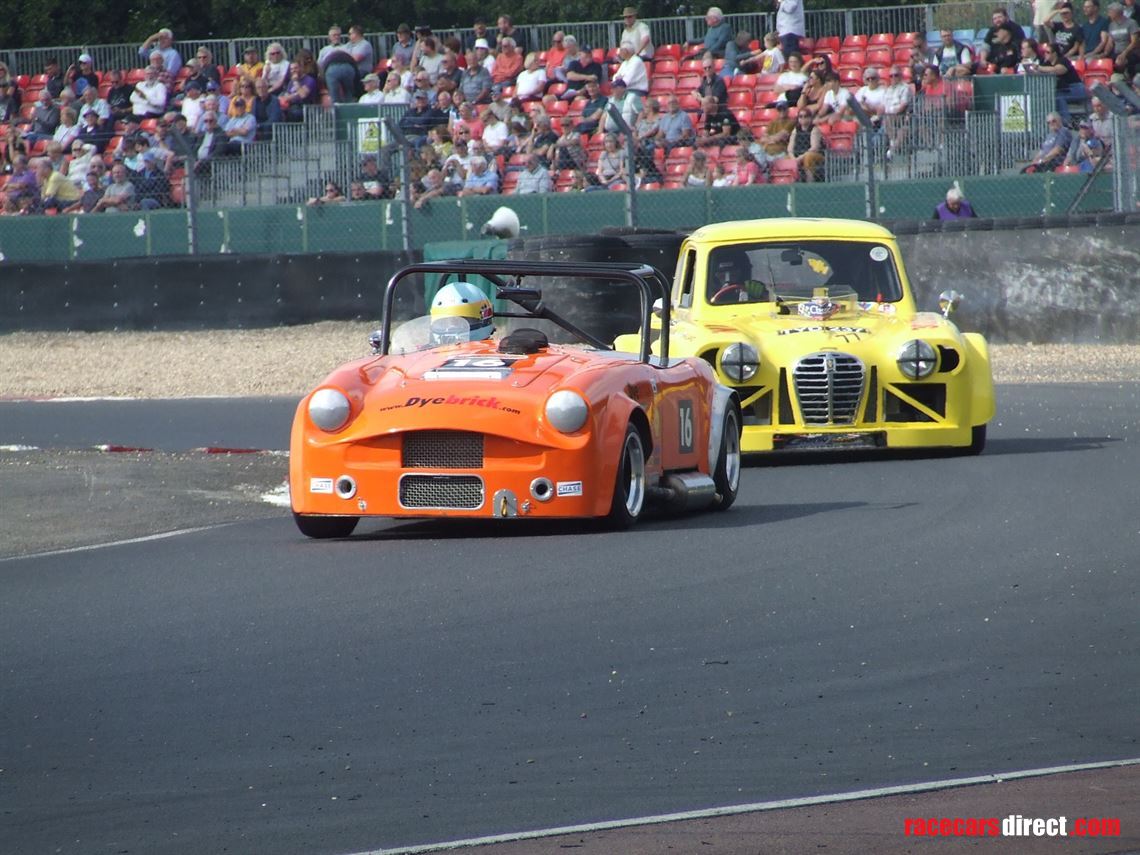

Has been a Modsports car since early 70's seeing lots of success as a Shelsley Walsh, Prescott, Loton Park regular.  Changed to circuit spec 4 years ago.  Last season was a class winner, outright podium 3 times.  Fantastic handling, very safe and stable, class front runner and capable of giving much more powerful cars a run for their money.  Croft 1.35.  Silv Nat 1.05.

Easy to revert to hillclimb car.  Had an invite this year to the Shelsley Nostalgia meeting.

For sale due to the fact that I now have 2 cars for racing in the same race, and I can only drive one at a time.
