Description:

Hartley H1v8 Max Hayabusa V8 engine package, built by RLM racing. Purchased as part of a prototype build, never run on track. Now being replaced by a custom power unit, so begrudgingly willing to let it go!

Engine Specs:

Bore 81mm Stroke 70mm

Compression c.10.4

Intake Valve 33mm

Exh Valve 27.5mm

Basic Package as you would get from John, then built up and with the additional throttle bodies GBP 50,000 for this set up

Engine as provided by John Hayabusa heads and built by RLM

no injectors, coils, plugs, coolers, filters, exhaust

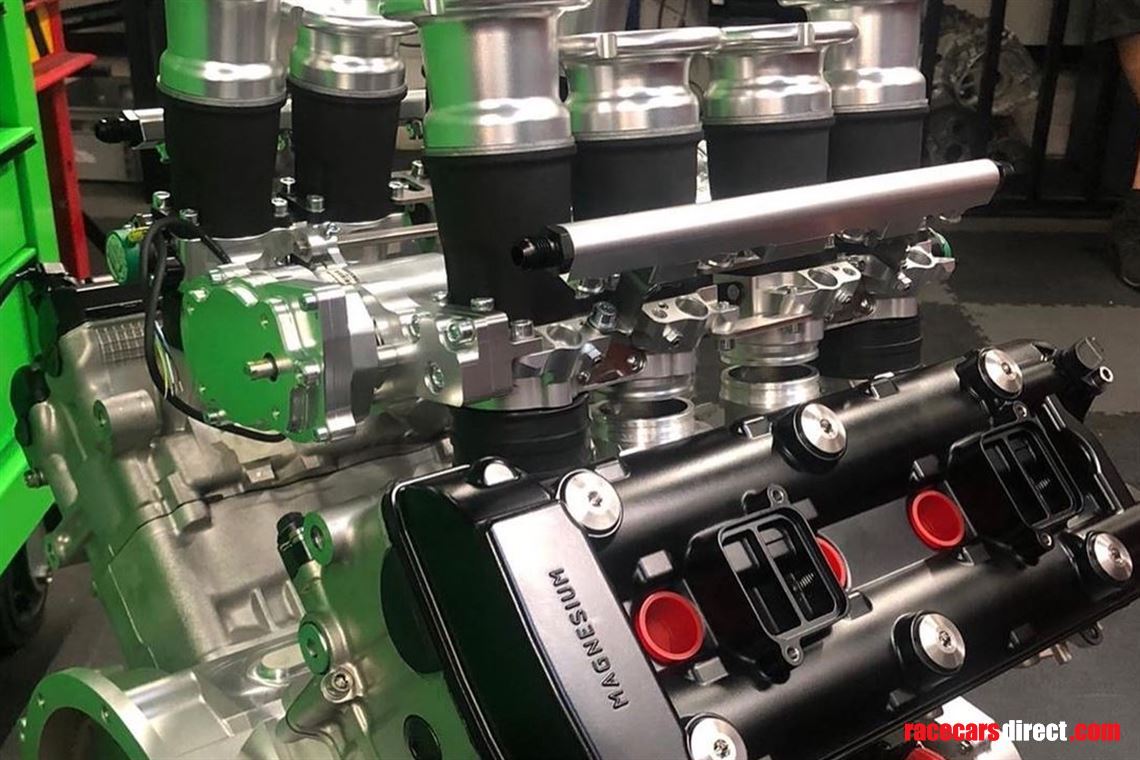

AT Power DBW throttle bodies - 45mm throat, 70mm stack extensions Tilton 2 plate clutch

Engine with Extras below GBP85,000 for this set up

Engine and ITBs as above

8x ID1300x Injector Dynamics injectors

8x NGK plugs

I only have my modified coils, so best to order a fresh set of those

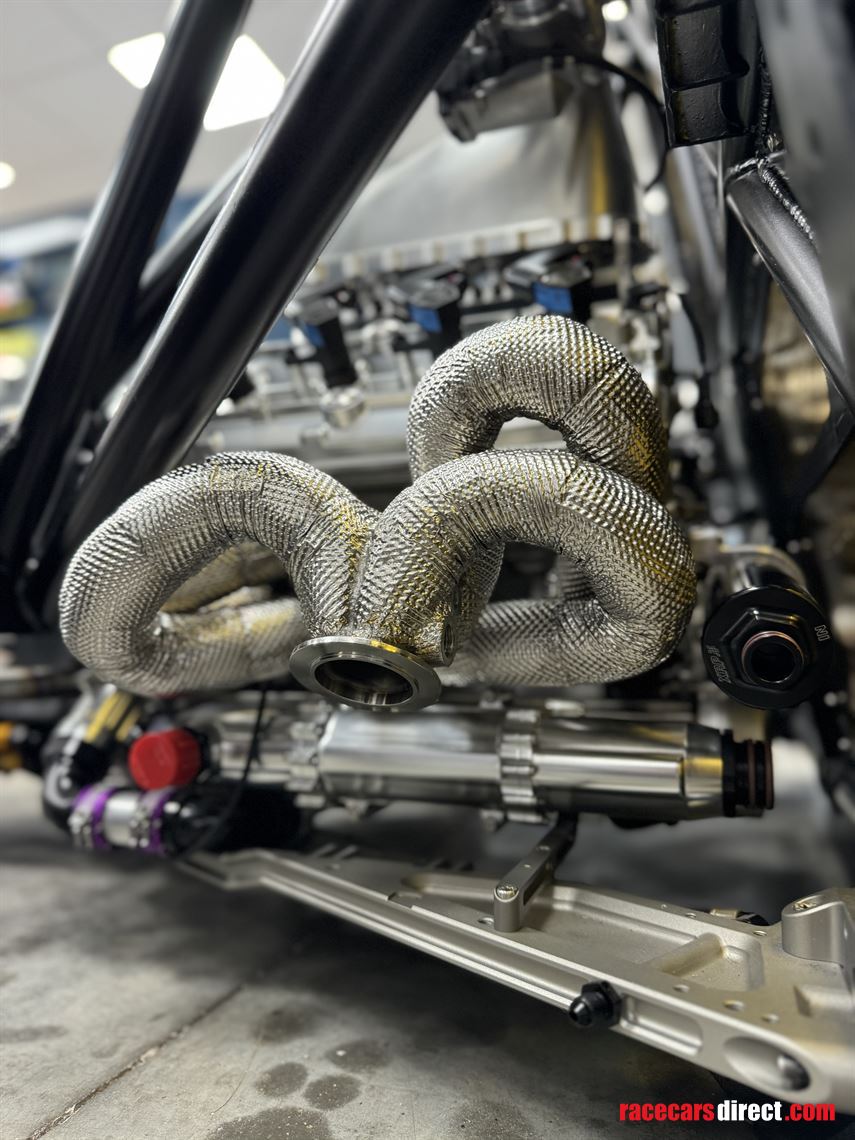

Inconel exhaust primaries with insulation and EGT ports, Pressure port and Lambda Port

2x symmetrical Xona tubos - X2CR compressor, 4653 Turbine

note, supplied with AT butterfly throttle bodies, not the machined intake manifold setup.

collection from London, UK

feel free to send through questions etc.

Keyword Search Terms:

Hayabusa, v8, engine, turbo
