Description:

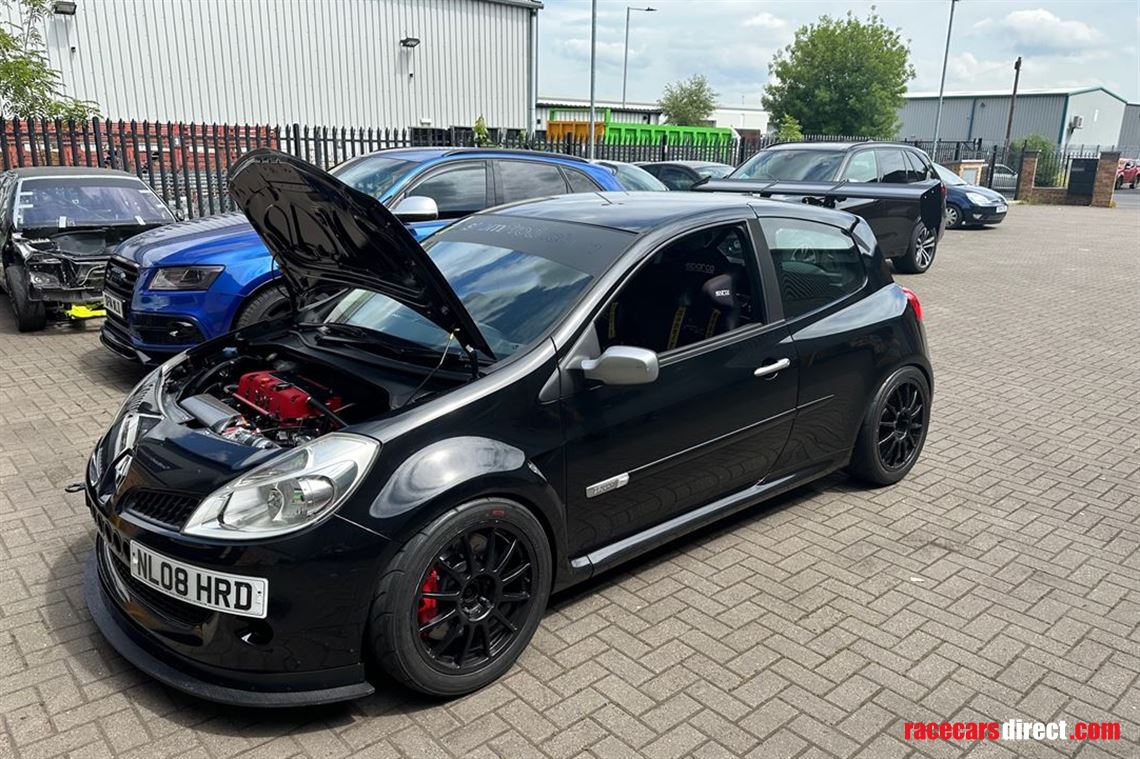

Renault sport Clio 197 1 of 1 K24 Supercharged  600bhp

Colour: Deep Black
Year: 2008 (08 Plate )
MOT: None
Current Mileage: 89,000m
Very large build from shell up
Honda K24A  ( Mapped 5/ 588 Bhp ) J-Cal
Rotrex-R Hybrid Supercharger running 1.6 BAR of Boost
Quaife 5sp Sequential Gearbox with plated diff

Electronic Paddles with compressed Air gear shift system

Nitron R3 Coilovers
Cup Racer Set-up

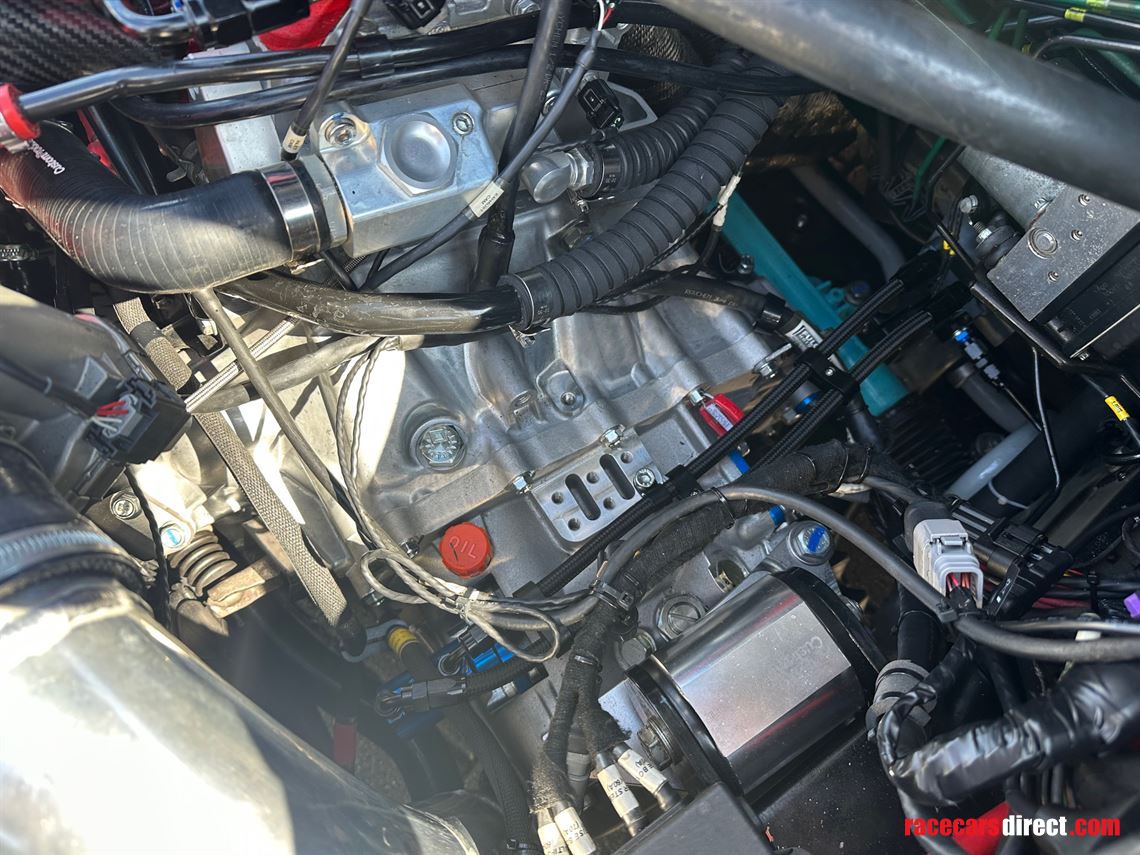

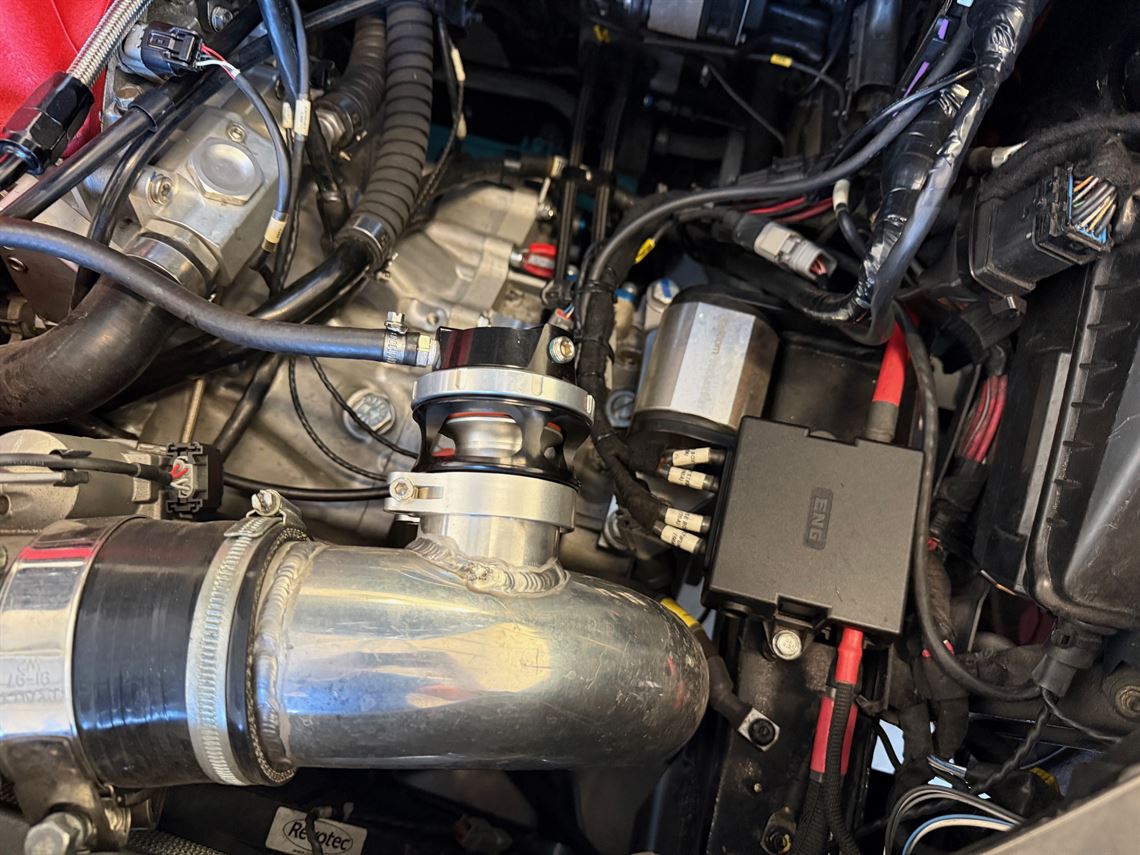

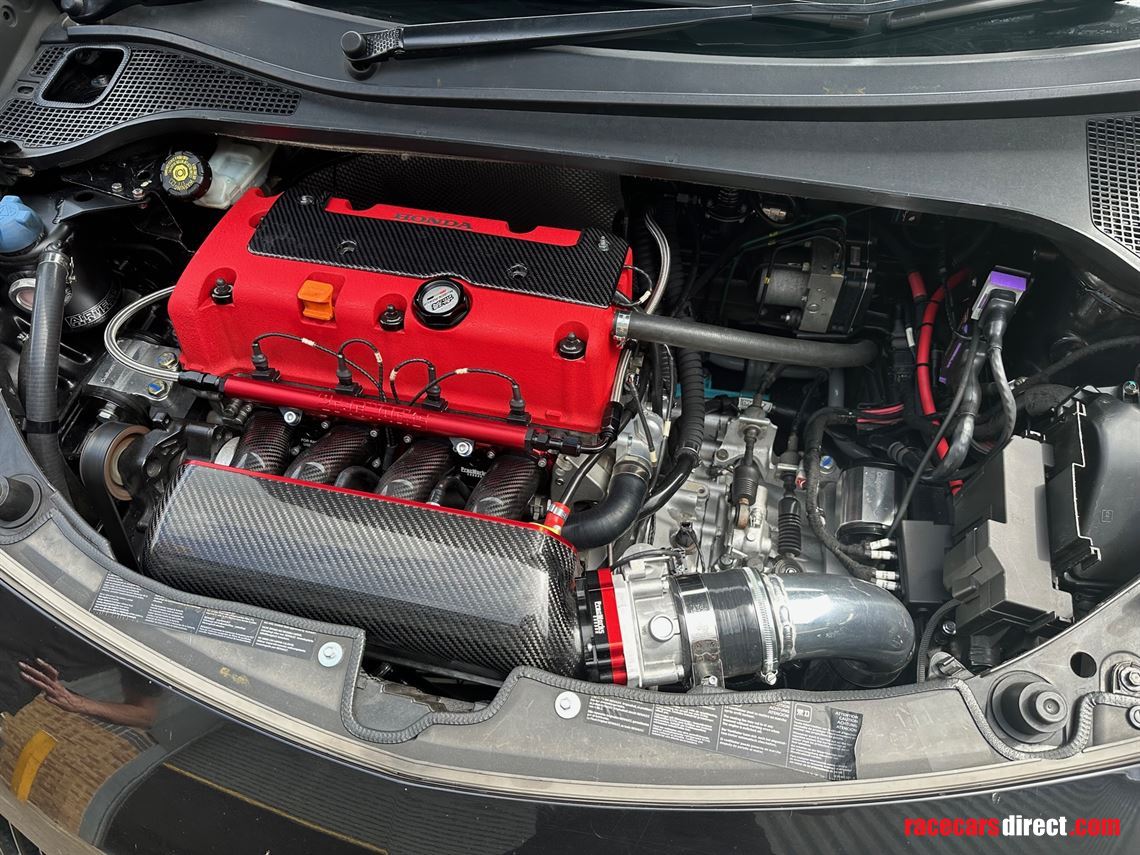

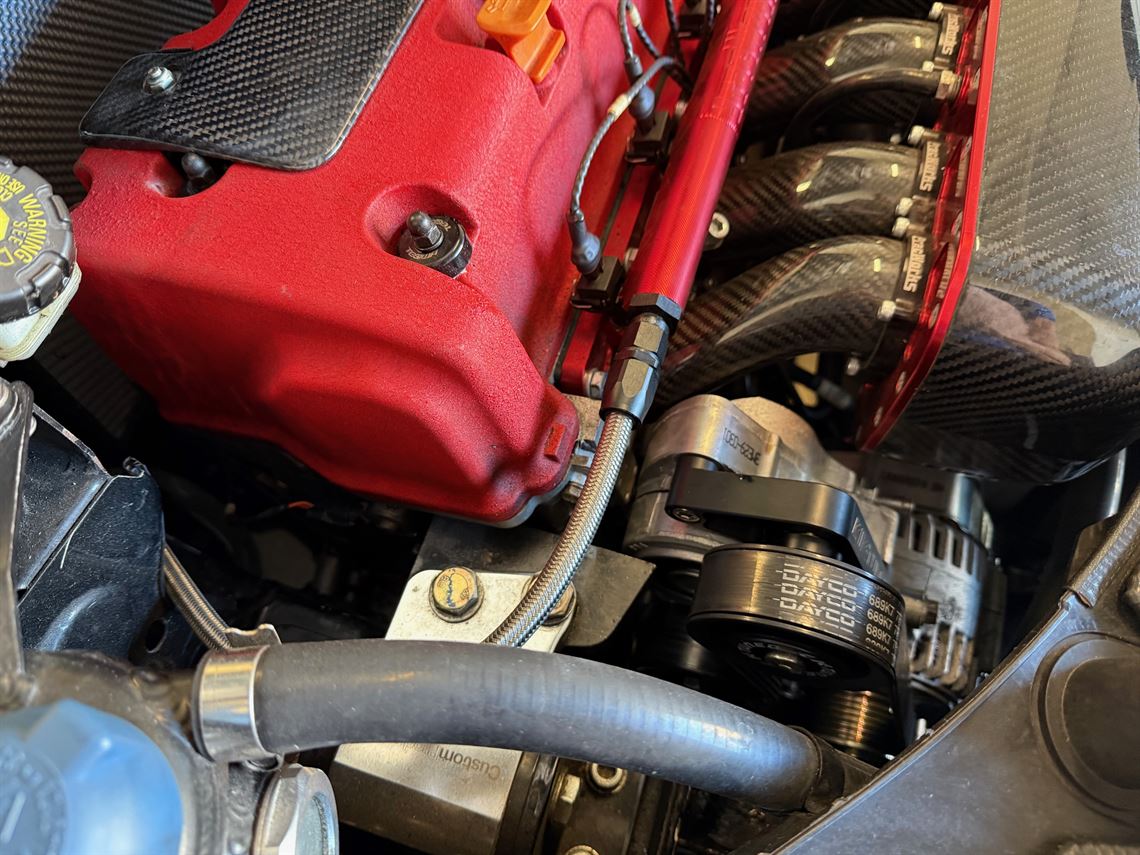

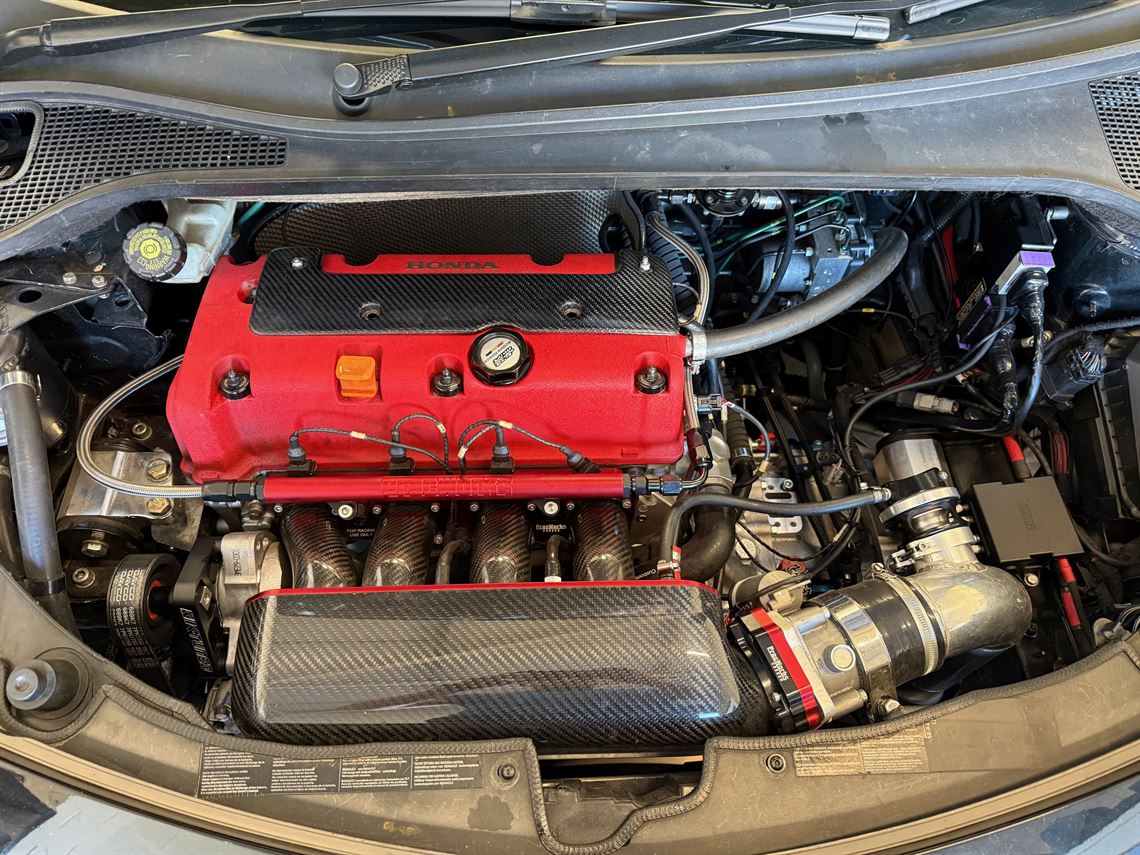

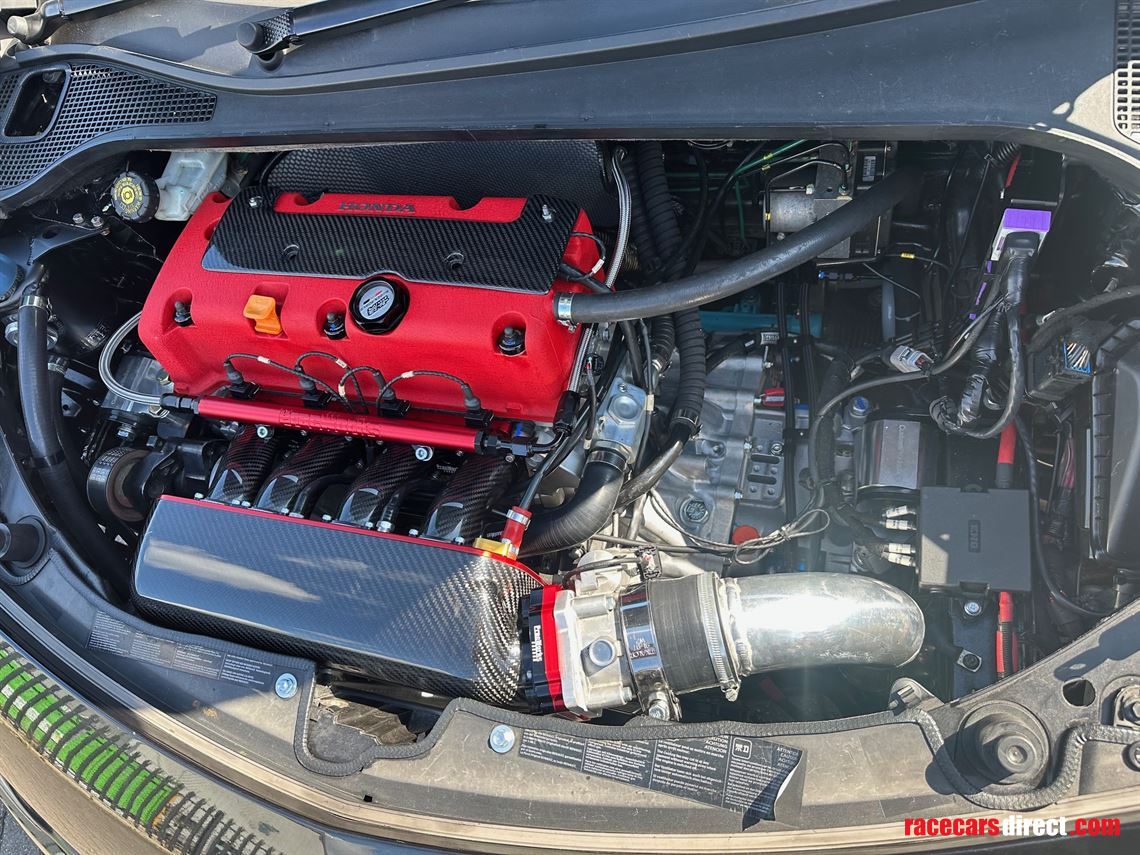

ENGINE / ENGINE BAY
Honda K24A JDM Fully Forged engine:

King Big+Main Racing Bearings

Forged H-Beam Eagle Con-Rods

Forged Wisco Racing Pistons

New timing chain & rails
New Honda rocker cover ( Crinkle Red )
Mugen oil cap
Tegiwa carbon rocker cover fasteners
Carbon plug cover
Pracworks carbon inlet manifold
Bosch 80mm throttle body
Custom Production Bosch DBW throttle adapter plate kit
New genuine crank pulley & bolt
New aux belt and tensioner
New plugs/coil packs - stud & nut conversion
Fuchs 10w50 fully synthetic racing oil
Oil pressure gauge sensor - linked to ECU
Bosch 1000cc injectors
Sytec rising  rate fuel pressure regulator
Stainless steel/Teflon -6 braided fuel lines plus An fitting
Ecu Master Fuel pressure sensor
Custom 4-2-1 race exhaust manifold / Fully heat wrapped
All new gaskets, studs and nuts
Reconditioned Rotrex C38 w larger main shaft - 95mm pulley
Stainless steel/Teflon braided supercharger oil lines
Rotrex supercharger oil filter
Custom 3” alloy boost pipes
All new boost hoses
90mm hybrid Intercooler
Custom  Setrab 16 row oil cooler kit
All new AN fittings and lines

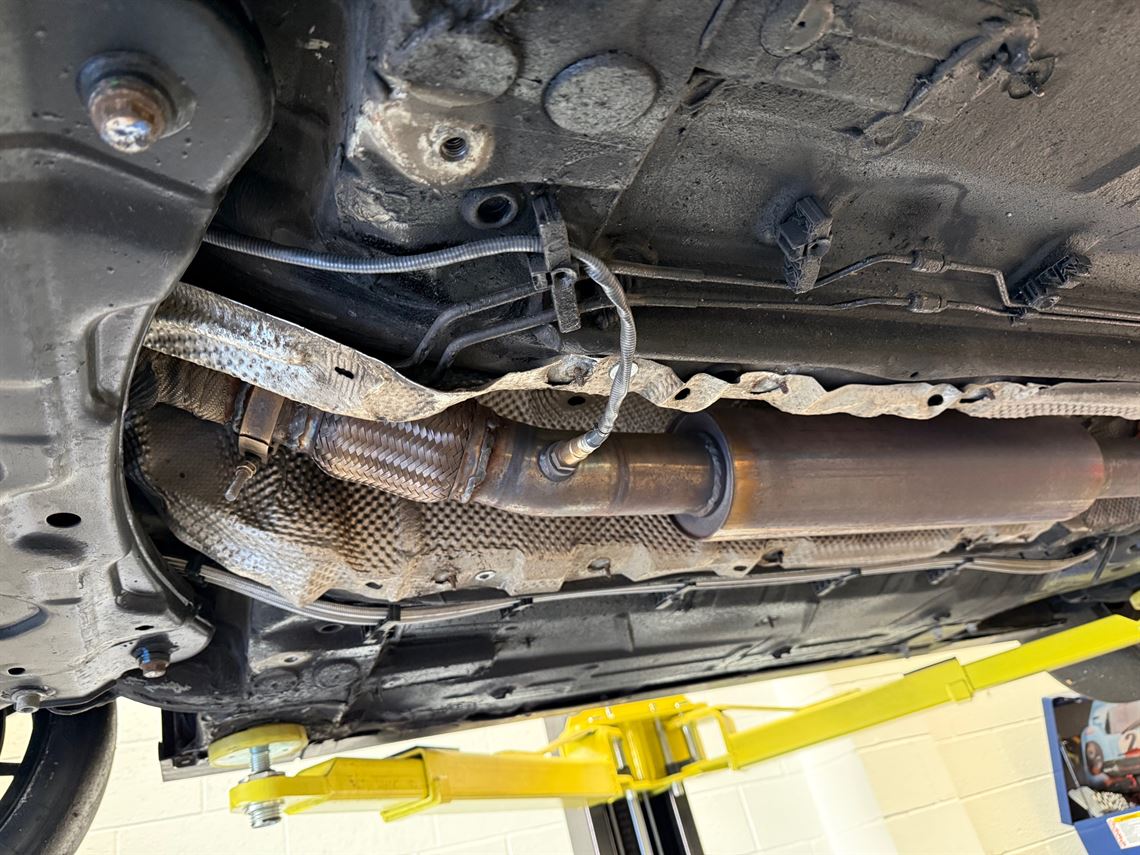

New 3” Custom Production twin silencer exhaust system
V-band flanges
Twin AEM high pressure fuel pumps in tank / surge tank
Tegiwa fuel cell
New steel dipstick
New Airtec coolant header tank
Custom Production silicone coolant hoses
New race low temp coolant
Custom Production Clio mk3 engine swap kit
Custom Production/Fulcrum motorsport Race Engine harness
Ecu Master Emu black

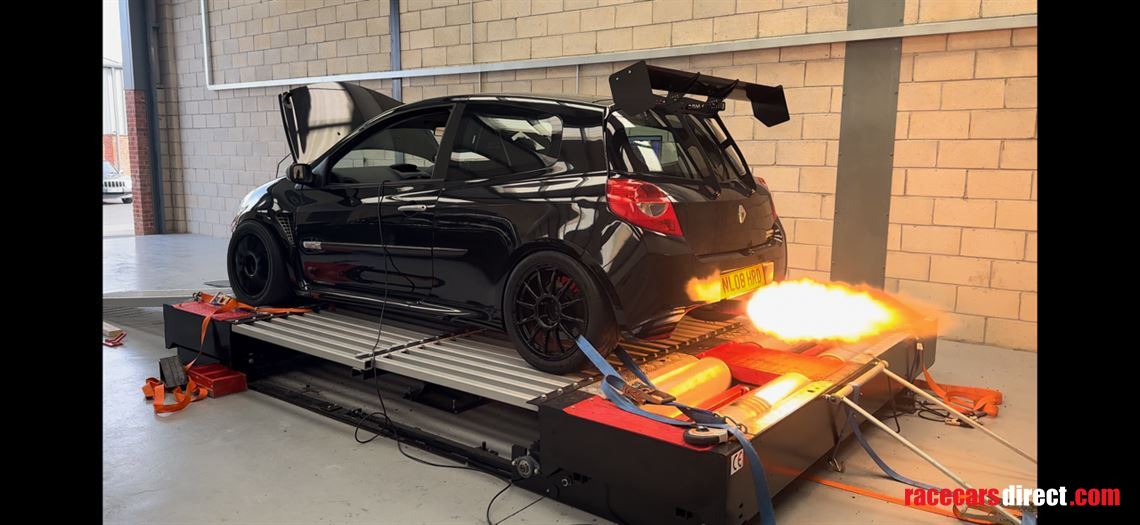

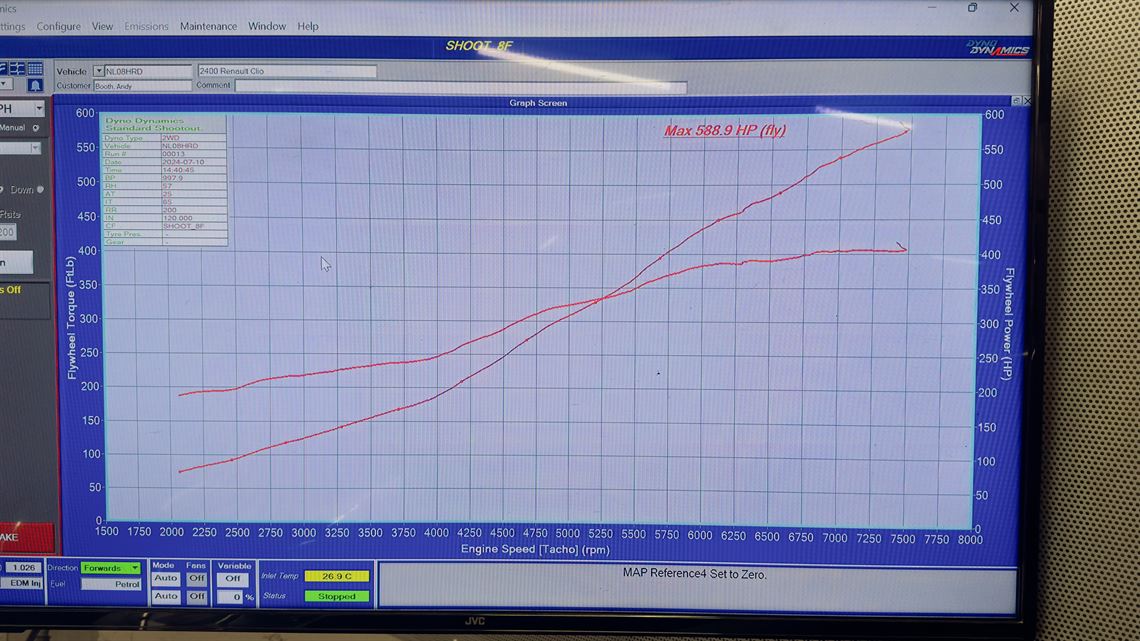

Mapped to 500/360llb flywheel horsepower by J-Cal
Mapped on V-power fuel

DRIVETRAIN
Quaife 5sp Sequential Gearbox

Plated Quaife Differential

Pneumatic Air Gear Selectors

Electronic Paddle Shifter

Air Compressor and catchment tank

Geartronics GCU3 with custom Wiring Harness
RTS performance clutch kit
Honda slave cylinder
Braided clutch line
Custom Production  K-Swap forged  drive shafts
Renault outter CV joints
New Honda inner CV joints
Refinished Honda half shaft
Motul RBF660 race clutch fluid

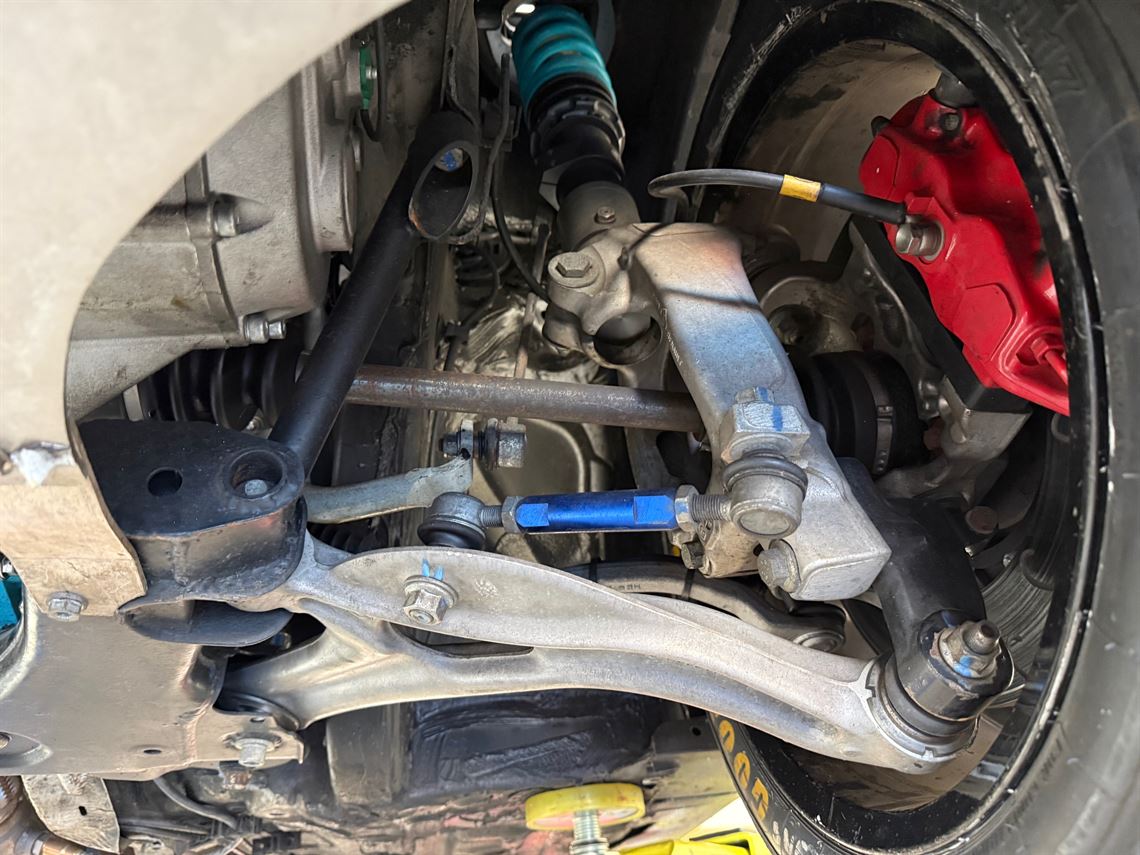

SUSPENSION

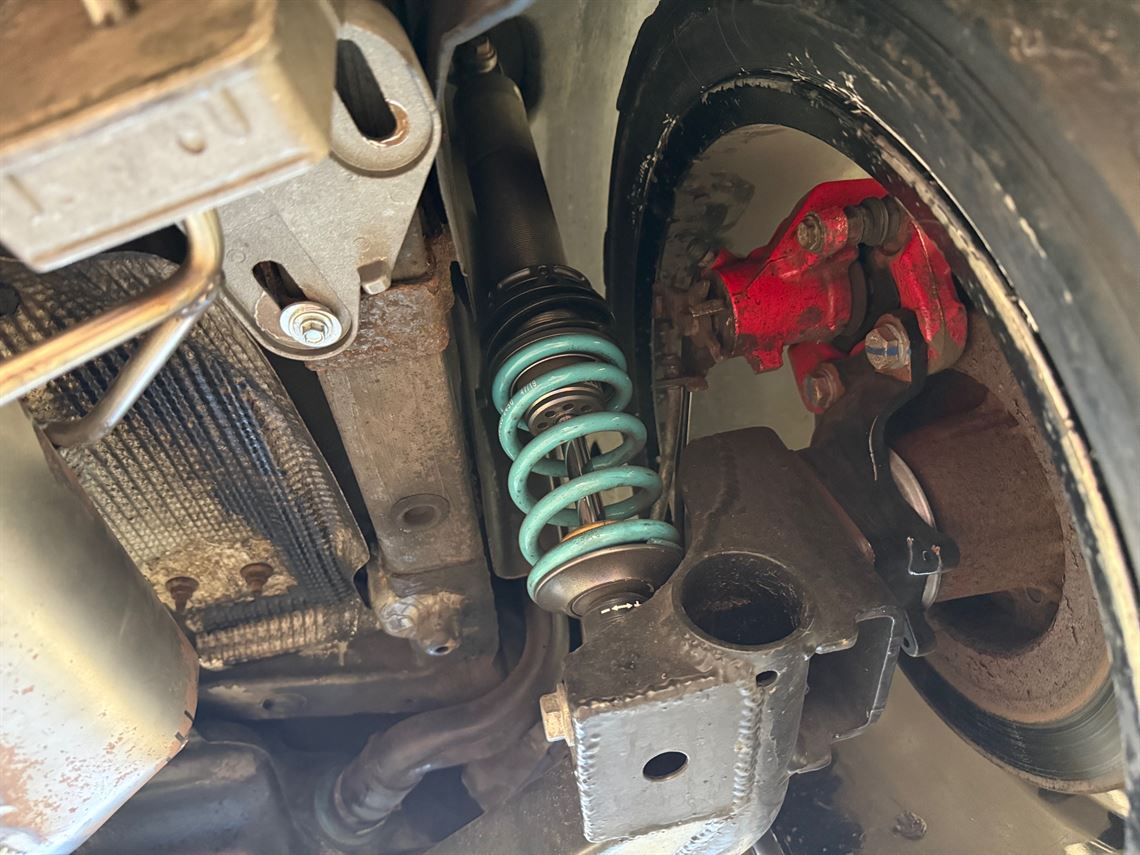

Brand new Nitron R3 coil overs
Nitron Adjustable top mount plates
Track spec spring rates
New Rose joint adjustable anti-roll bar links
Supreme Motorsport quick rack
New inner rack joints
New track rod ends
Super-Pro rose jointed adjustable rotation links
Hub carriers alloy cleaned
Hubs done black
New Uprated top & bottom ball joints
New lower alloy suspension arms
Spherical bearings fitted to lower arms
Cup racer EE brackets
Pure-Motorsport strengthened rear beam
New Clio stubs & hubs
Rear camber shims
Modified Renault kangoo sub frame ( offers better roll centre )
Geo -4.0 camber front
         -3.0 camber rear
           Custom toe out 10min per side front
           Neutral rear toe
           Custom caster



BRAKES

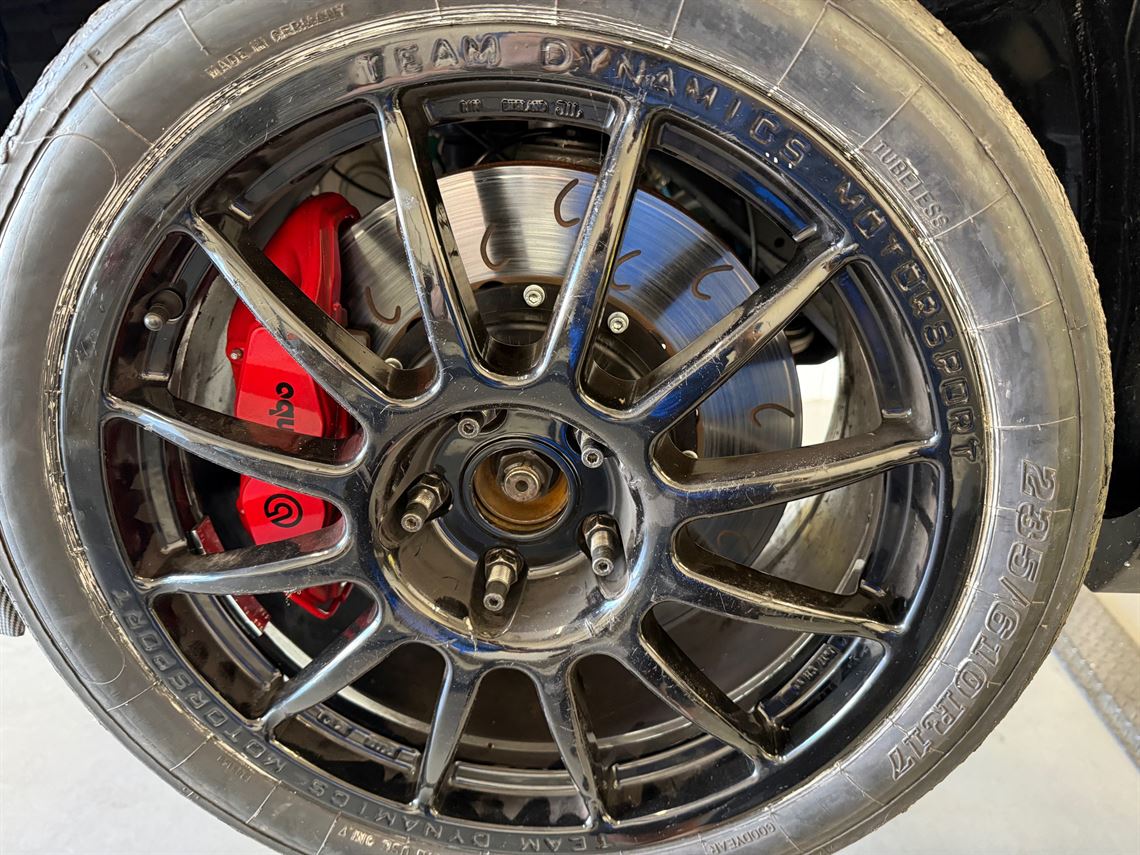

New Megane MK3 Front Brembo 4 piston calipers
New brake carrier bolts
New Godspeed 340mm 2 piece race kit
RC6 Race pads front
New brake pin kit
PBS Race pads rear
Braided lines (All)
Renault solid rear discs
Motul RBF660 race fluid

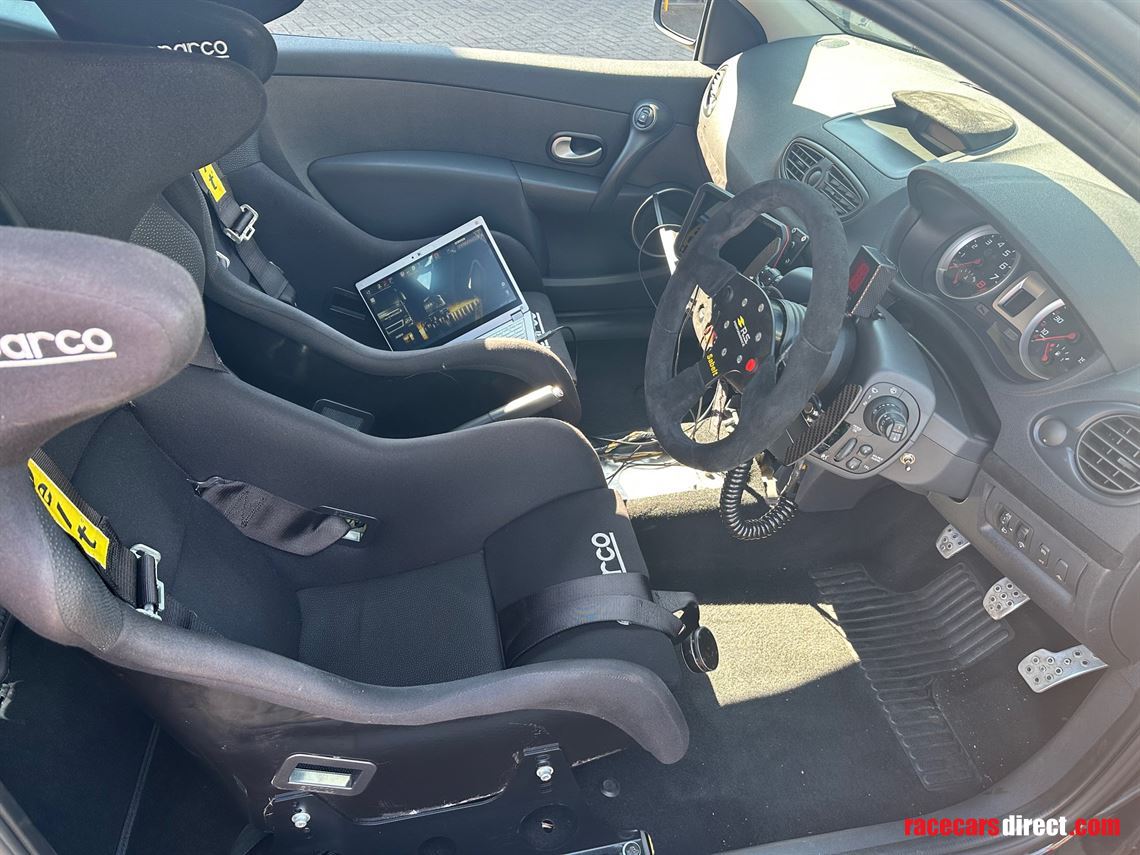

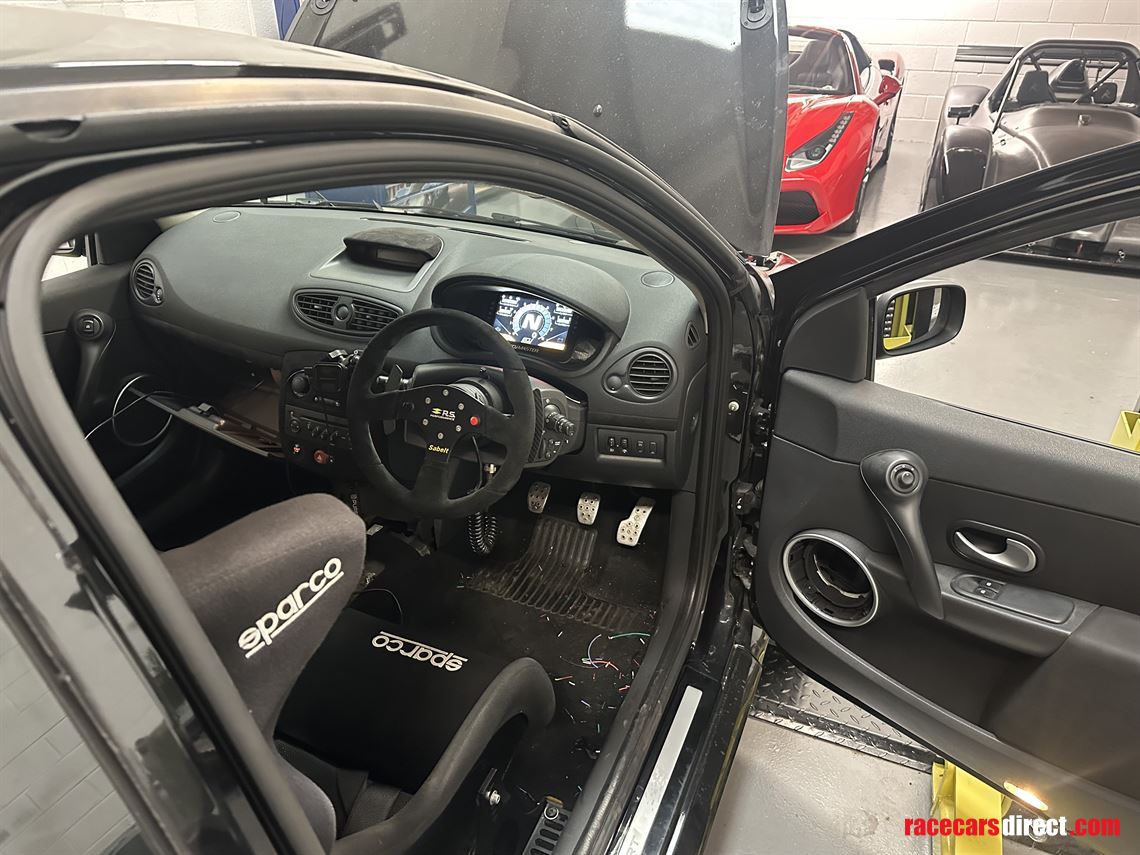

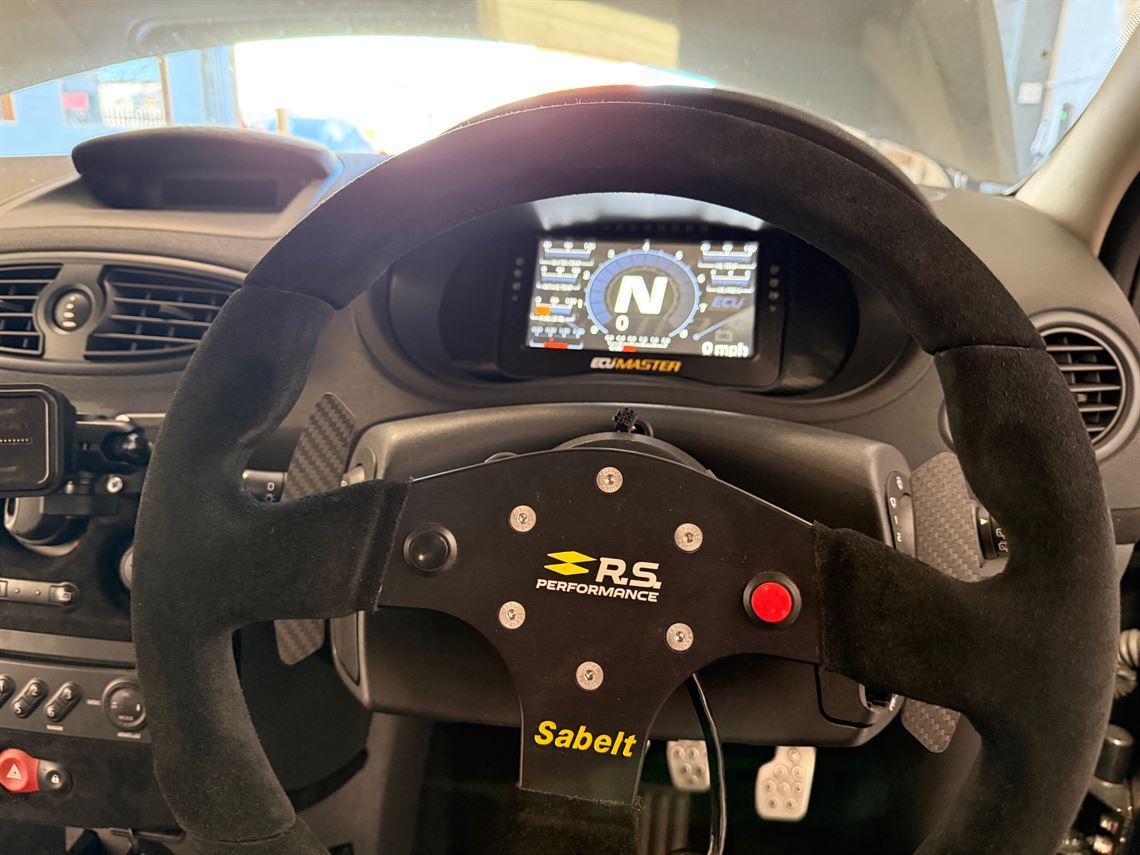

INTERIOR

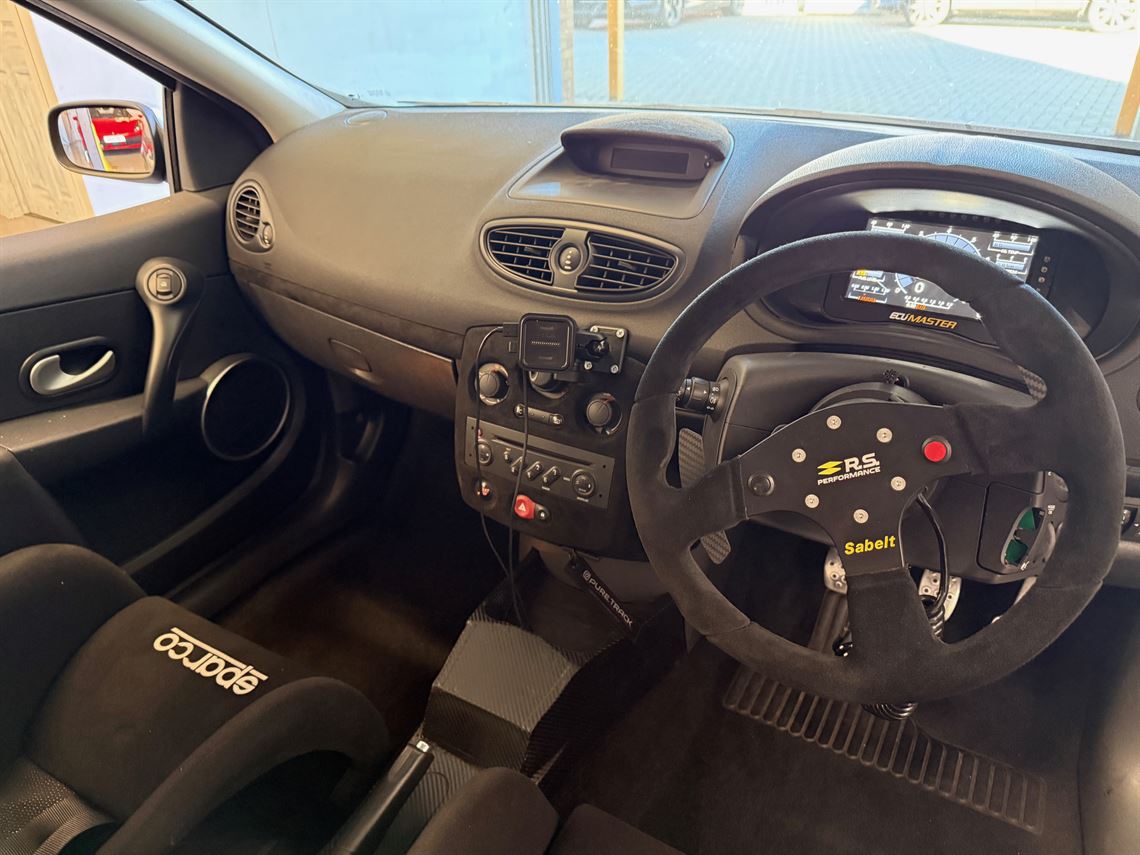

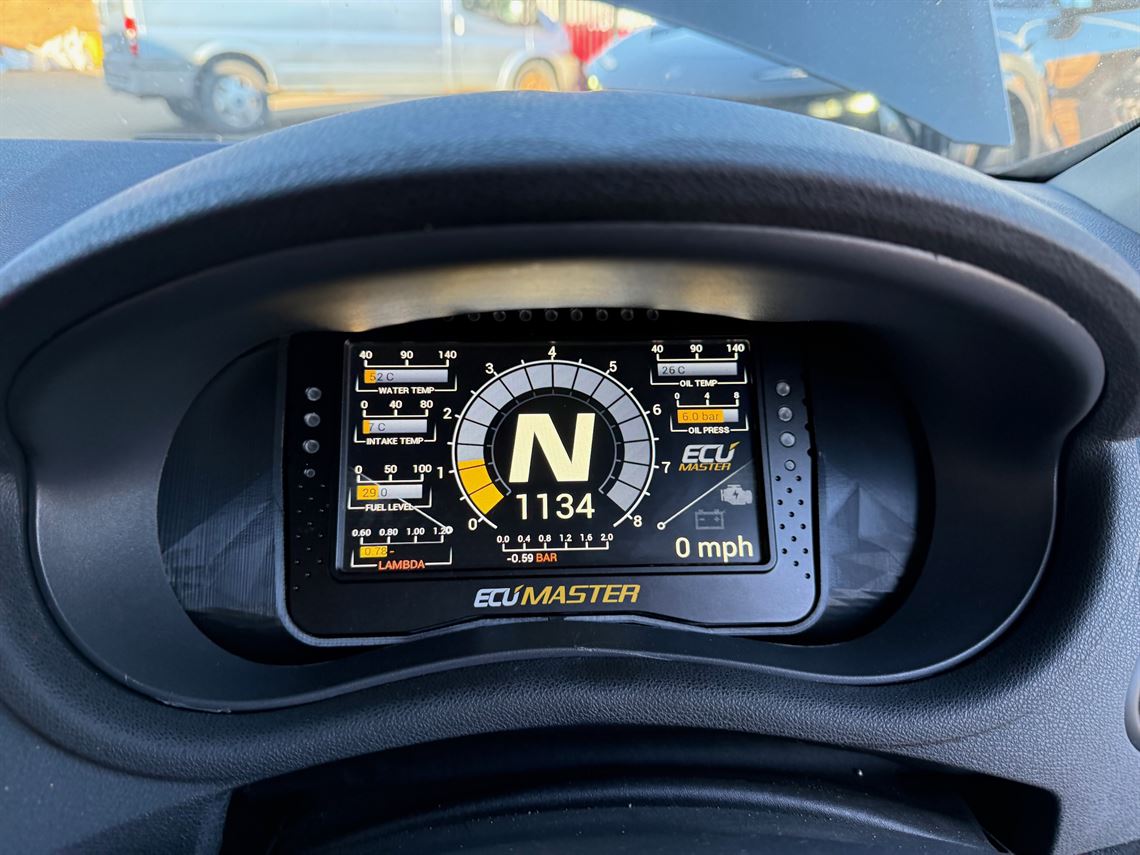

ECUMASTER Digital Dash connected to ECU for full data

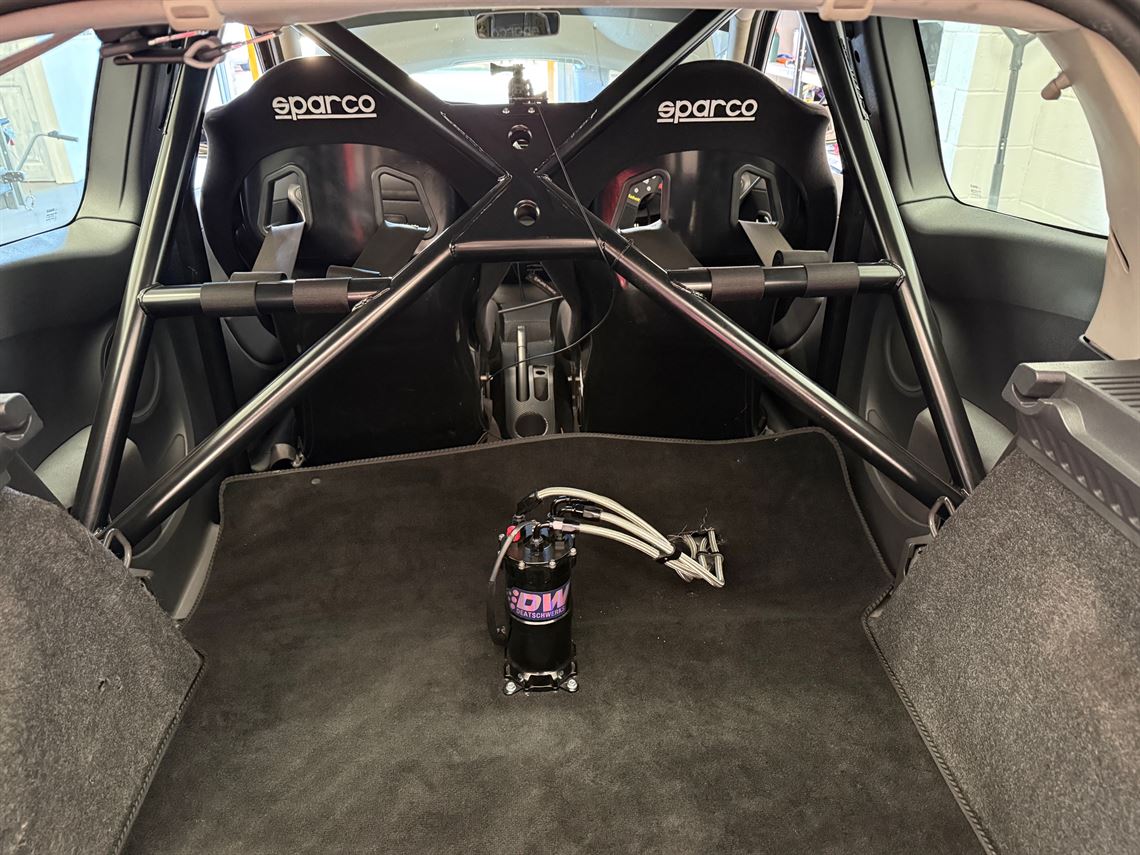

Sw motorsport 1/2 cage ( extra supports )
Go-Pro mount fastened to cage
Ktec black boot carpet ( cut round cage )

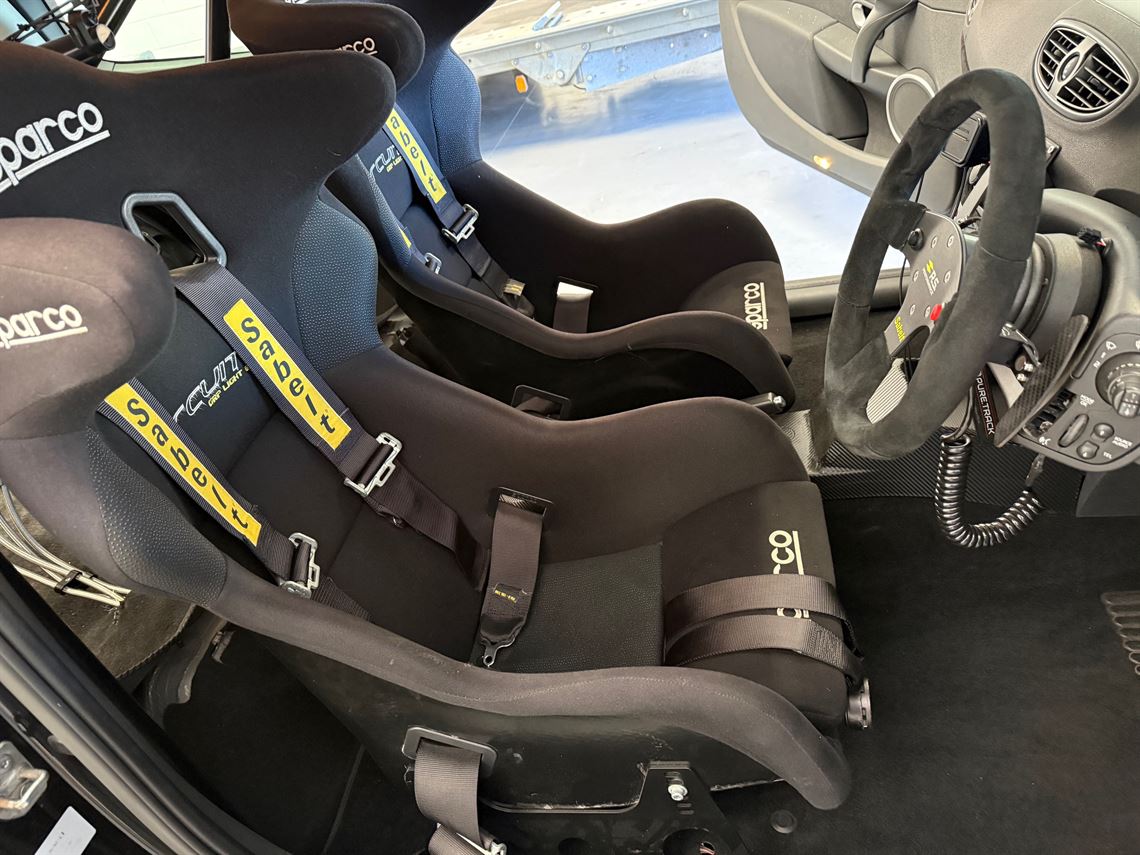

Sparco circuit GRP lightweight bucket seats
Sabelt 3” black 6 point race harness

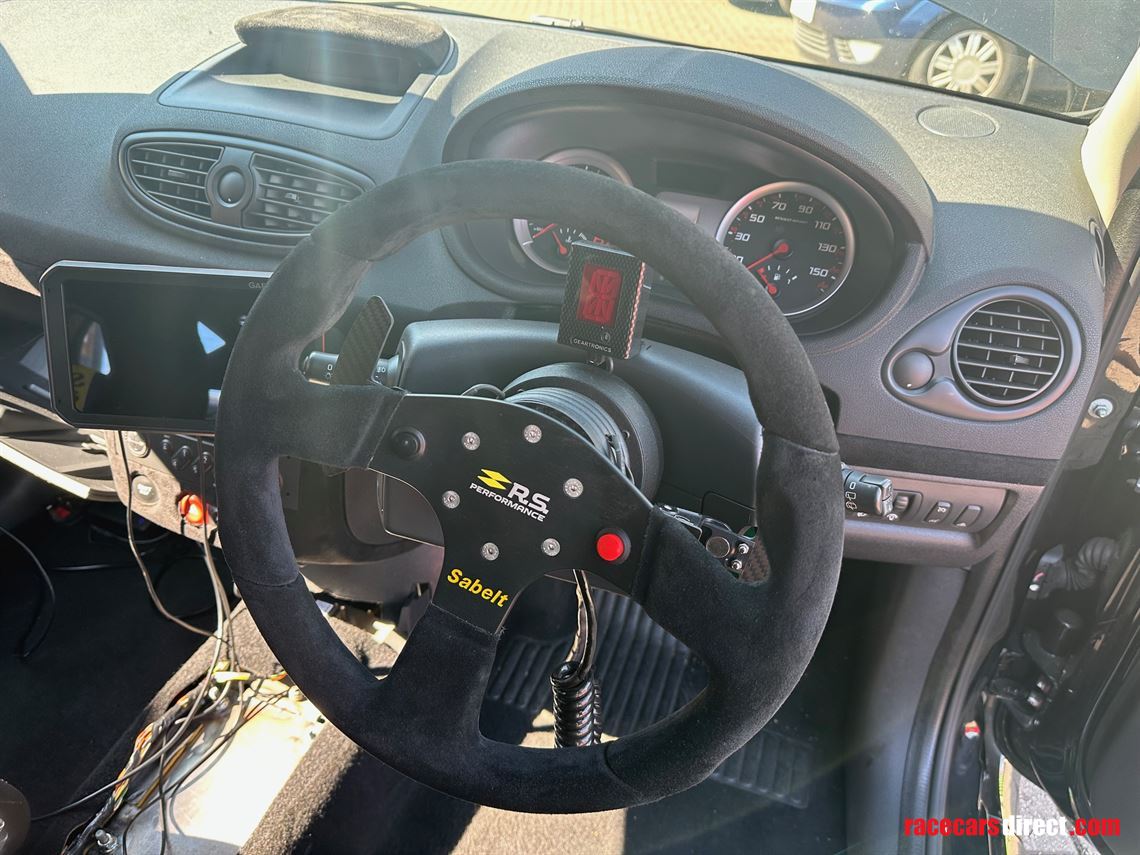

RS Sabelt 330mm steering wheel
Omp wheel boss
Honda hybrid racing shifter
Hybrid racing gear cables
Hybrid gear lever extension
Carbon Fibre electronic Paddles
Alcantara gear lever trim
Steering column lowered 15mm
JWM Race battery lightweight 2kg plumbed behind glovebox
Battery isolator wired into the glovebox
Alloy race battery holder
Race lightweight  battery cable
Fully fused front and rear
Clio 197 carpet’s and door cards still fitted
Clio 197 dashboard working with the Ecu Master Black Ecu
Alcantara centre dash trim
Alcantara side pieces
Clio floor mats

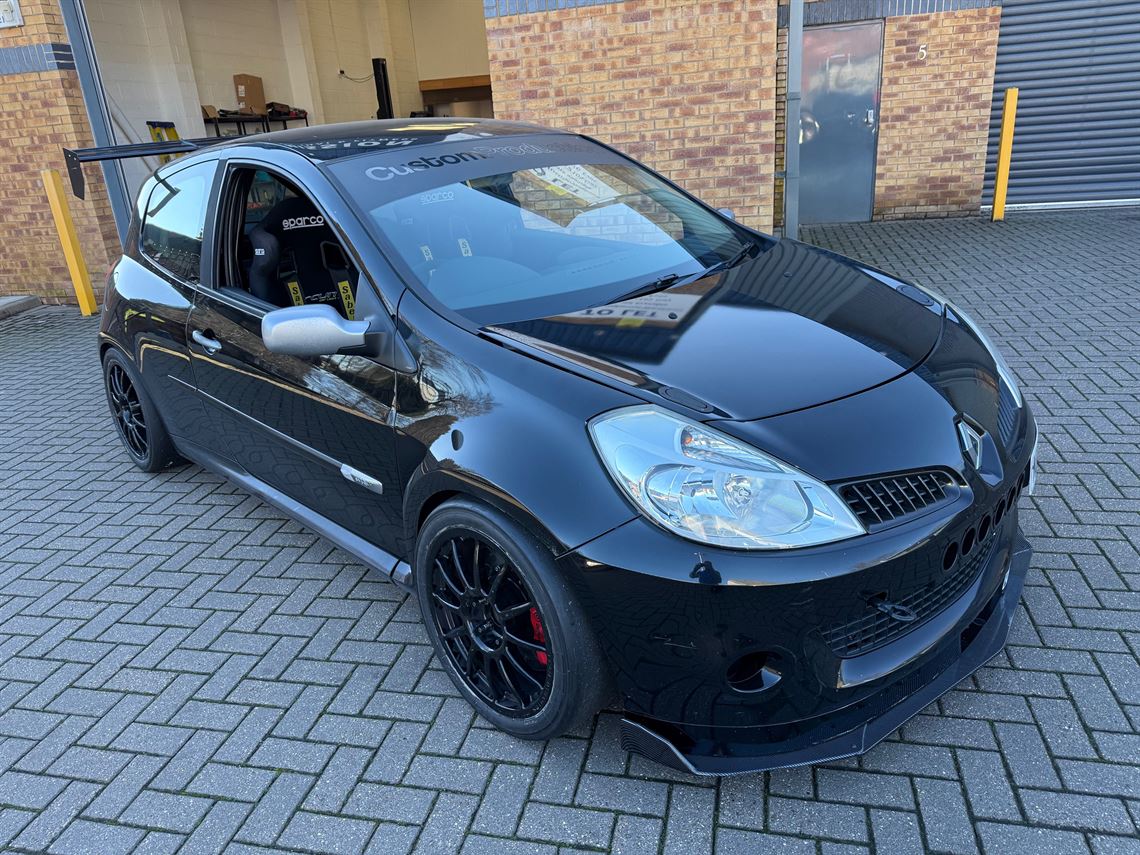

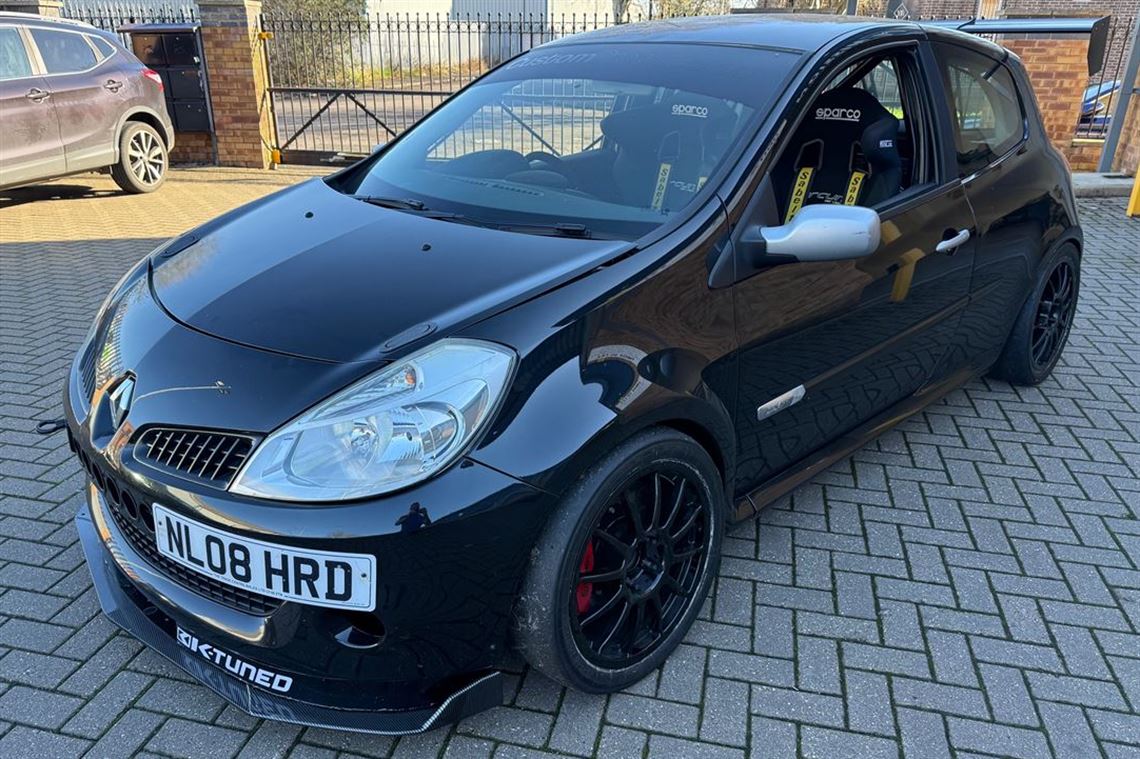

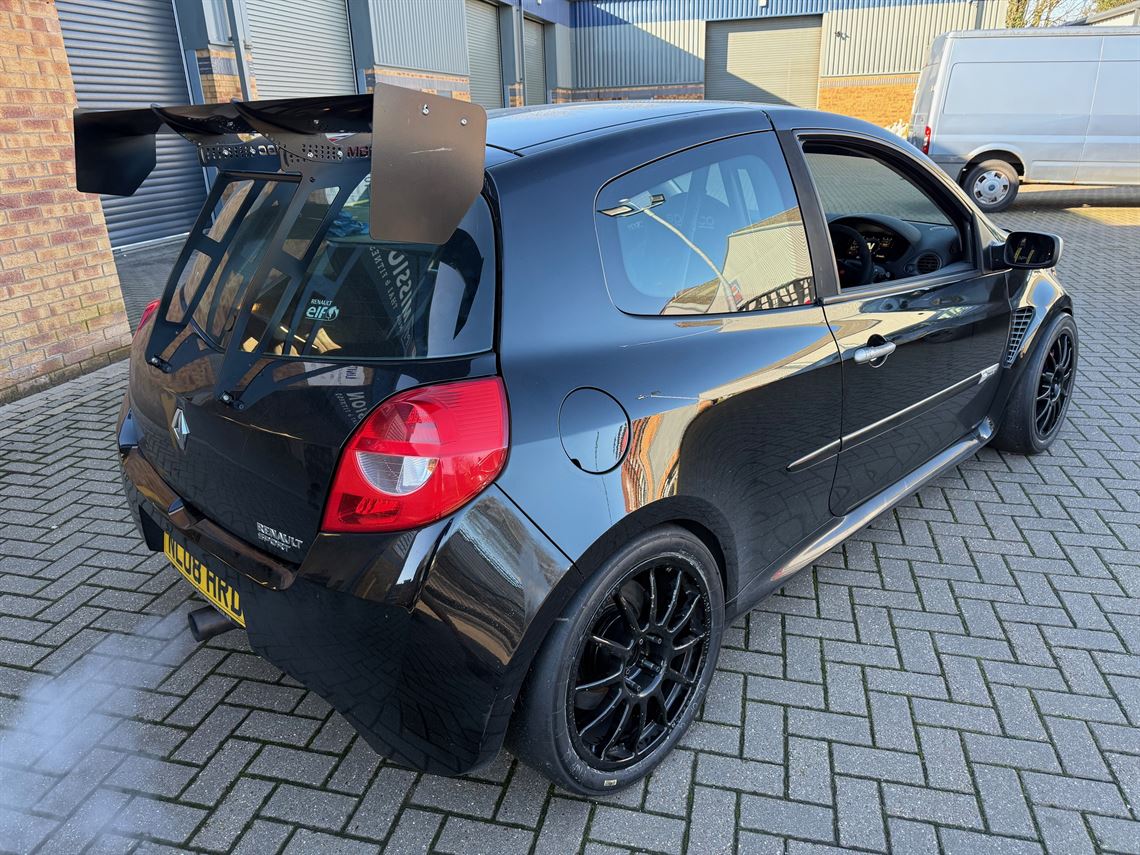

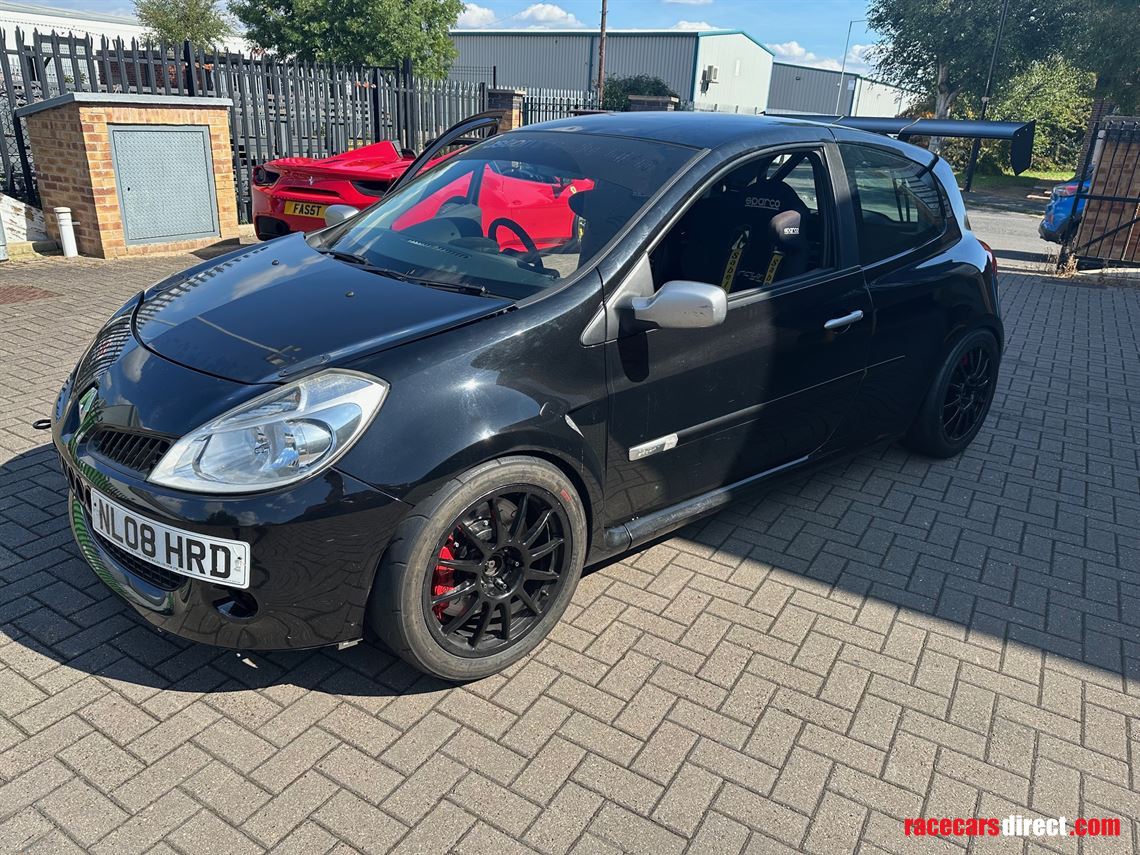

EXTERIOR

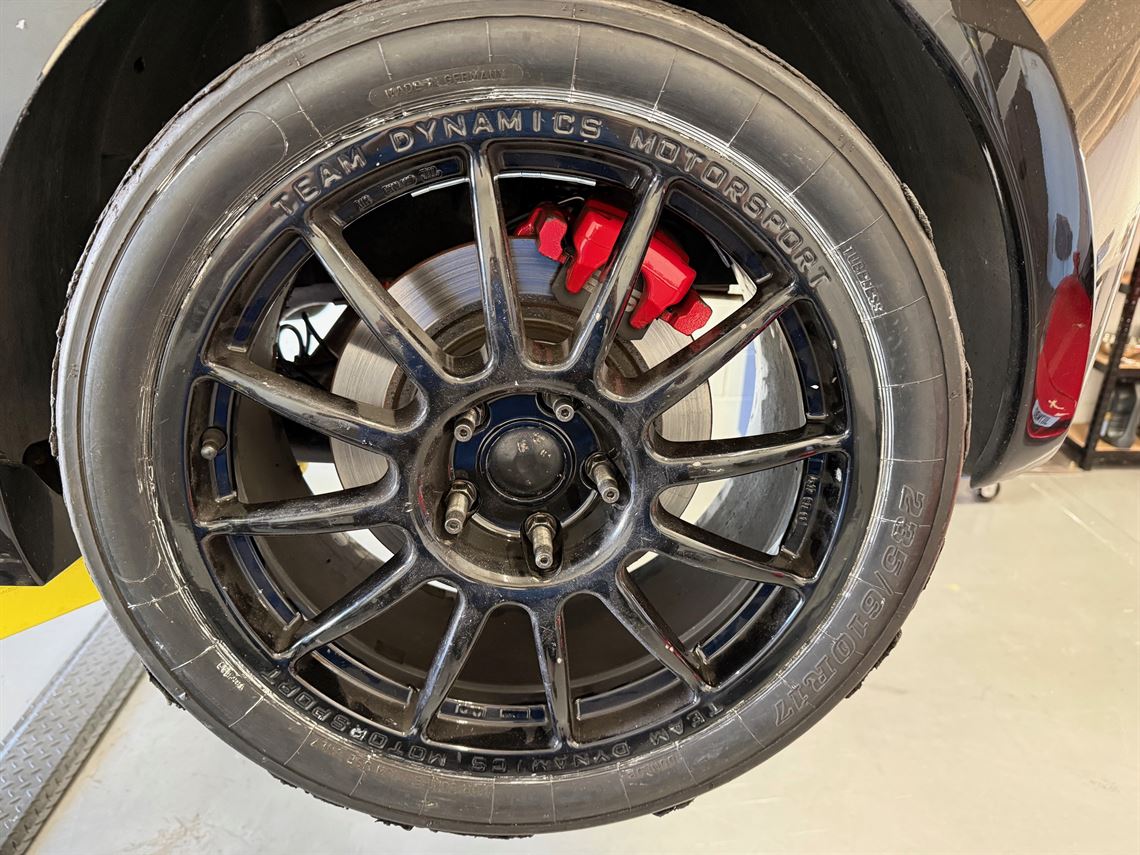

Custom offset 8J Team-dynamic black alloy wheels
Dunlop direzza 03G semi slicks 225/45/17
Stud & Nut wheel nuts
Aero catches fitted to bonnet
Raised bonnet mounts

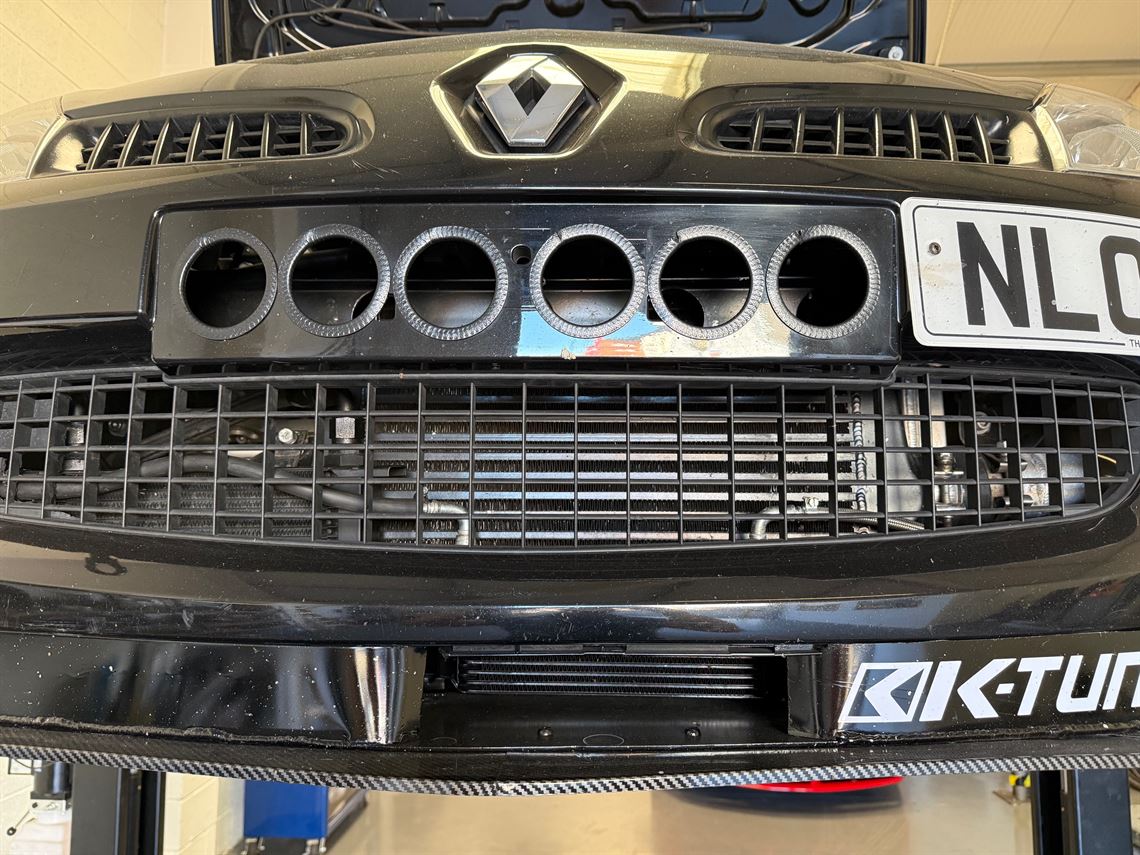

Vented Clio 197 bumper for Intercooler
SW Motorsport front splitter

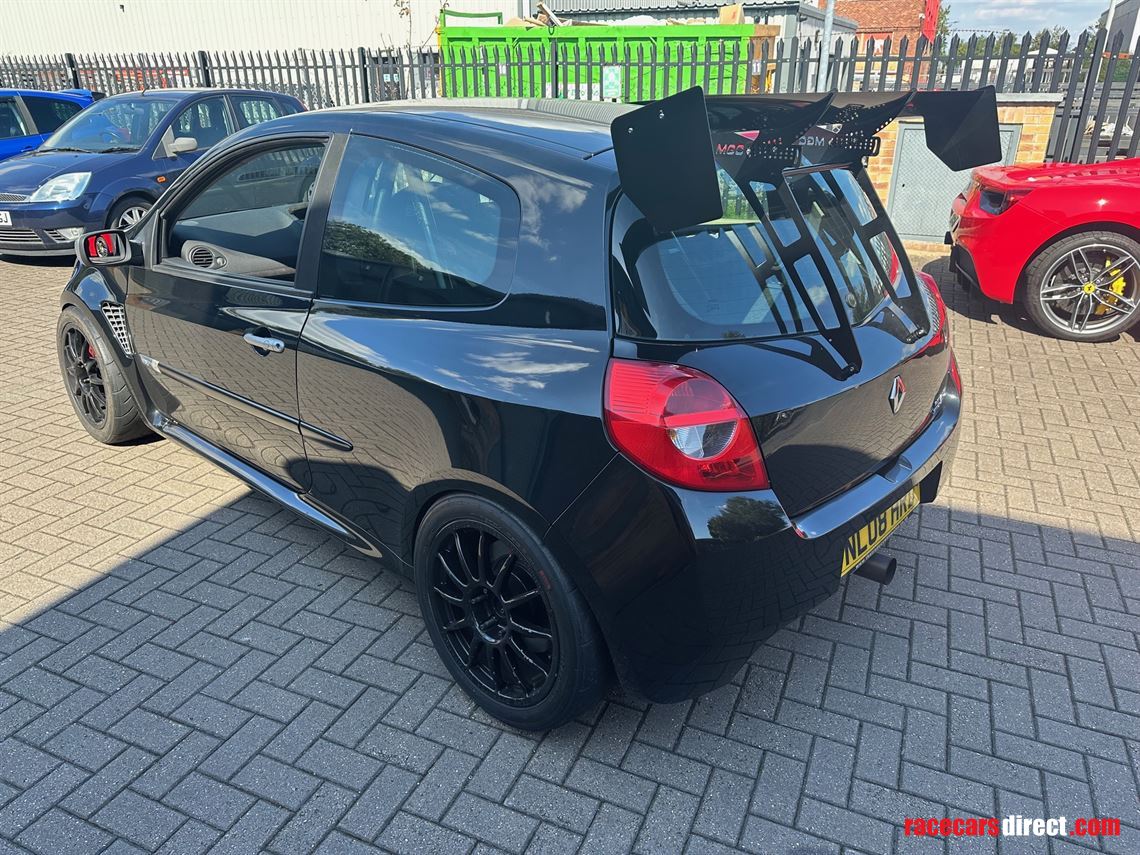

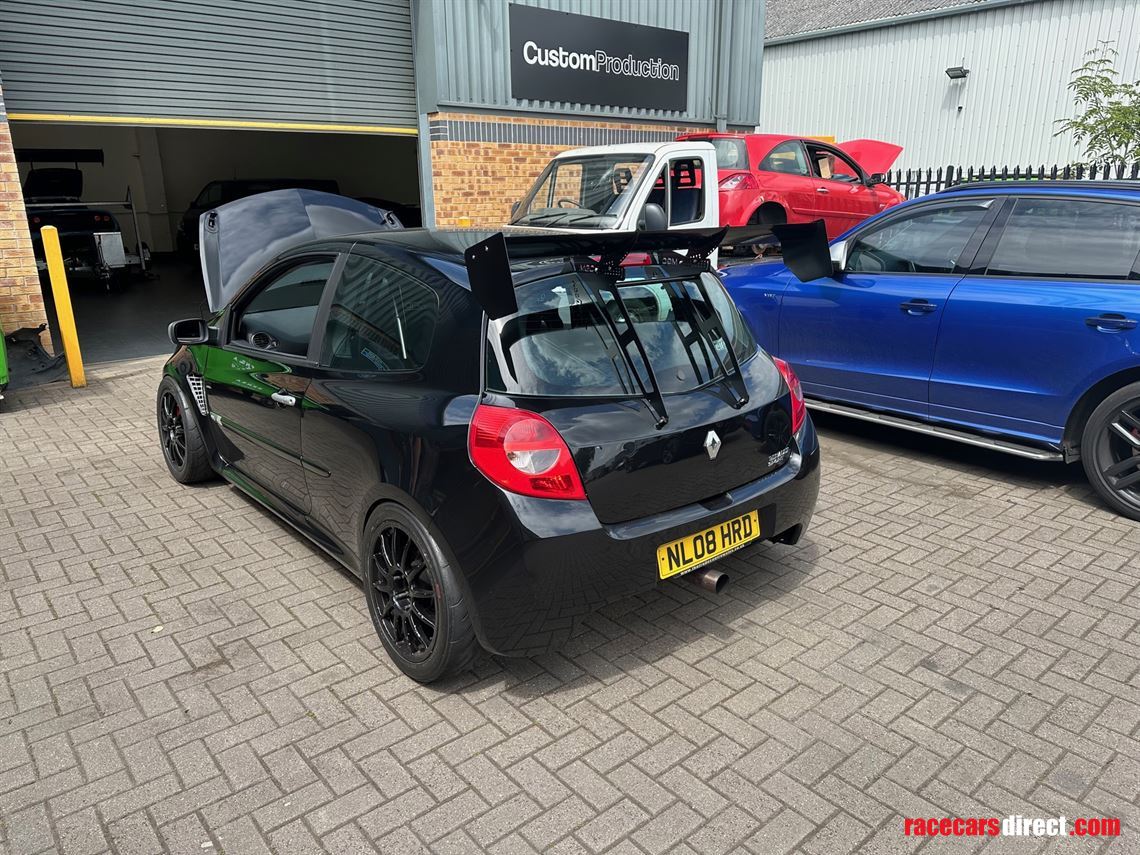

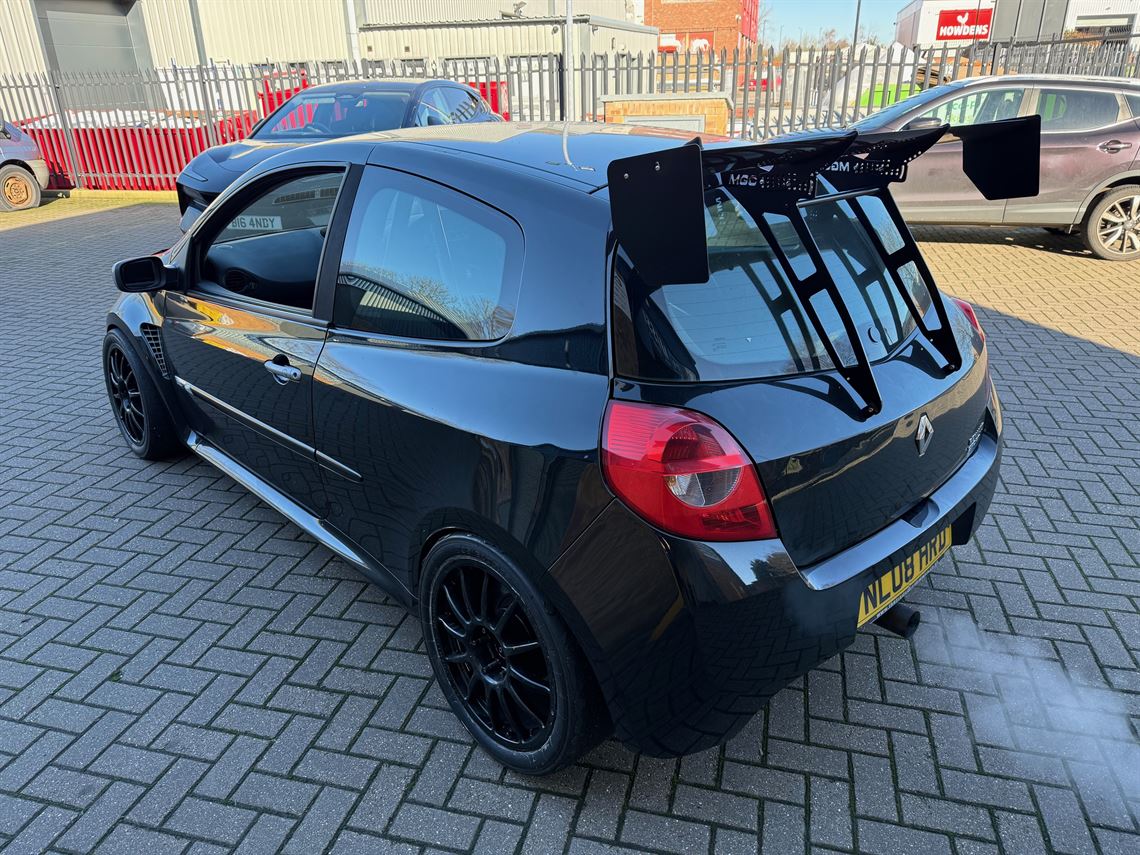

MGC custom rear wing with end plates
Custom rear bumper
Centre exit 3” exhaust
Renault front towing eye

This really is the ultimate Renault Clio build. You could break this car for parts and nearly get the asking price.

Hours and hours of building and testing have gone into this car.

The asking price is £35,000
