Description:

Specifications

Transmitter BTX

Outputs

• Coded infra-red beam

Range up to 40 meters (130 ft) when used with BR2

• 3 color LED status indicator for:

Power OK

Low battery

Fault or very low battery

Power

• External via a 12 V rechargeble battery (10Ahr capacity recommended)

• Power consumption 70 mA typical

Compatible with

• BR2

Physical

• Case size 90 x 80 x 115 mm

• Weight 260 grams

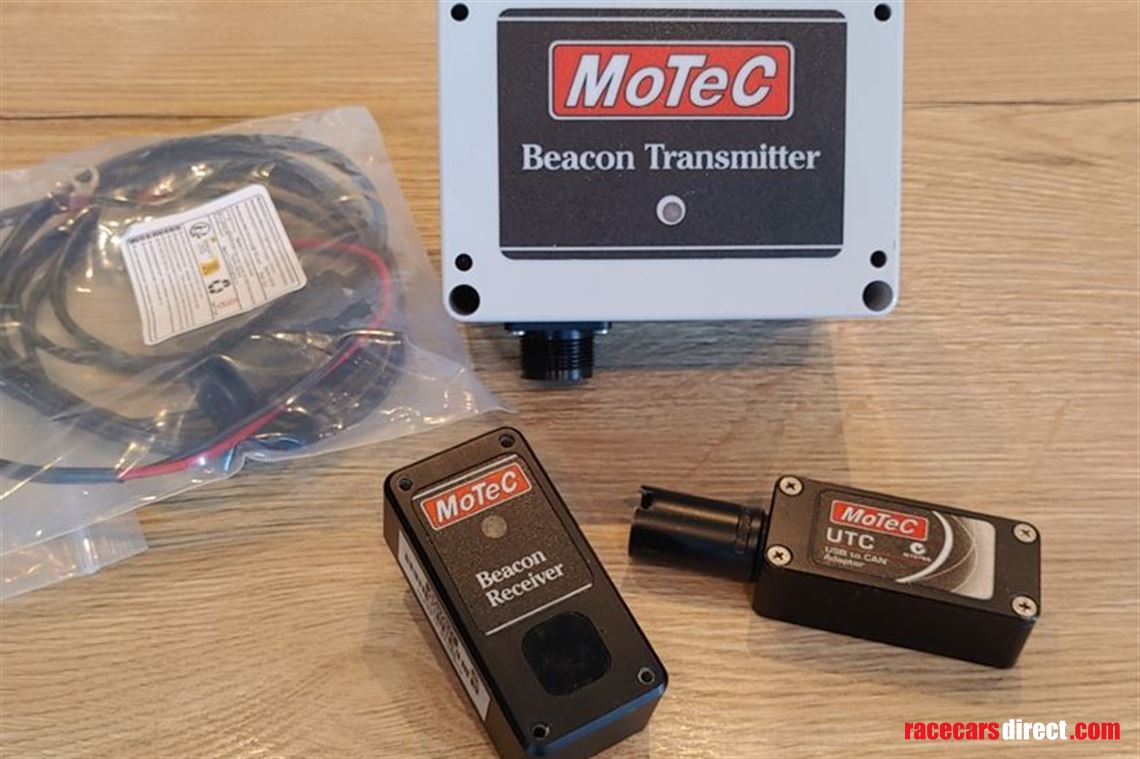

The Beacon Transmitter (BTX) is the track side mounted part of the lap timing system.

Specifications

Reciever BR2.

Outputs

• LED Indicating

Power on

Beacon signal received

Error codes

• Digital output for beacon information (alternative to CAN output)

Communications

• CAN bus used for:

Communicating beacon information

Communicating diagnostic information

Configuring the receiver via the BR2 configuration software

Compatible with

• SDL3

• ADL3

• ACL

• MDD

• M400/M600/M800/M880

Physical

• 5 pin Autosport connector

• Case size 75 x 36.5 x 25 mm

The Beacon Receiver (BR2) is the part of the lap timing system that is fitted in the vehicle. Depending on the other components in the application, the receiver can be connected using a switched output or a CAN bus and should be set up accordingly.

USB - CAN ADAPTOR.

No Cable

Asking 525 ono. Prefer not to seperate.

Website:

https://www.motec.com.au/products/BTX%20Transmitter?catId=9

Keyword Search Terms:

motec. beacon. lap timer. transmitter. receiver. usb. can.
