Description:

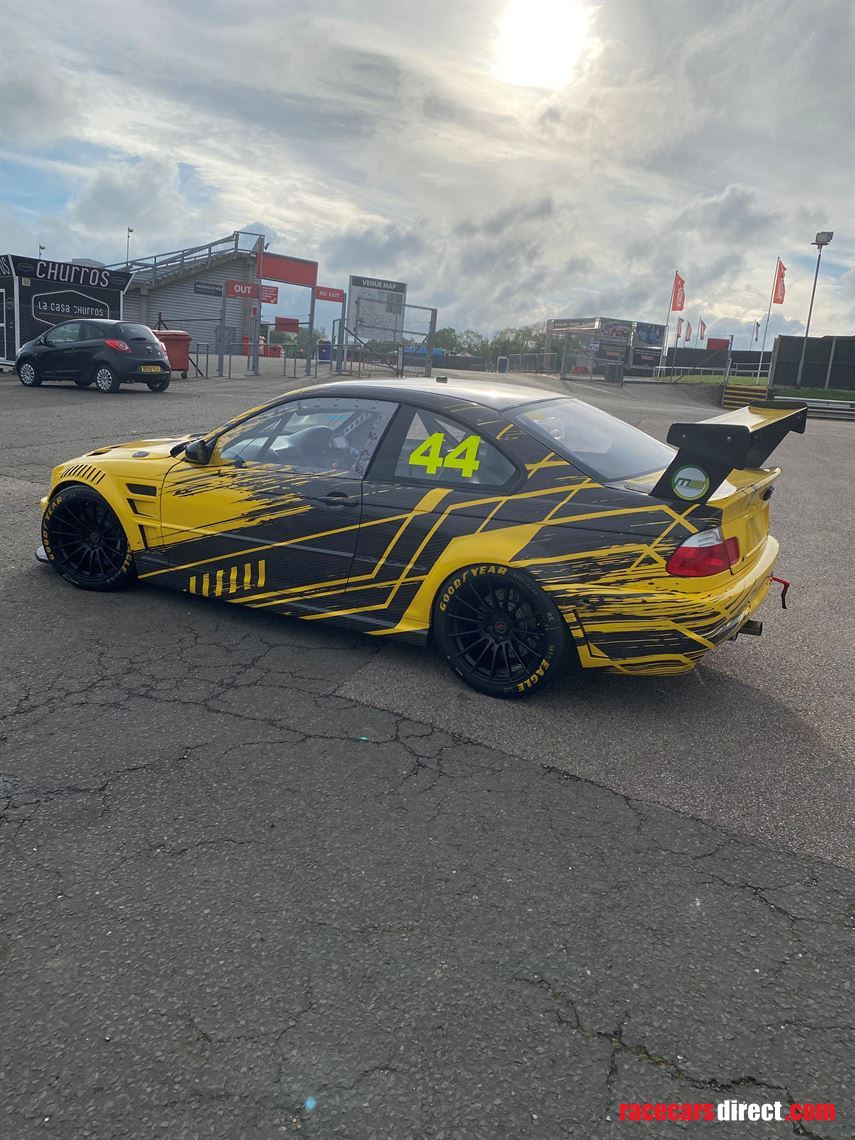

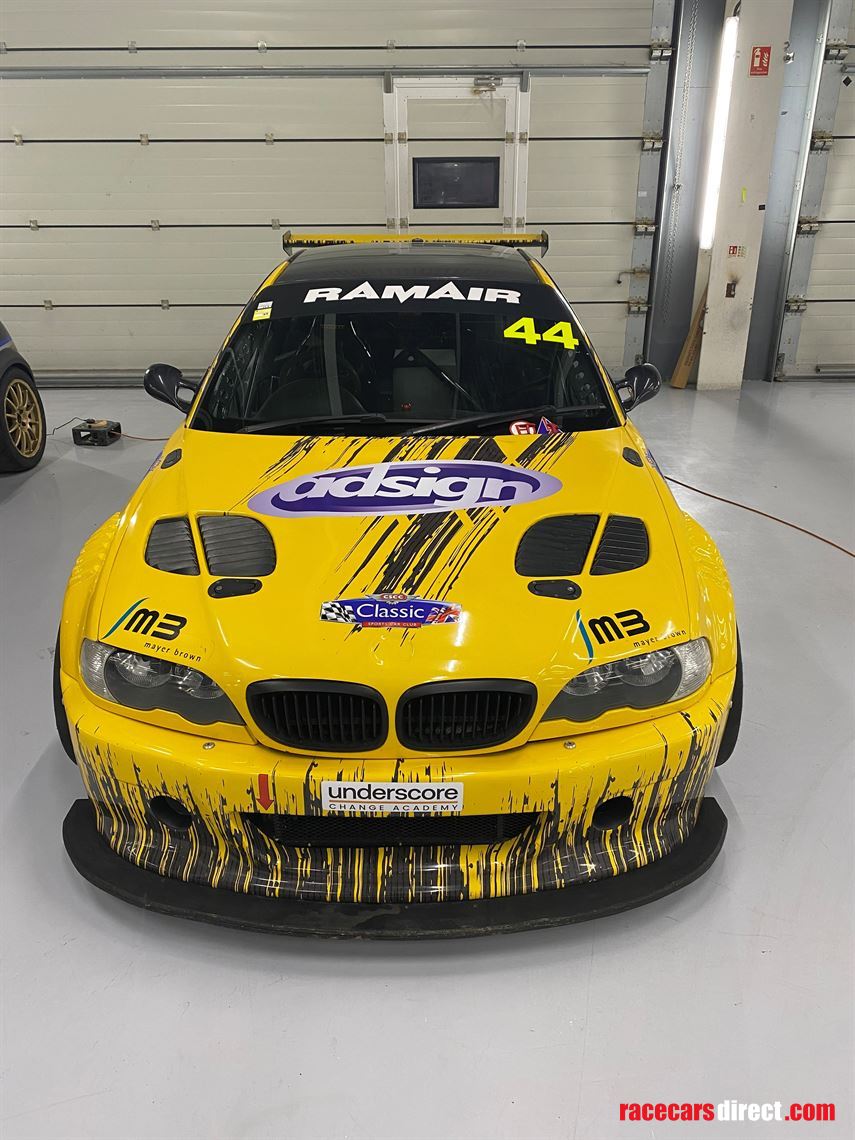

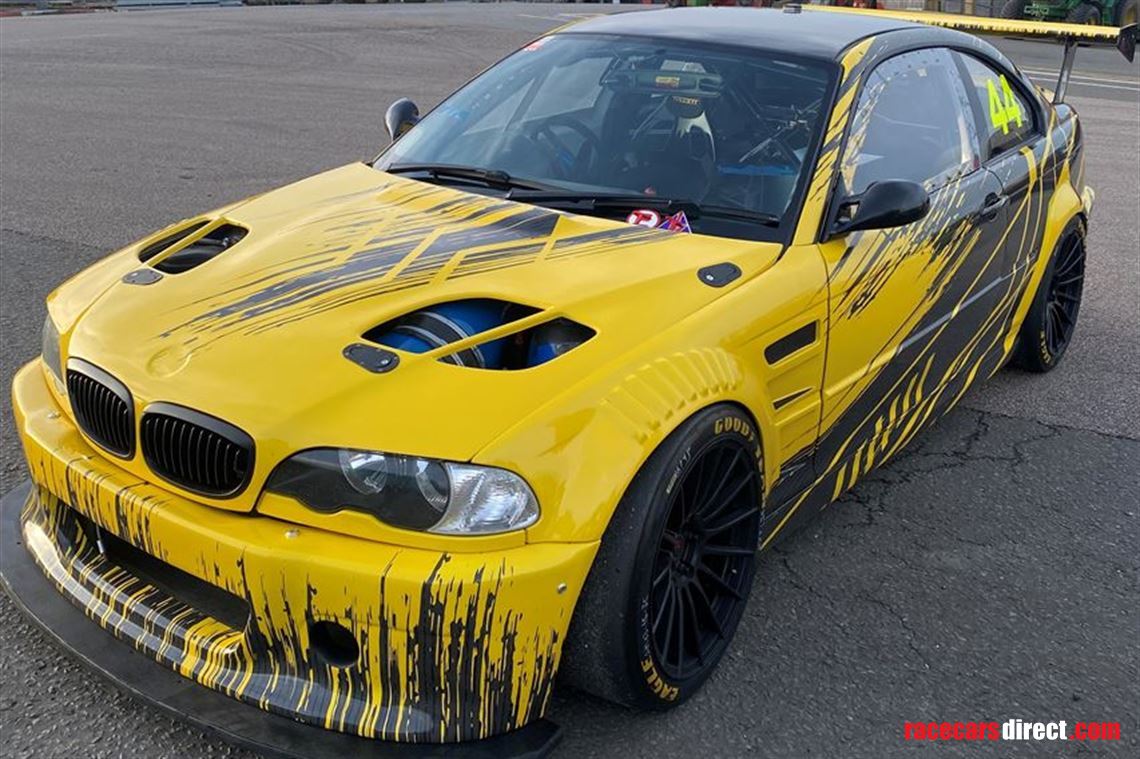

2003 E46 M3 Race Car – 1125kgs

A rare opportunity to acquire a highly competitive, lightweight, high-specification E46 M3, built with all the right components and fully prepared for racing.

Purchased in late 2022, the car was professionally prepared by TN Racing in early 2023 and went on to compete in the 750MC BMW Car Club Racing Championship. During this period, it proved its pace and reliability with multiple class podiums and a class win.

Over the winter of 2023/2024, the car received further development by TN Racing to contest the CSCC Ramair BMW Championship. While limited race outings in 2024 and 2025 due to other commitments, the car has delivered outstanding results, finishing on the class podium at every event entered. Highlights include outright pole position at Snetterton 300 and a race victory at Silverstone.

The most recent outing was the BMW 3-Series Anniversary Race at Castle Combe, where the car qualified and finished an impressive second overall on a highly competitive grid.

This is a proven, front-running car with a strong pedigree, ready to be raced and enjoyed immediately.

The specification is as follows:

Chassis

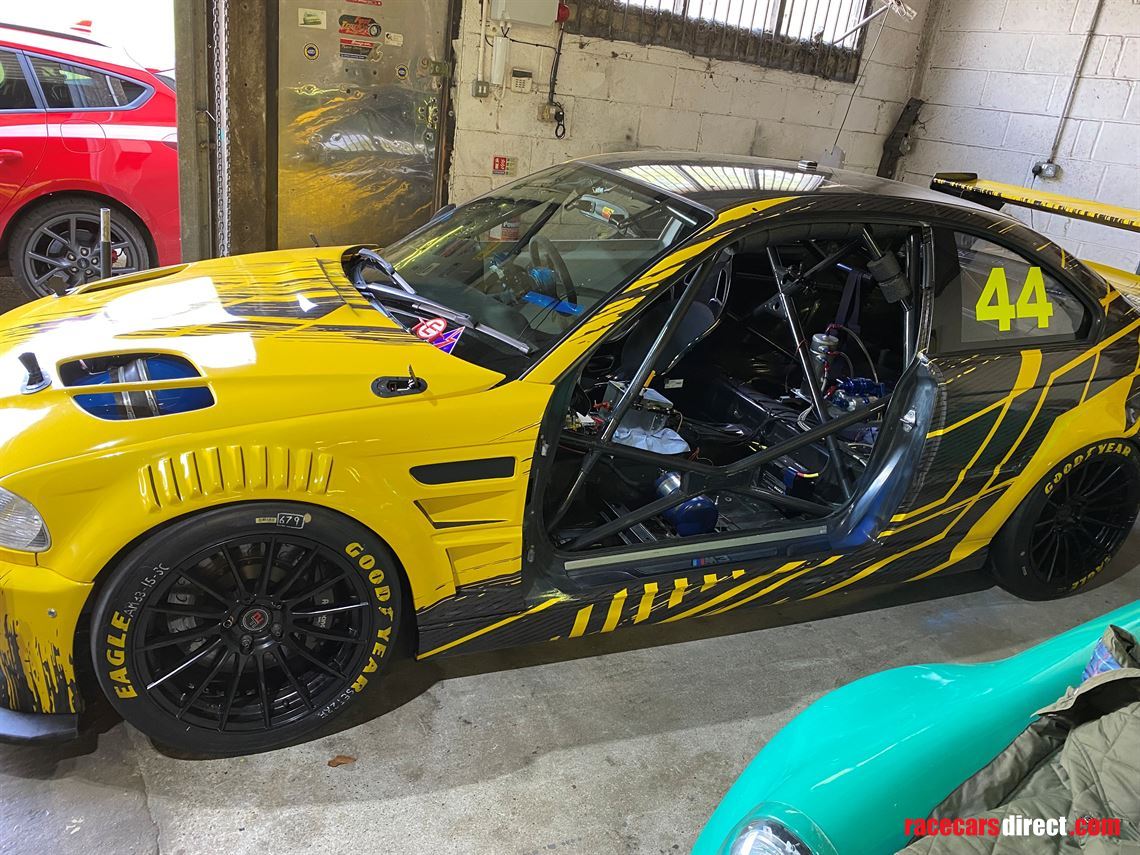

• Custom Cages T45 Cage
• Reinforced rear subframe area and front turrets
• Perspex side and rear windows
• Heated windscreen
• Carbon Roof
• GRP Front wings, front bumper, rear bumper, bonnet, bootlid and doors
• Carbon GSR Rear Wing
• Front splitter

Suspension

• Intrax dampers and top mounts, new in 2023 – excellent condition
• Adjustable antiroll bars front and rear with rose jointed drop links
• VAC Motorsport Rear Camber Arms
• VAC Motorsport spherical upper inner bushes
• SPL Rear outer bushes
• Bimmerworld  spherical RTA bushes
• Bimmberwold TCAB bushes
• MS Motorsport Differential bush
• VAC RC Subframe mounts
• MRT Front RC Kit
• 2 forge ZF1 18x10 Wheels

Brakes

• AP Racing CP9660 6 piston front calipers with 368mm BTCC discs and pads
• AP Racing 4 piston rear brakes
• Tilton Racing floor mounted pedal box and master cylinders, remote bias adjuster
• HEL Braided lines
• SCS Delta Motorsport ABS – Fully adjustable and programmable

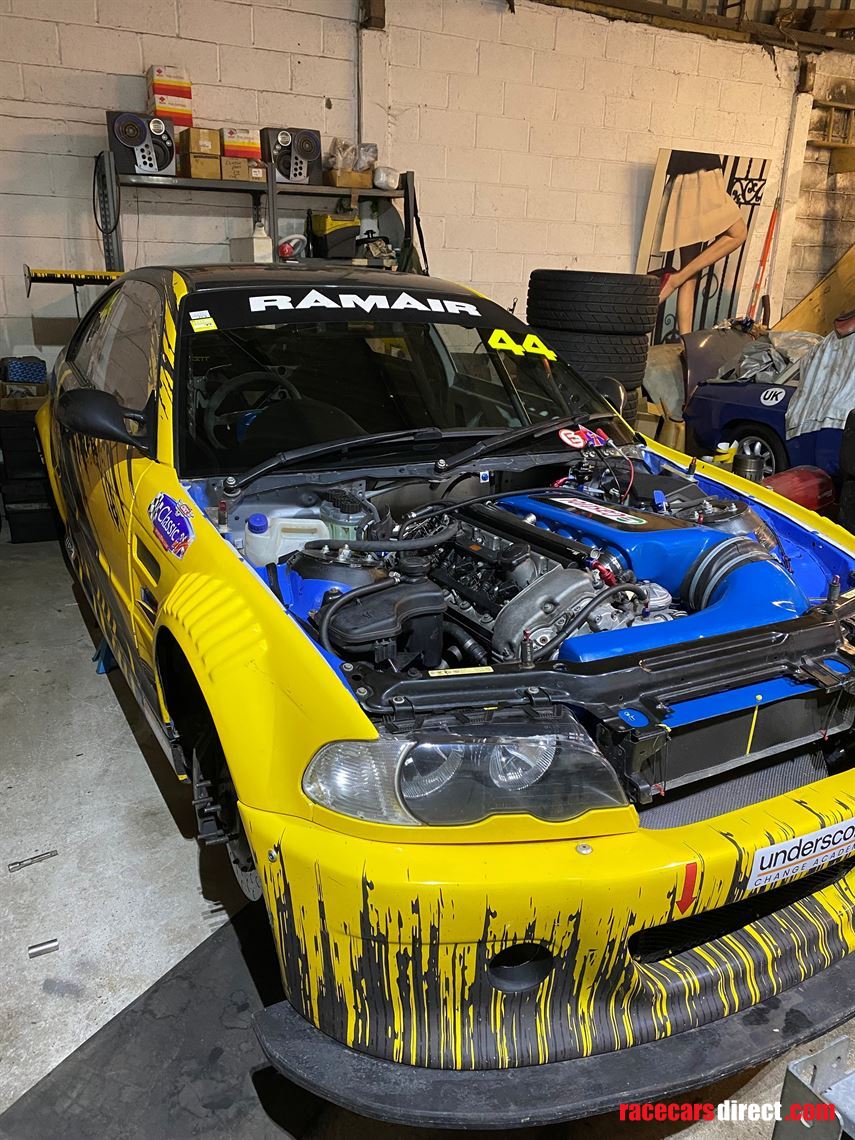

Engine

Standard S54 Engine, completely rebuilt mid-2024 to include:

• Honed cylinder block (using torque plate)
• New Piston Rings, Pistons ultrasonically cleaned and balanced
• Rods Ultrasonically cleaned and balanced
• ARP Rod bolts
• New oil pump with VAC shaft and nut
• New seals and gaskets including head gasket
• Uprated VAC Vanos bolts
• New Vanos microfilter
• Lightweight flywheel and 7.25” twin plate clutch
• Valve clearances set
• Oil thermostat delete
• Vibratechnics mounts
• HRD Airbox
• Custom TN Racing lightweight single exit exhaust system
• Tuned by Gareth at Autologik Motorsport to 385bhp and 306lbs/ft torque

Transmission

• ZF320 gearbox, fresh oil – no issues
• Custom propshaft by Propshaft Services
• Gripper custom 6/12 plate LSD – fitted by Road and Race transmissions (oil changed regularly)
• 4.1 Ratio BMW Motorsport CWP (new 2023)
• Twin plate 7.25” clutch
• Billet release bearing
• Uprated clutch fork pivot
• Uprated mounts

 Electronics

• ECU Master PMU and Keypad to control all electrics
• AIM Digital Dash with GPS
• SCS Delta ECU with Lambda Control
• SCS Delta motorsport ABS
• Adjustable Traction Control
• Complete motorsport lightweight wiring loom
• Electric power steering
• Lightweight Lithium motorsport Battery

Fuel/Oil/Water

• Standard fuel tank with swirl pot and twin Bosch Motorsport fuel pumps
• Uprated fuel rail and pressure regulator (Radium)
• Large oil cooler
• HRD Aluminium radiator
• Braided lines throughout – new in 2023

Interior

• Tillett B6 Screamer seat – In date
• Schroth 6 point harness – In date
• Lifeline plumbed in extinguisher – In date, serviced march 2025
• GRP dash
• Removable steering wheel

Spares package available by separate negotiation

Viewing welcome by appointment.

Keyword Search Terms:

BMW E46 M3 S54
