Description:

I have 4 of these isolators available, all brand new and sealed.

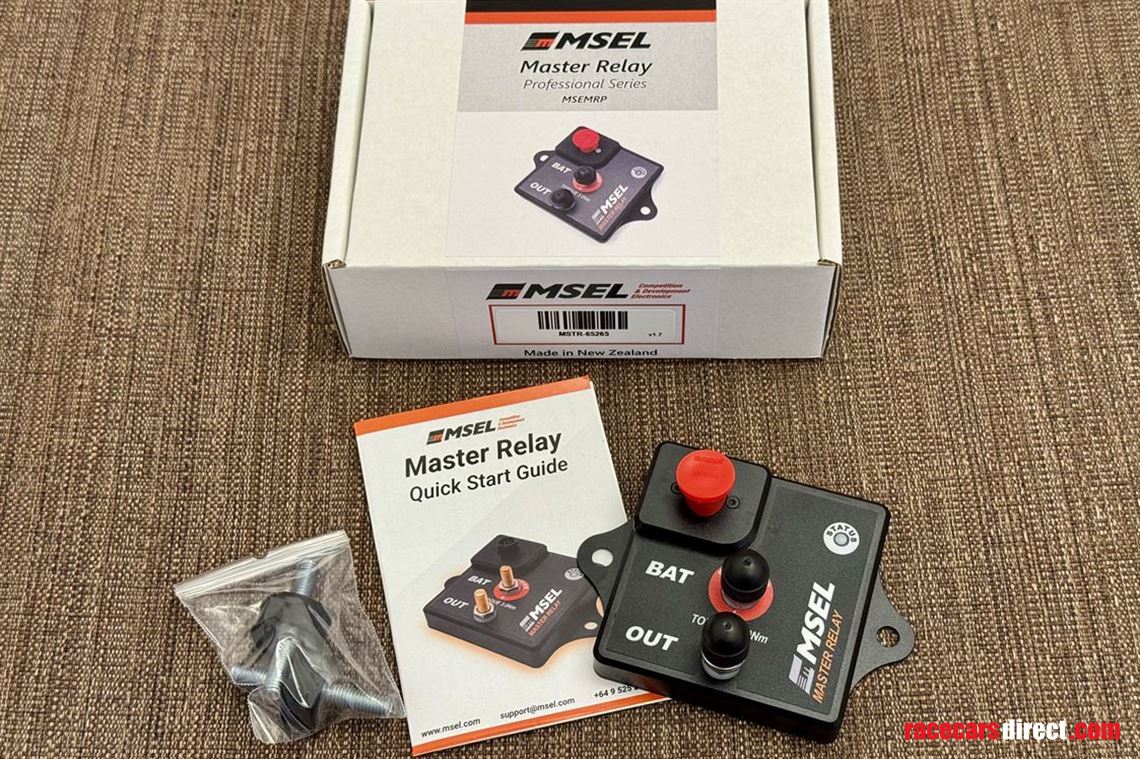

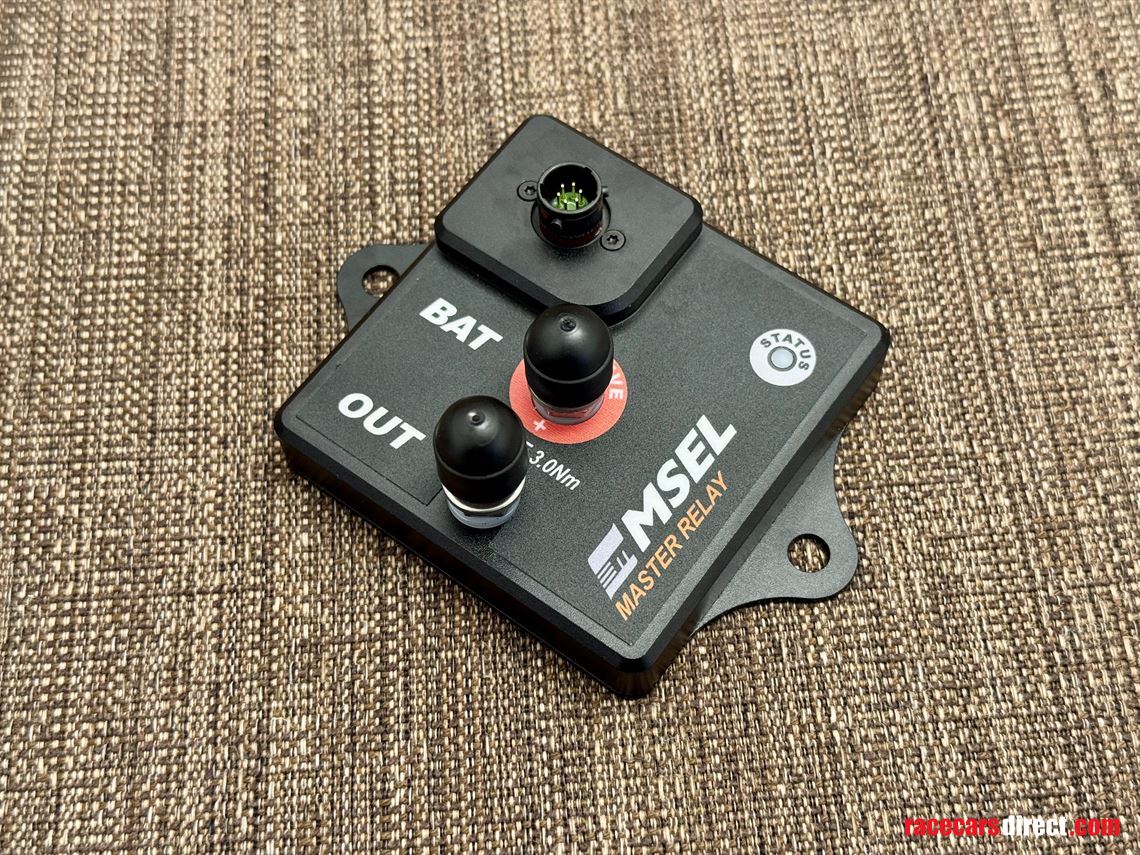

These are the "Professional" version with a Souriau connector for the non-battery connections. I can supply the mating connector or a pigtail cable at cost, if required.

• Meets all the FIA requirements for a battery isolator
• Solid state using MOSFET technology with no moving parts
• 200A continuous current at 25 degrees C (1000A peak current)
• Alternator discharge before disconnection of the battery to avoid load dump which can damage electronics in the vehicle
• Switches positive
• CAN-bus messaging for logging, diagnostics and safety
• Reason for shut down (internal or external switch, over current, over temperature, CAN command to shut down etc)
• Current passing through Master Relay
• Voltage at Master Relay output
• Voltage at Battery
• Shut down command for other devices on CAN
• LED status light
• Autosport connector for switched inputs, ground, CAN and output trigger
• Built in short protection
• Supply voltage between 8 and 30V
• 0.001A current draw in standby mode
• CNC aluminium case sealed to IP63
• 115g
