Description:

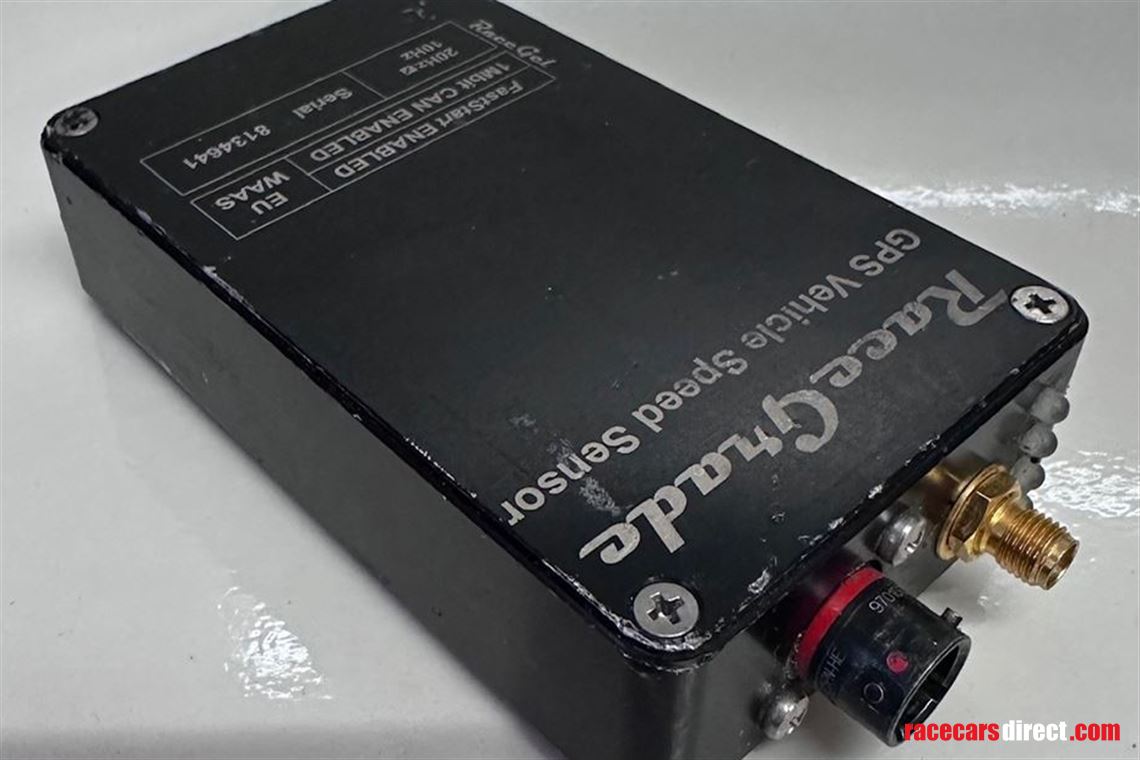

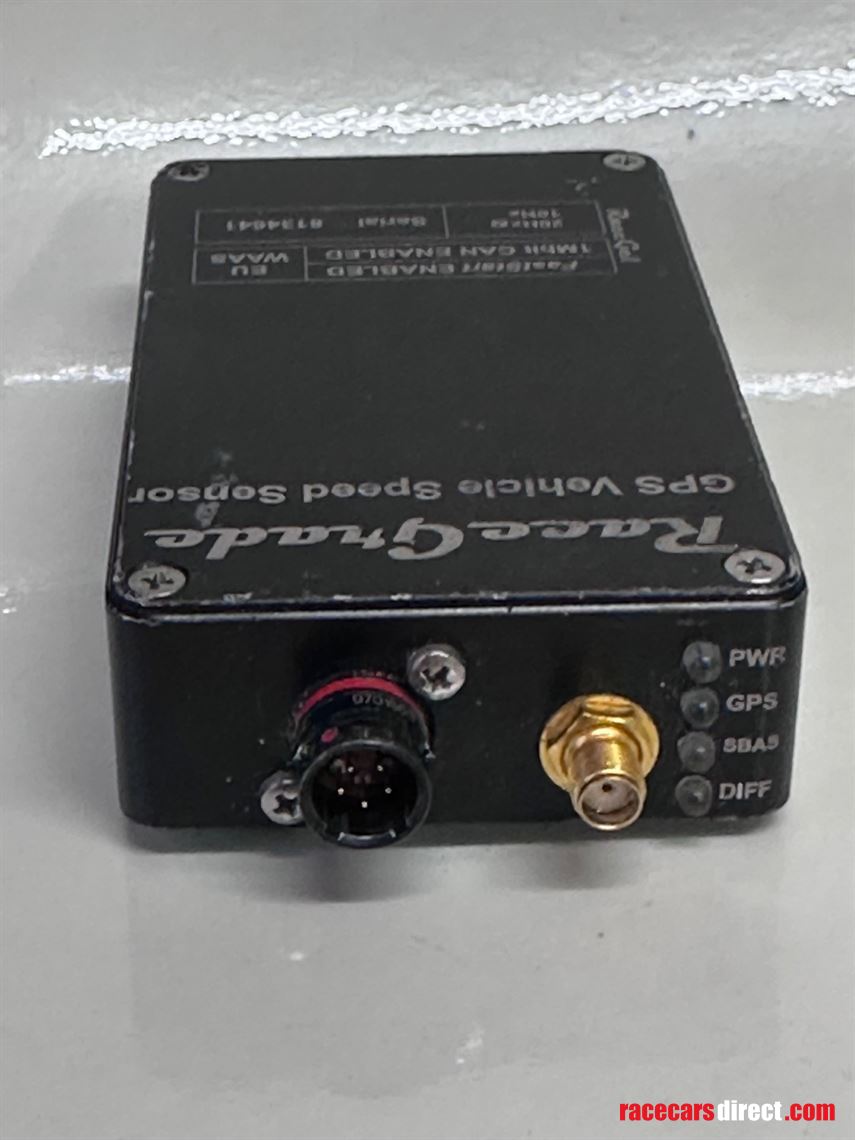

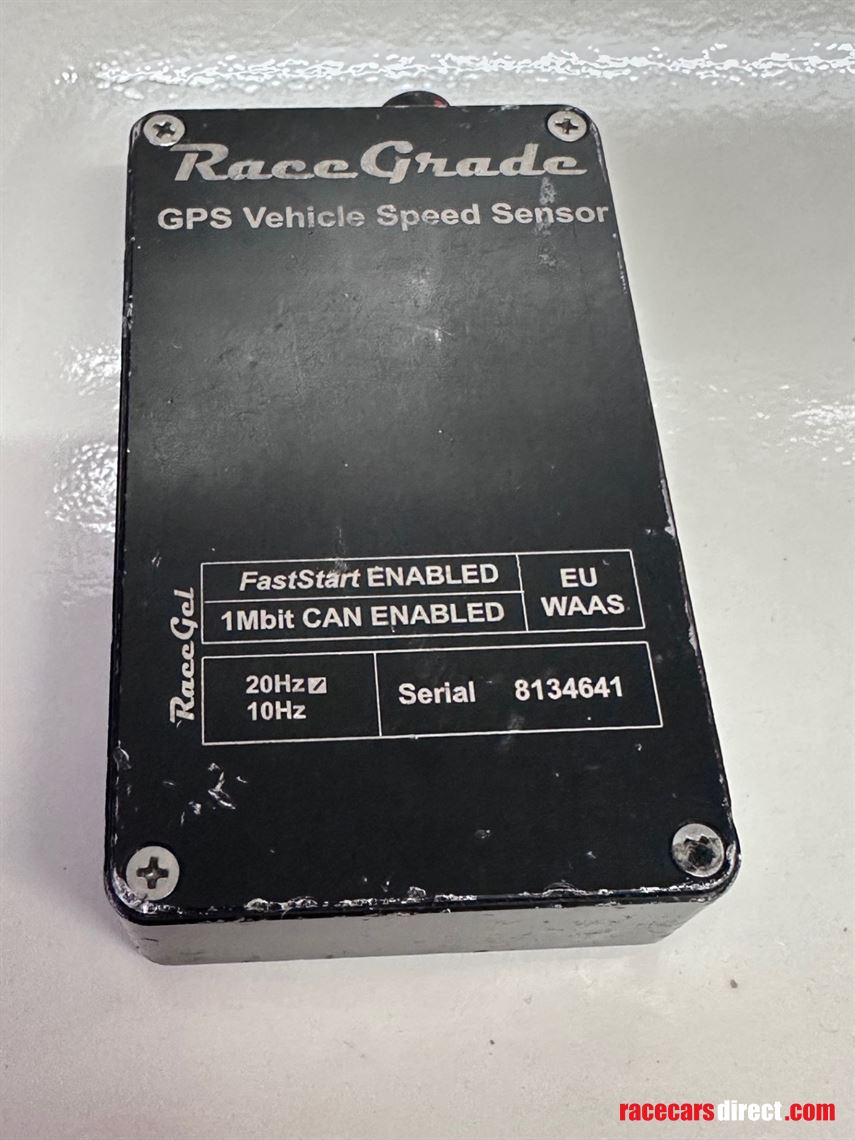

MOTEC Race Grade GPS unit,

This unit was used on a British Superbike to allow data analysis to be as accurate as possible. The Race Grade GPS unit is one of the best on the market and can be used in many different applications.

This GPS device provides a true non-interpolated 10 Hz or 20 Hz output enclosed in a motorsport aluminium case. The new improved version is smaller and lighter, this unit is potted with Race Grade RaceGel for improved resistance to vibration and the environment.


Spec:
12 channel GPS engine
Horizontal accuracy 0.7 meter at 95% with DGPS
Update rate of 10 Hz or optional 20 Hz

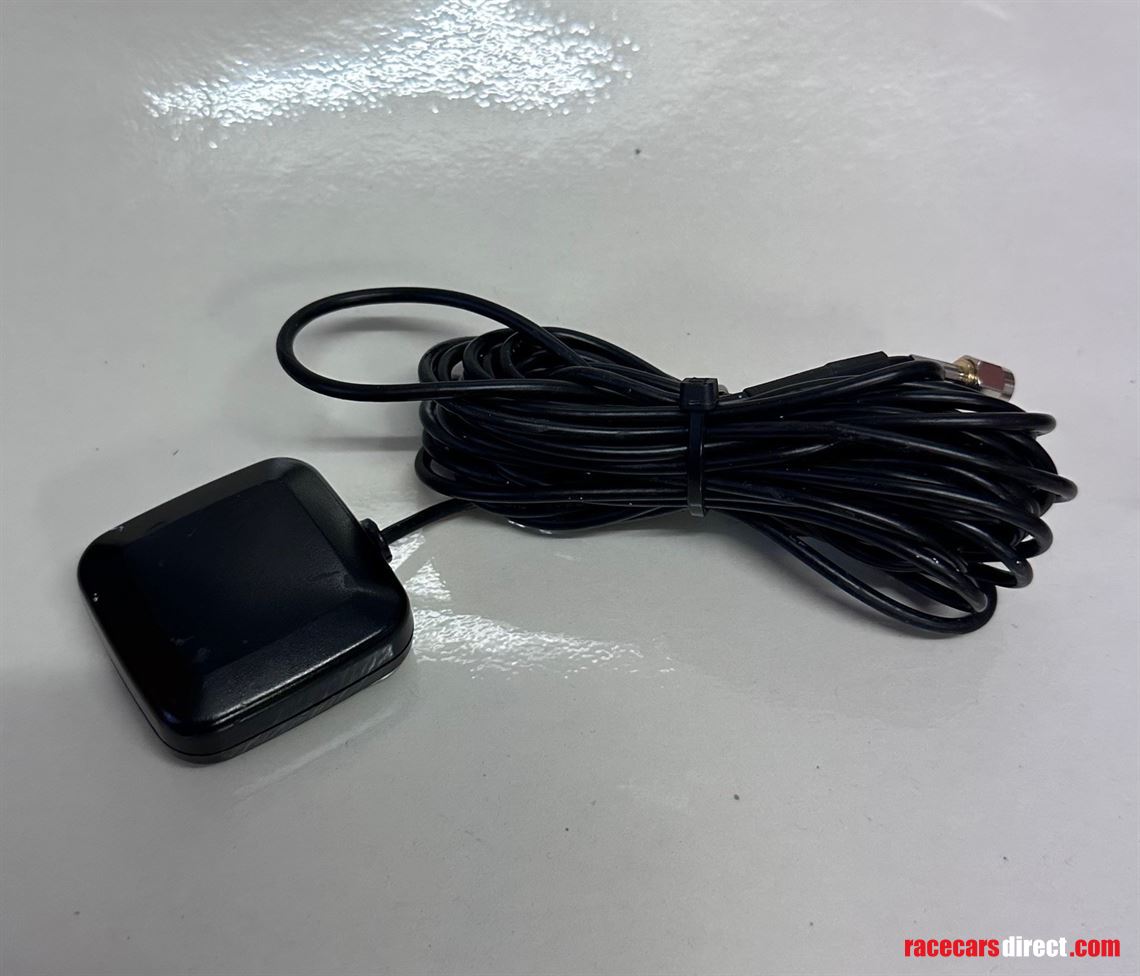

Screw on SMA antenna connector
Current consumption: 380 mA at 12v
Temperature range: -30 to 70 degrees
Weight: 230 Grams w/o antenna
Dimensions: 3.95 x 2.35 x 0.9in, 100 x 60 x 23mm
Potted with Race Grade RaceGel for improved resistance to vibration and environment
