Description:

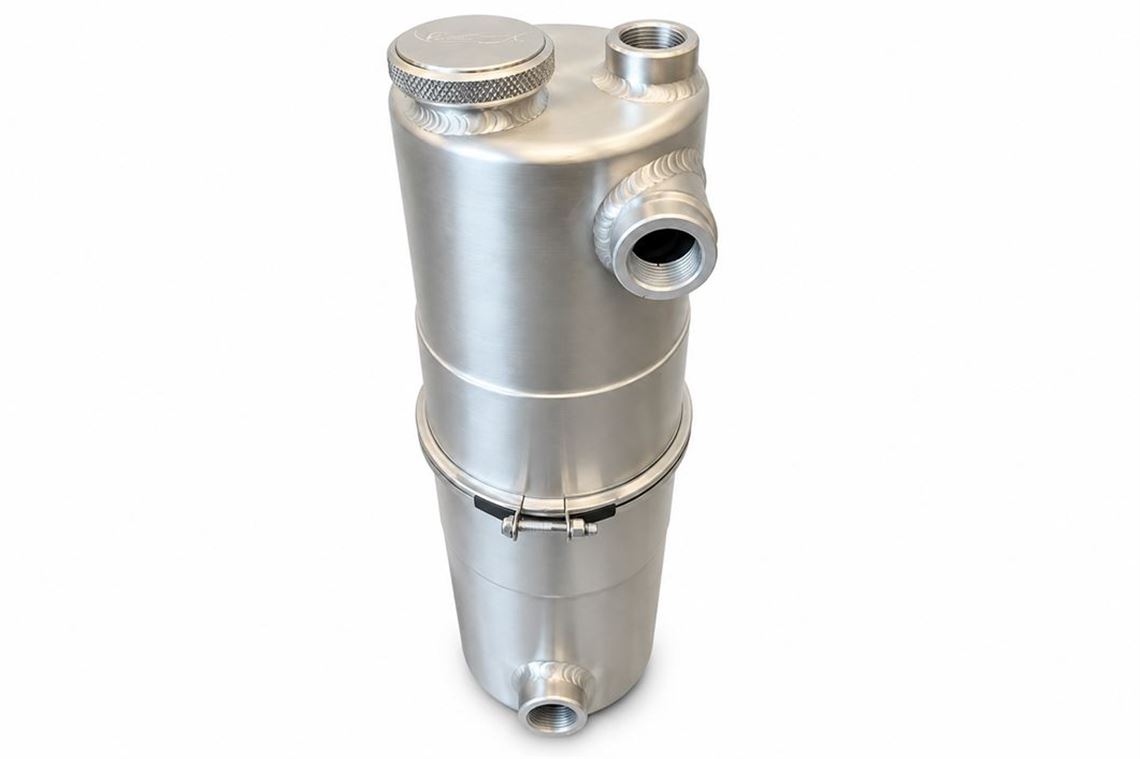

For sale: New Old Stock PACE single return dry sump oil tank.
Professional motorsport-grade component designed for reliable oil control under extreme racing conditions.

✔ Both side outlets D-12
✔ Top outlet 3/4"
✔ 130mm diameter
✔ 360mm height
✔ High-quality spun Alu construction
✔ TIG welded

Engineered with proper oil control and de-aeration in mind:

• Metal spun bodies for improved strength and appearance
• Fully serviceable design — can be completely dismantled quickly by removing a single cap head bolt
• Upper and lower tank sections sealed with an O-ring and secured using a bespoke stainless steel V-band clamp
• Rotatable upper/lower sections allowing fittings to be positioned as required for installation flexibility

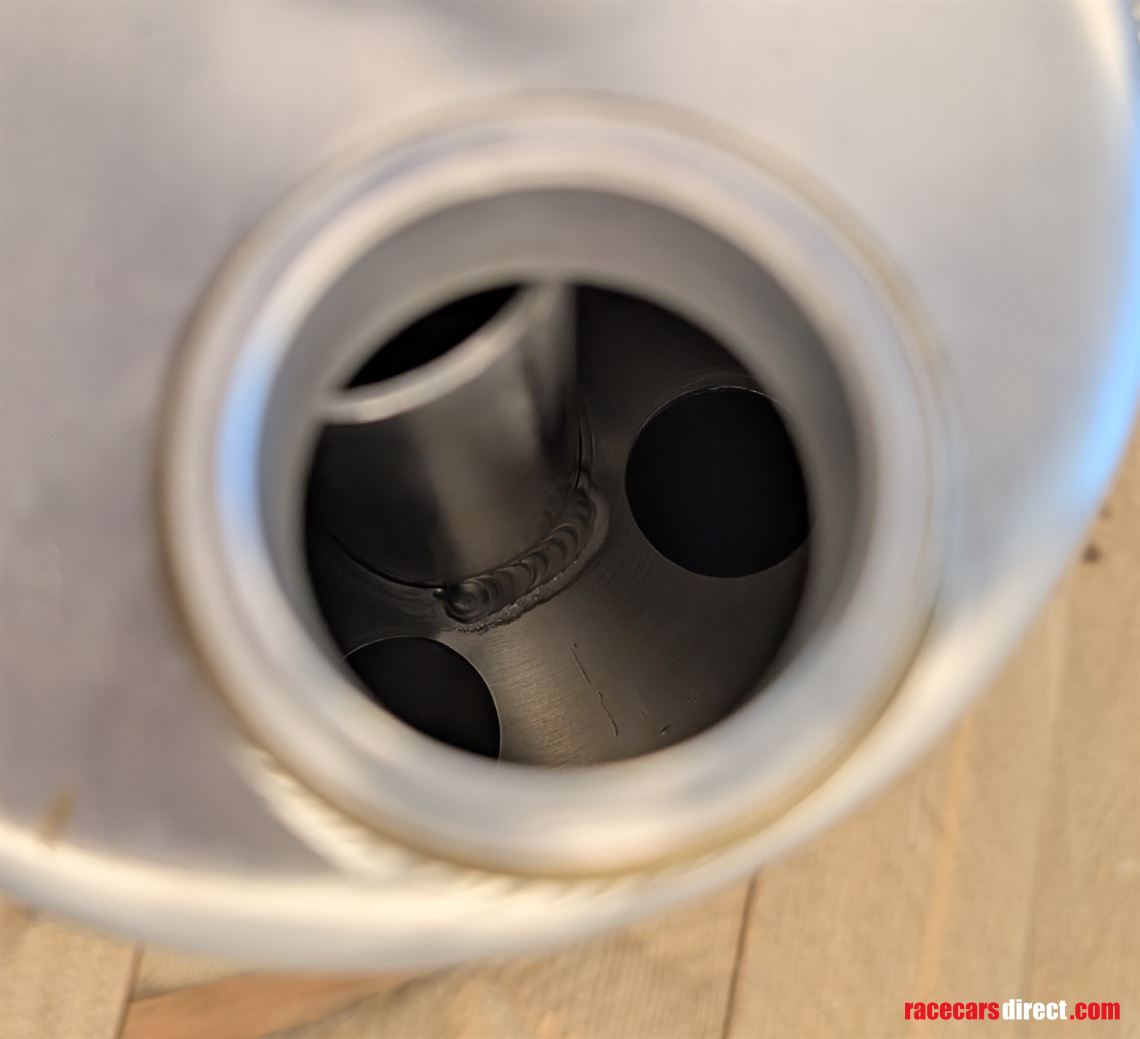

• Thick-wall internal oil suction tube running directly to the tank base centre point, preventing oil surge under all conditions
• Fan-tailed scavenge oil return directs oil onto the tank wall to promote oil/air separation before passing through the internal baffling system
• Lower chamber design prevents oil surge uncovering the pickup point under high G-load conditions
• Fitted with 3/4" breather thread provisions for efficient crankcase ventilation system integration

PACE’s internal tank design is well regarded within motorsport for maintaining stable oil supply and proper de-aeration during sustained competition use.

Ideal for:
✔ Historic motorsport
✔ Circuit racing
✔ Rally applications
✔ High-performance dry sump conversions
✔ Endurance & track cars

Condition: New
Shipping: Worldwide shipping possible at buyer’s cost

Serious enquiries welcome.
