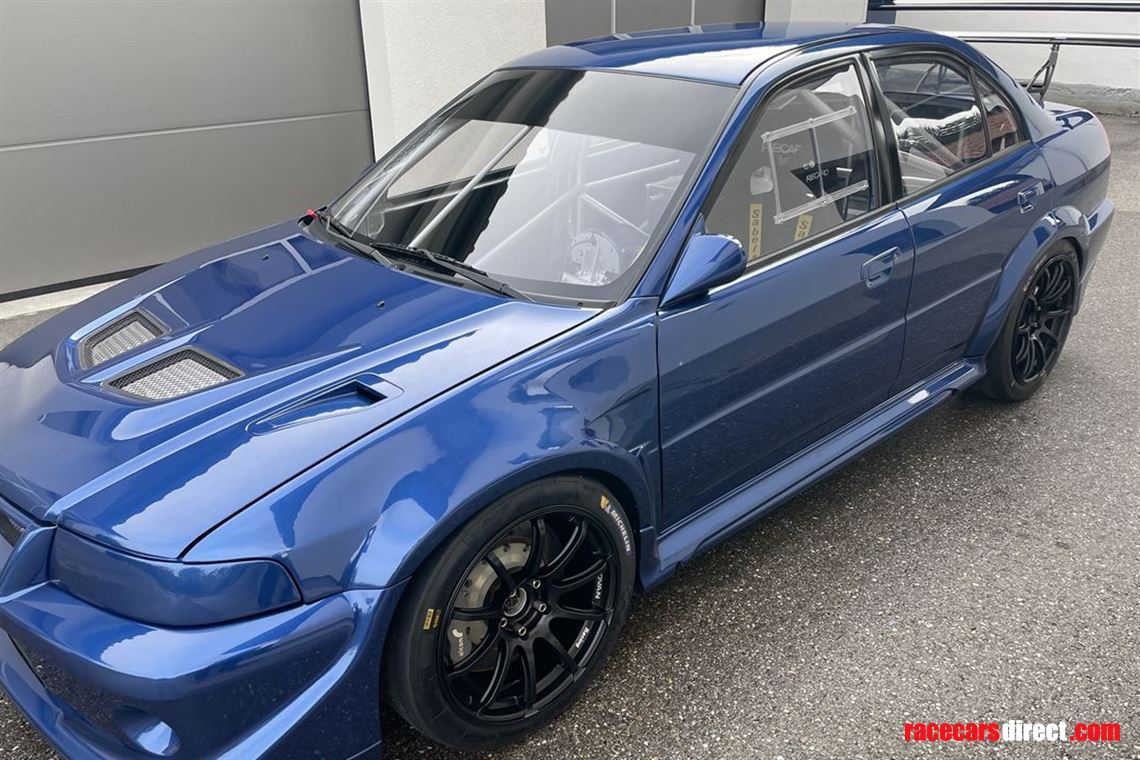

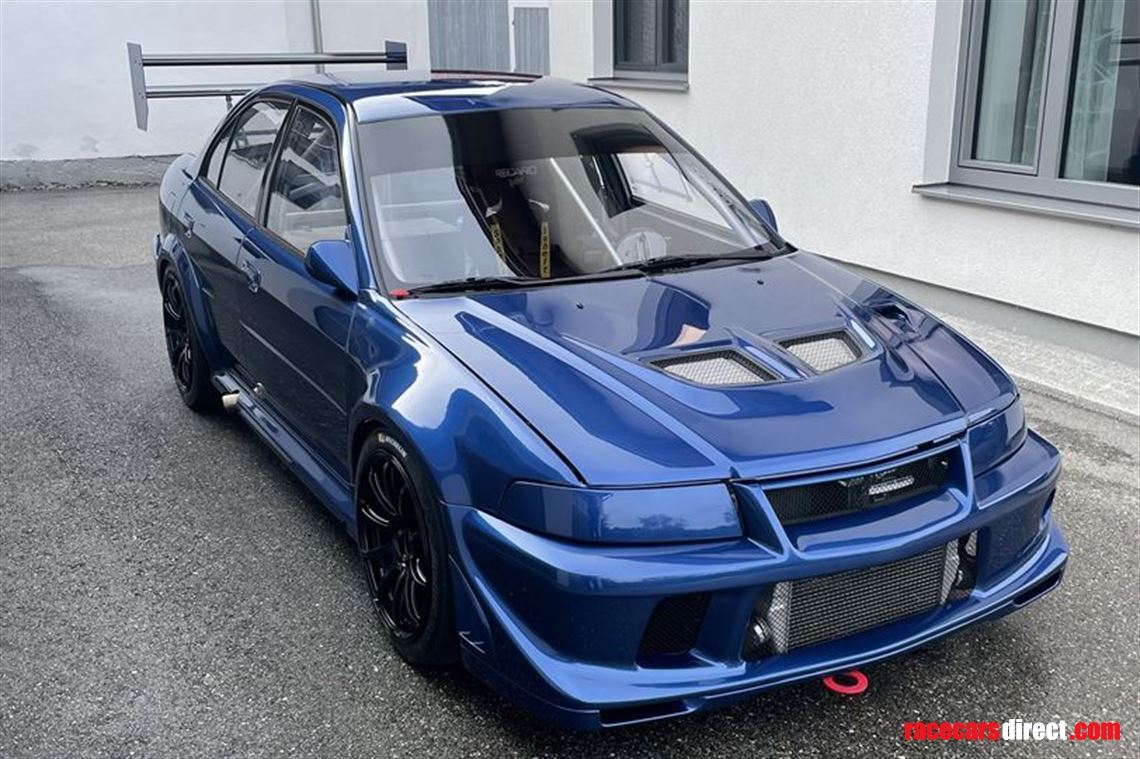

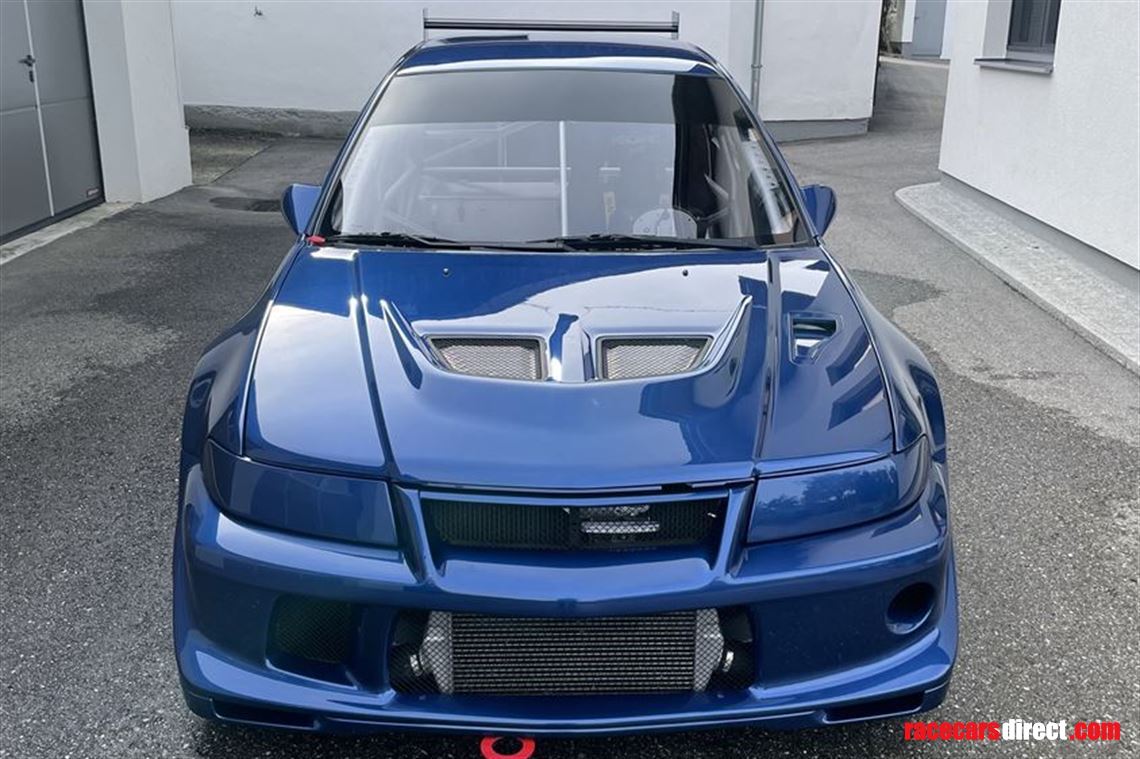

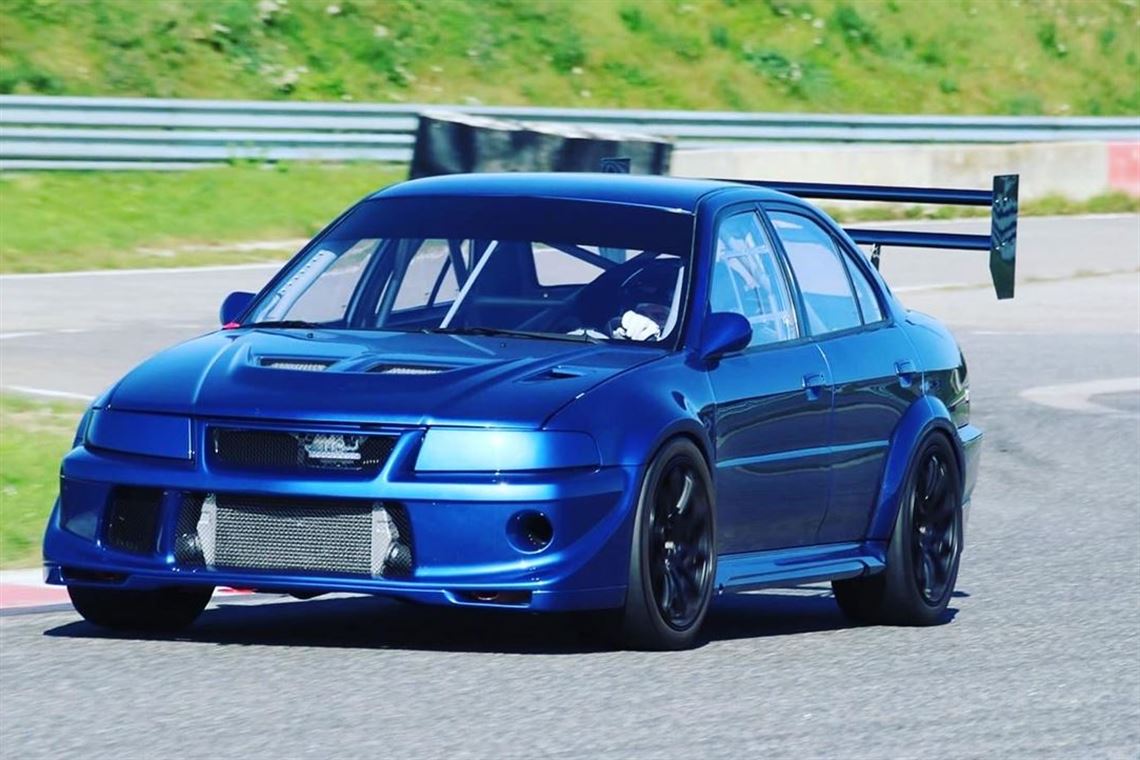

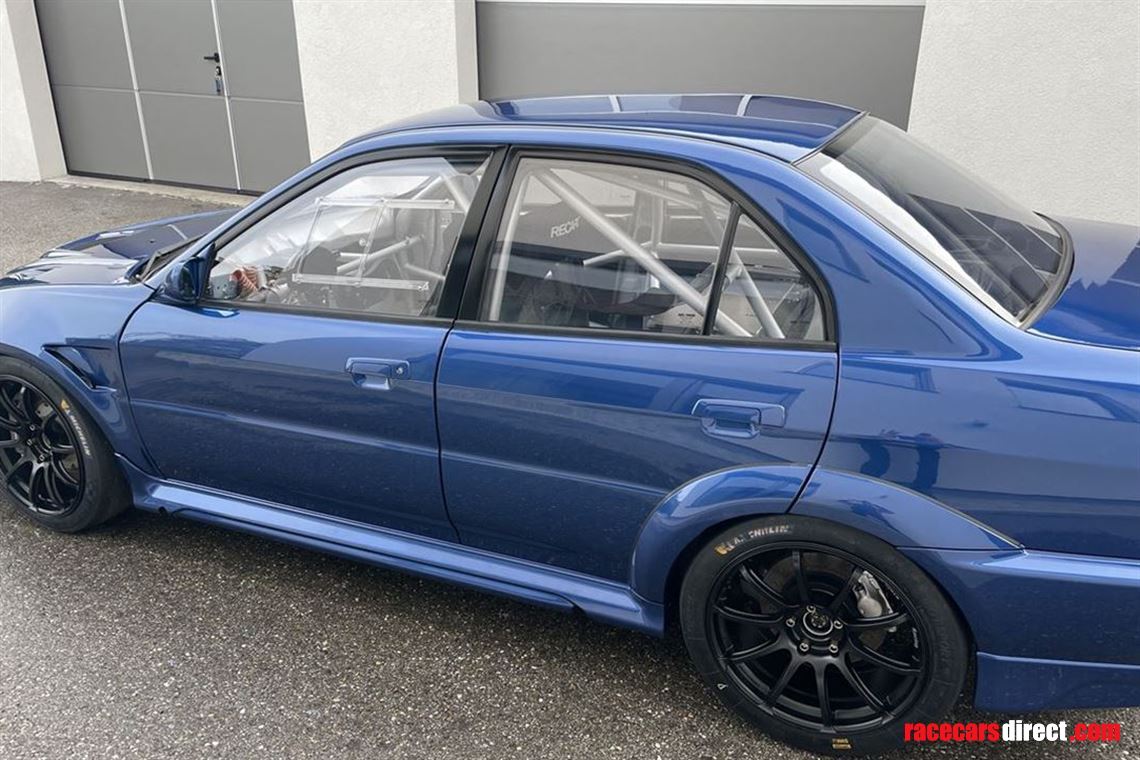

Mitsubishi lancer Evo 6 TME trackcar - SOLD

AGS

This is now SOLD. Search for similar items.

Description:

Mitsubishi Evo 6 TME racecar for sale which has been in my possession since 2015. the car was completely rebuilt on a very high level.

The base car was a rustfree TME RHD from Japan.

body:

-converted to LHD

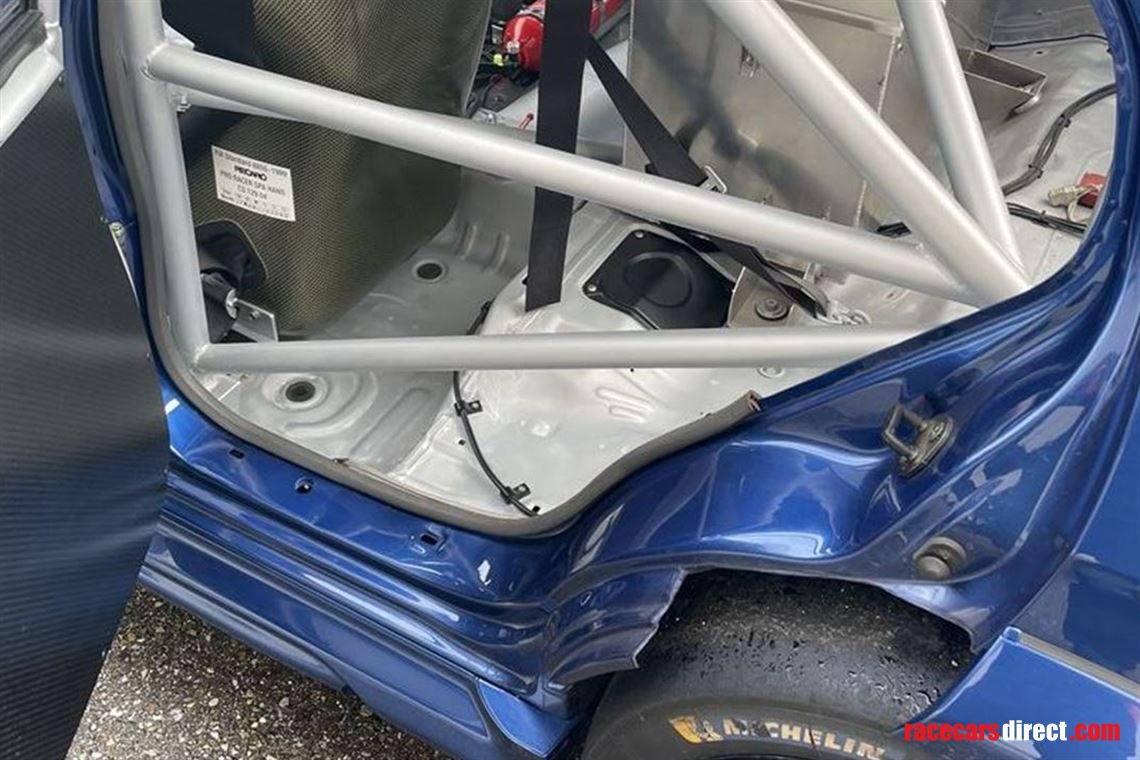

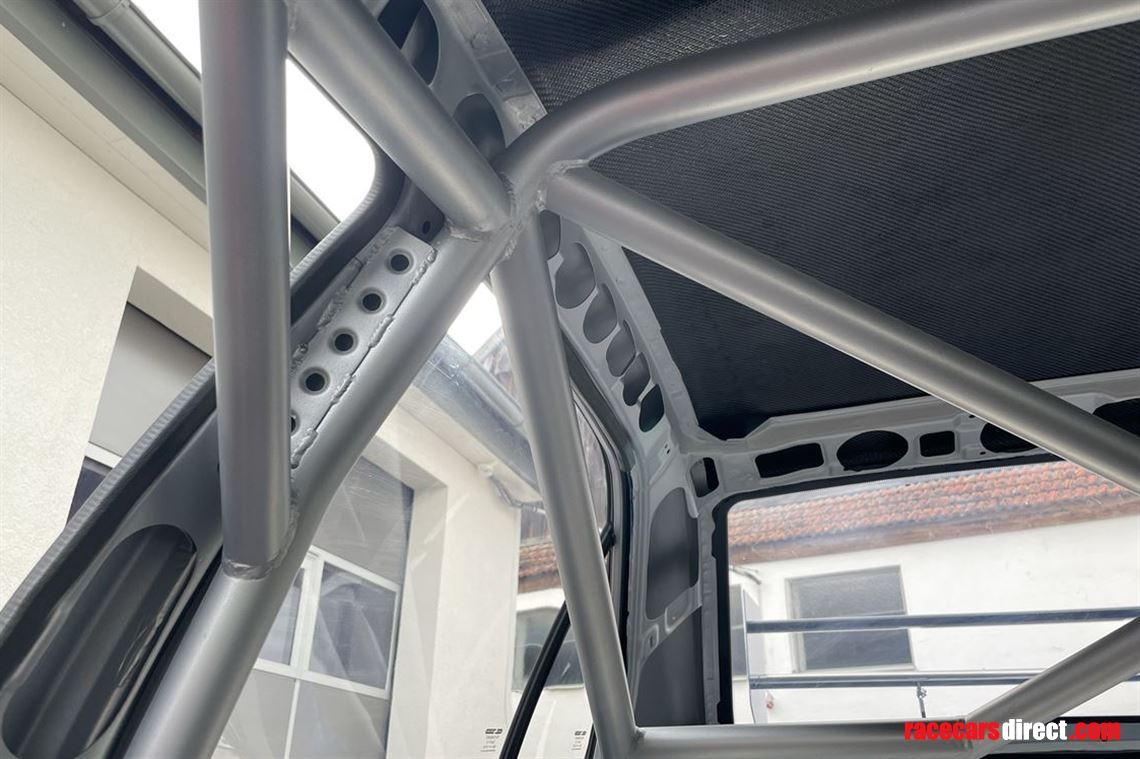

-OMP roll cage
-massive weight reduced
-CFK roof, trunk lid, headlight covers, mirrors

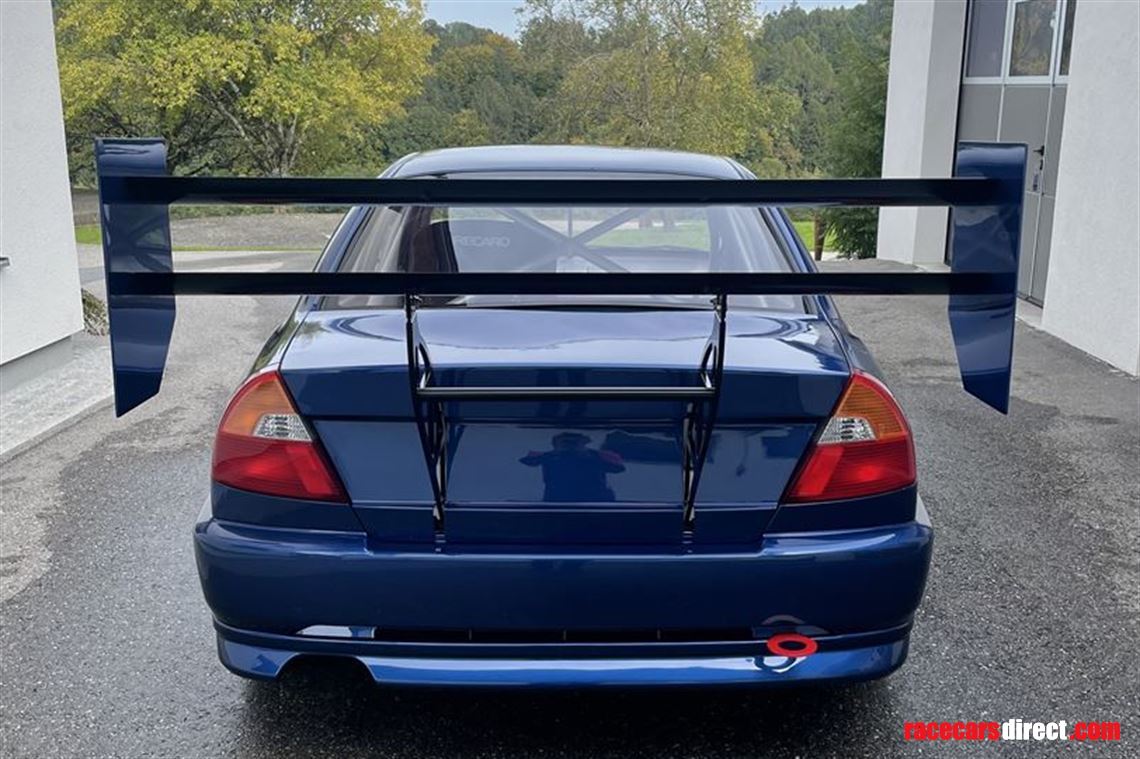

-CFK DTM rear spoiler (Carbo Tech) with CFK plates and 7075 alloy brackets
-all windows converted to lexan incl. front windscreen (plastics4performance)
-all OEM doors weight reduced with CFK covers
-lift system brackets under side skirts
-complete painted in OEM colors inside/outside
...

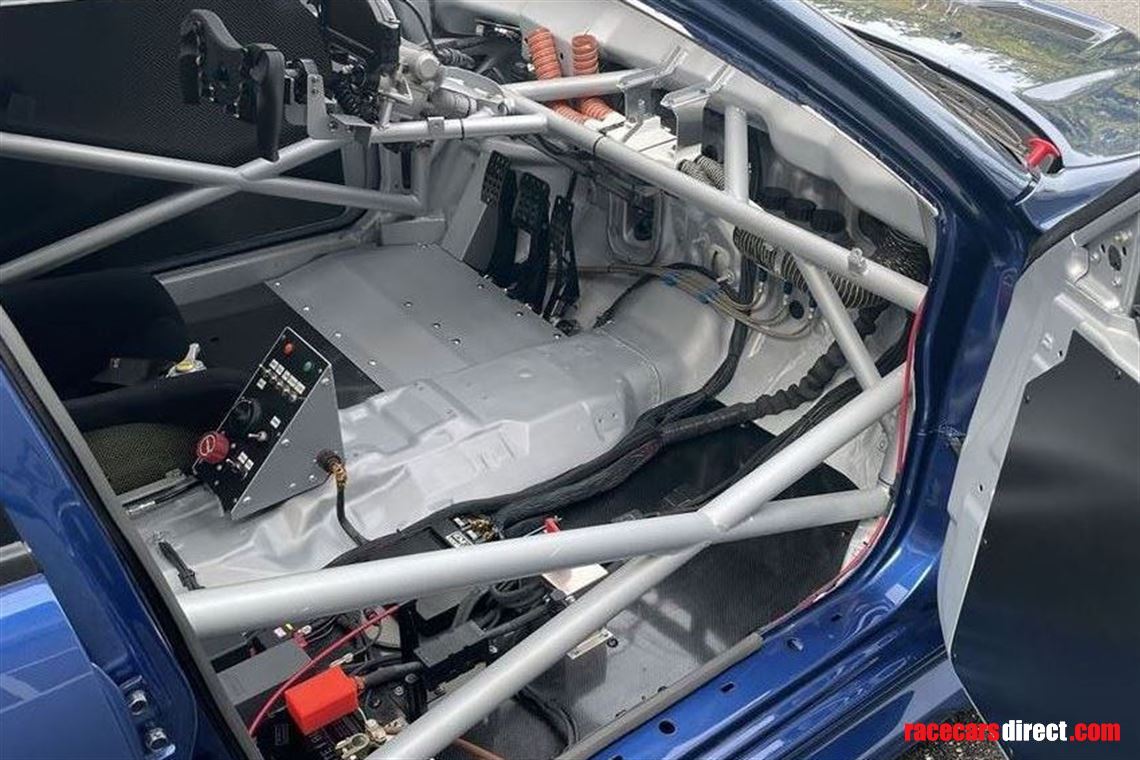

interior:

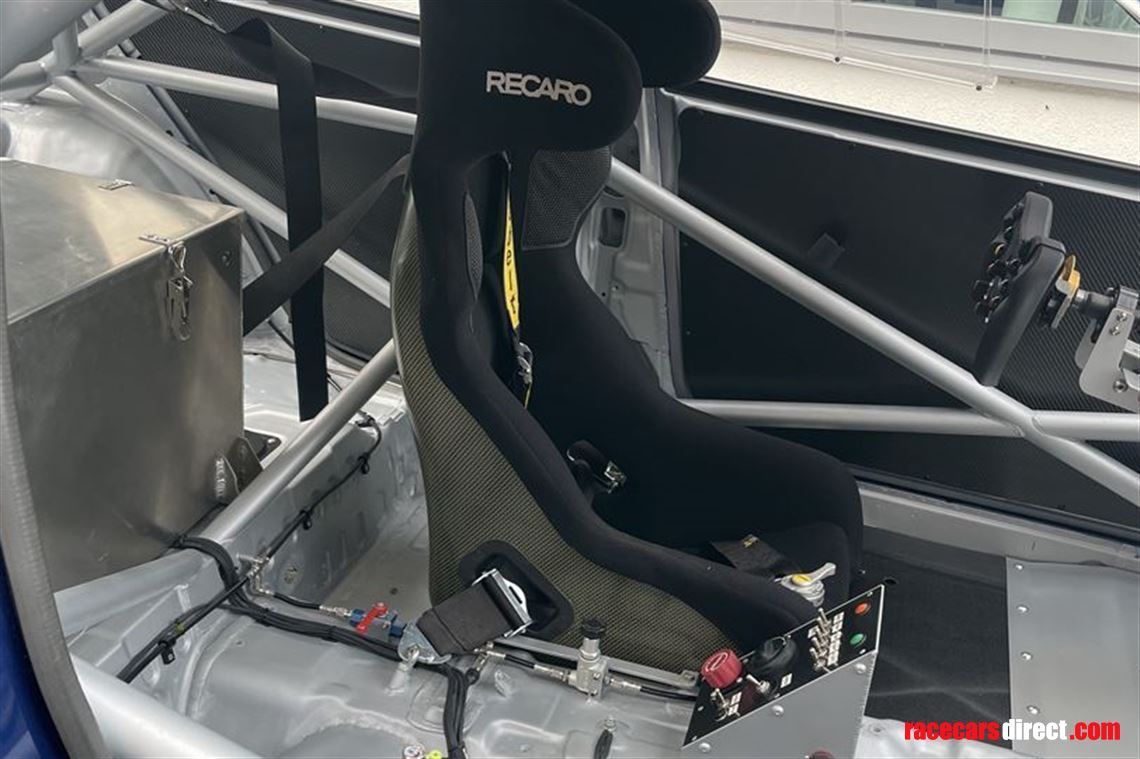

-Recaro Pro Racer SPA race seat with HANS system
-Sabelt 6 bolt seat belt
-2kg fire extinguisher

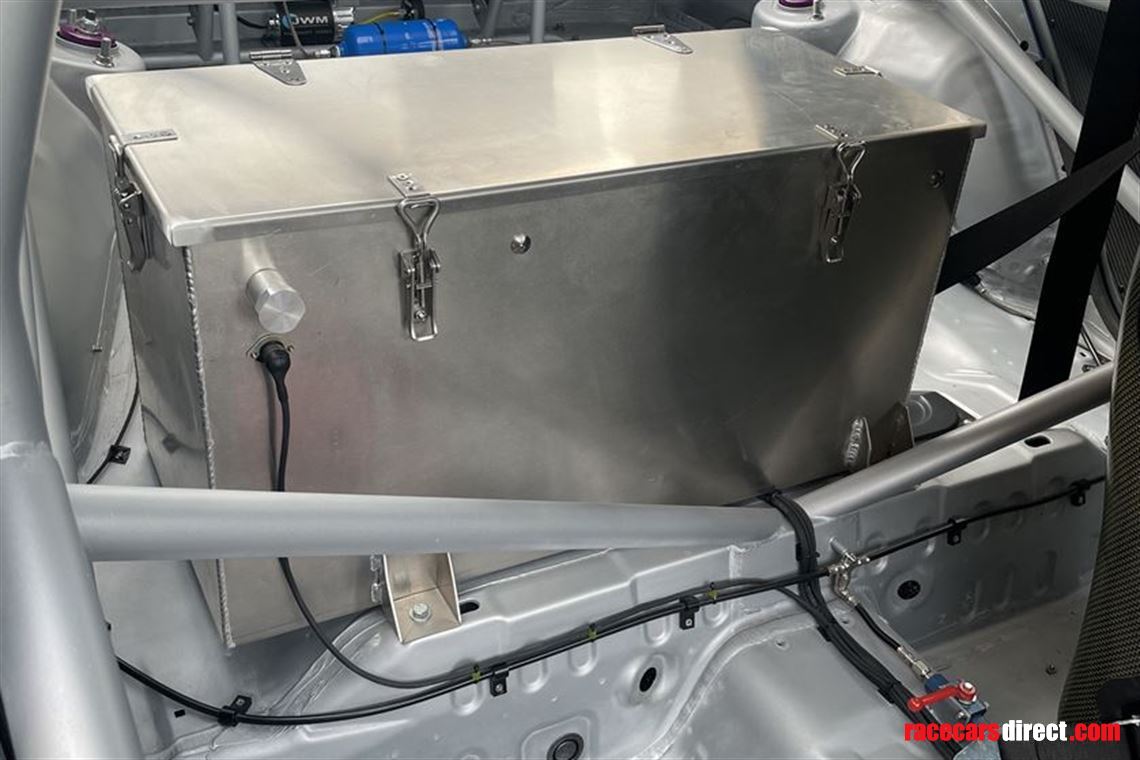

-ATL 40 ltr. fuel tank with baffle foam, VDO level sensor, AEM fuel pump 320lph, Krontec vent valve covered in a alloy case with outer connector for refueling

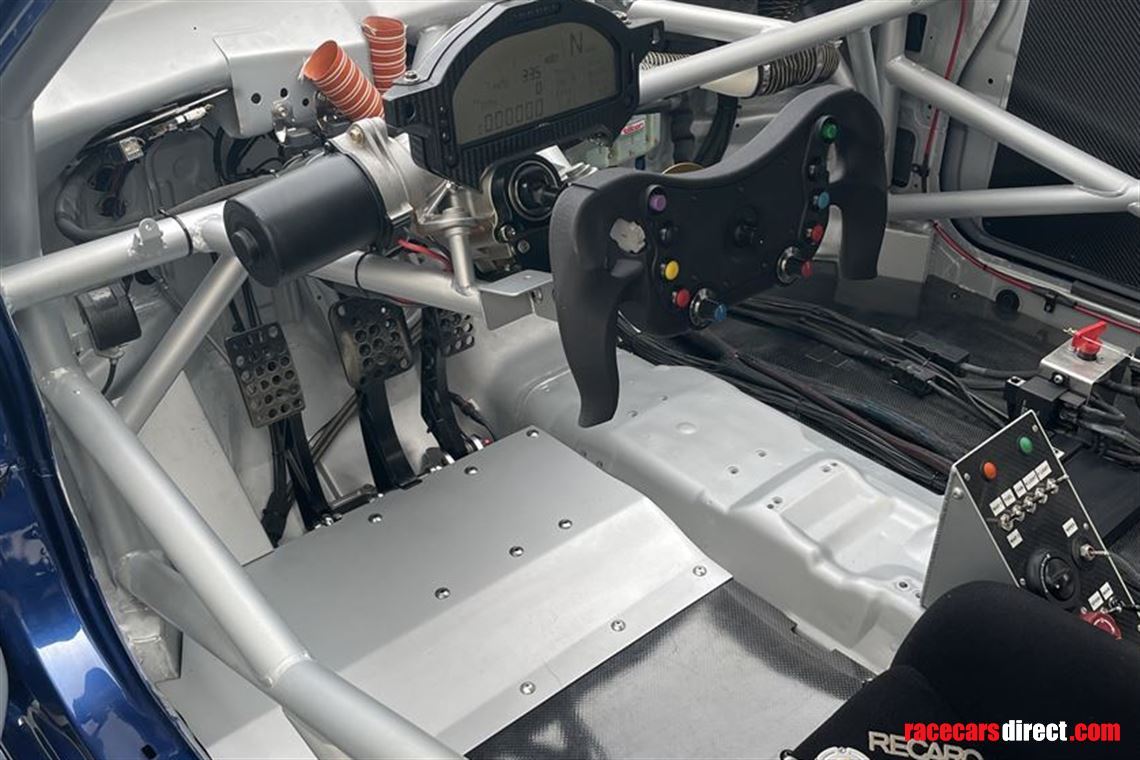

-custom fomula steering wheel with internal controller, paddles shift, traction contron, boost, steering support, flasher switches, ...
-Krontec snap off with 22pin conector
-adjustable full electric GM steering with controlled cooler ventilation
-switchbox for ignition, fuel pump, start, stop, whipers, front-, rear ligt, brake balance and front windscreen ventilation (optinal)
...

electrics:

-EMtron KV8 ECU with drive by wire, paddle shift, traction control, dual Lambda, ...
-Liteblox LB1180 Battery
-Motorsport loom with mil-spec connectors
-large 2d CAN bus Dataloggpackage with Sticklogger, µCAN, steeringontroller, GPS Mouse, strokesensors, wheelspeedsensors, brakepressuresensoren, braketemp.sensoren, tyretemp.sensoren, complete engine sensors incl.Laptop and highest level Analizer Software
-Magneti Marelli MDU230 LCD Dashboard
-complete documentaion about wiring, looms, ...

brake system:

-AP Racing CP5516-88TS pull type pedalbox
-Tilton 3 chamber reservoir
-steelflex brake tubes (Krontec)
-Alcon 365mm CR6 Race front Kit with radial cooling ducts, Pagid RS29 brake pads
-Proportioning Valve for rear brake
-valve for park brake

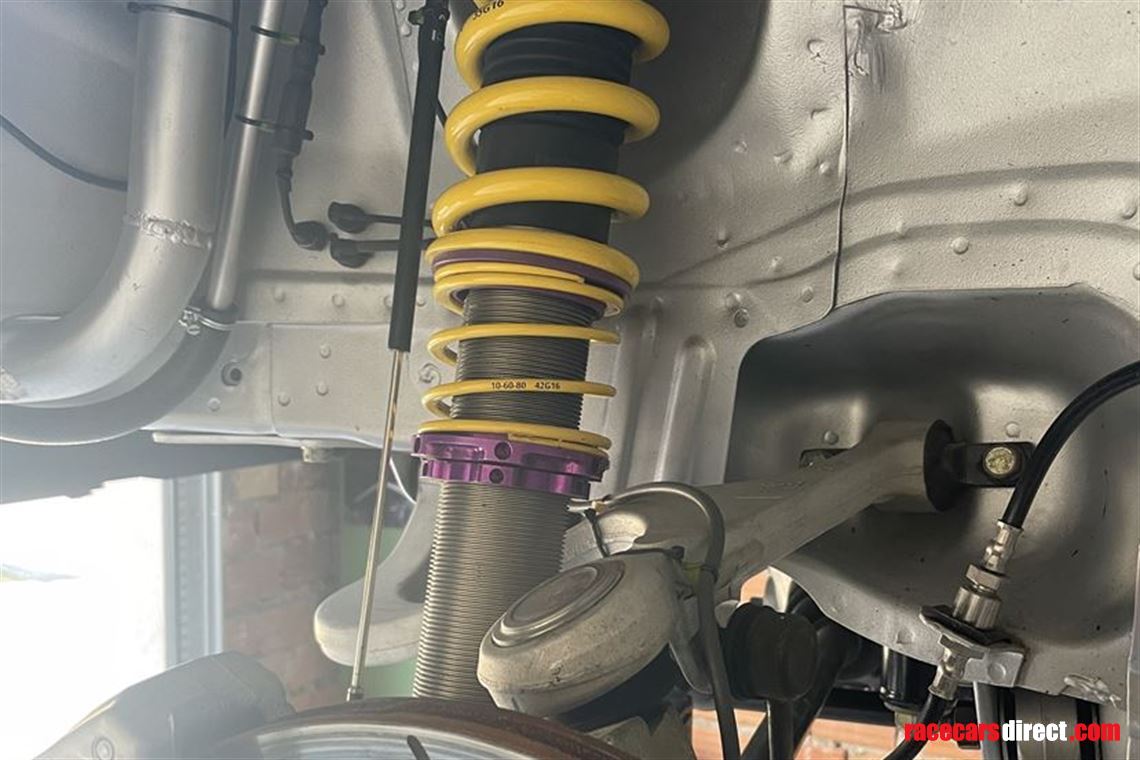

suspension/wheels:

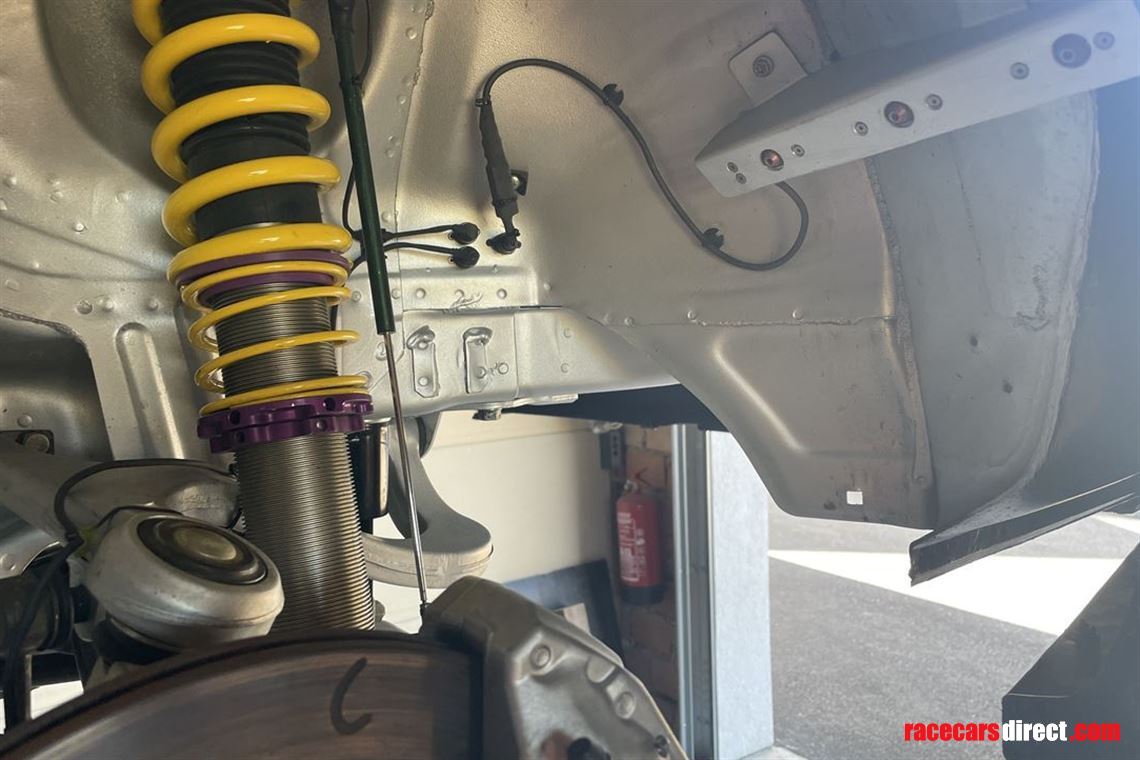

-KW Competition suspension
-KW Uniball top mounts

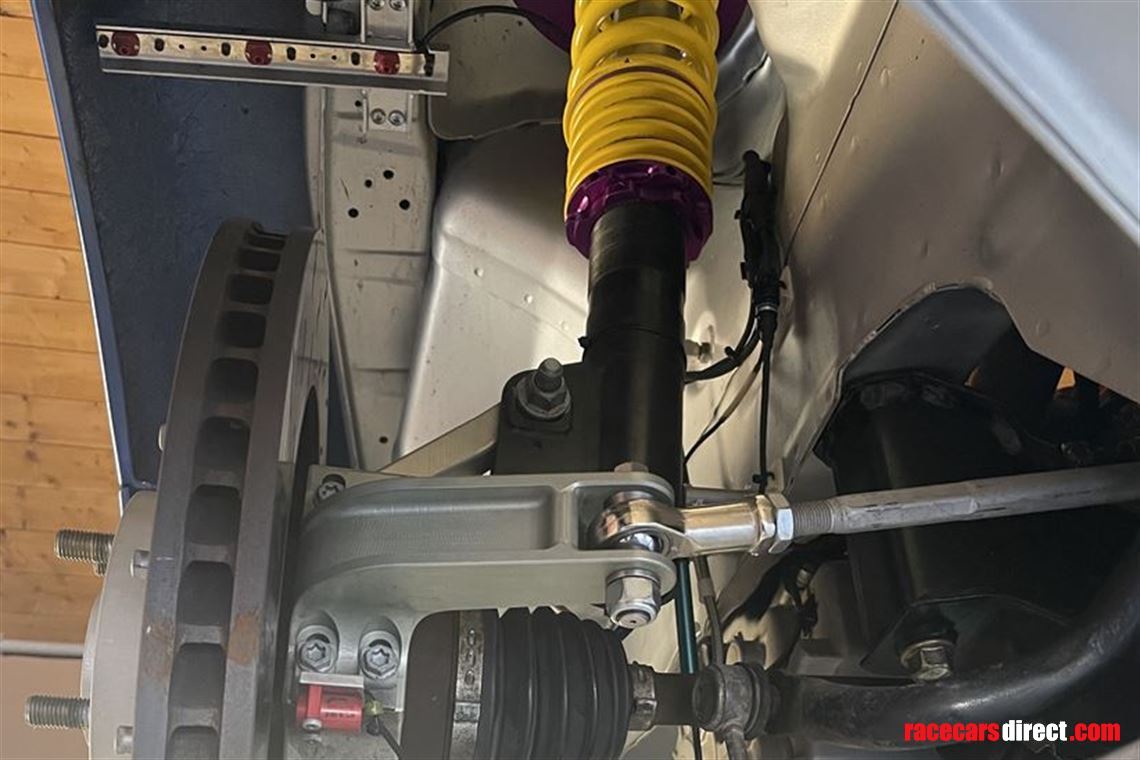

-custom aluminium 7075 front steering knuckles
-Powerflex anti roll bar and suspension arms bushes
-Advan Racing RS2 rims with Michelin 250/640/18 S9M slicks
...

transmission/drivetrain:

-sequential Drenth 5 speed (grp. N ratios) gearbox with pneumatic Hewland paddle shift system
-TME transfer box with Visco. Torsen front diff with reworked case . Drenth centre output shafts
-OEM prop shaft

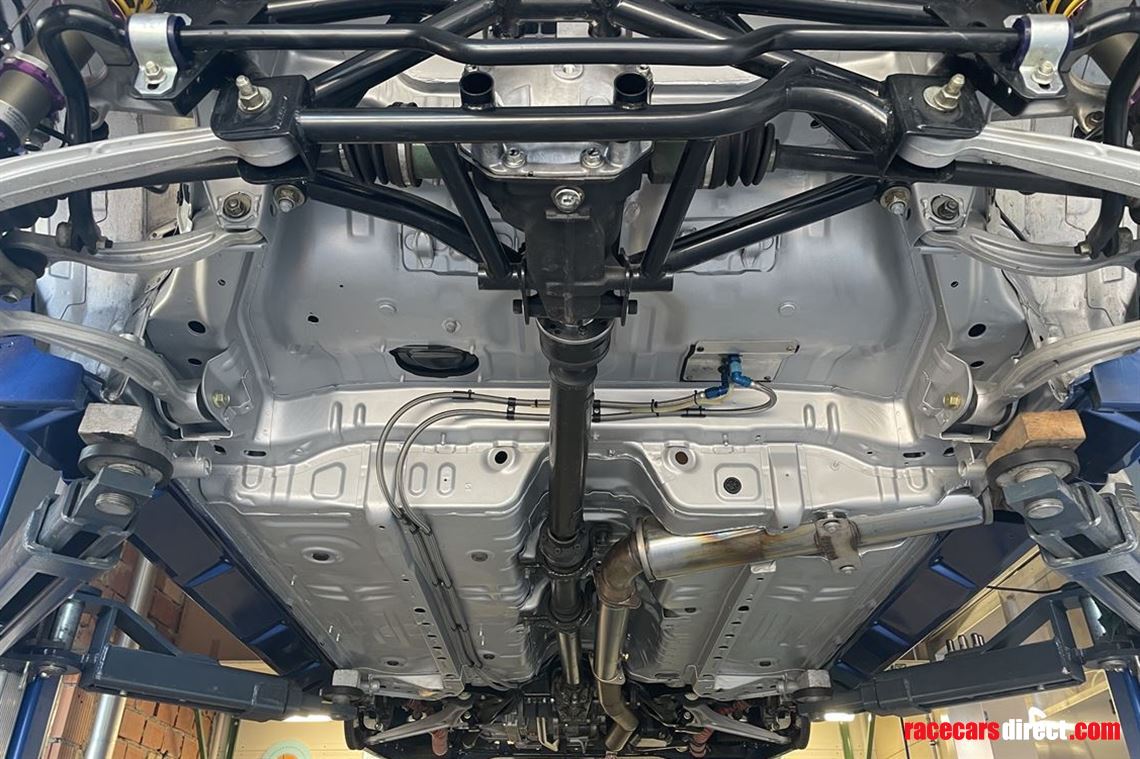

-rear RS LSd diff with Racefab Cromoly subframe
...

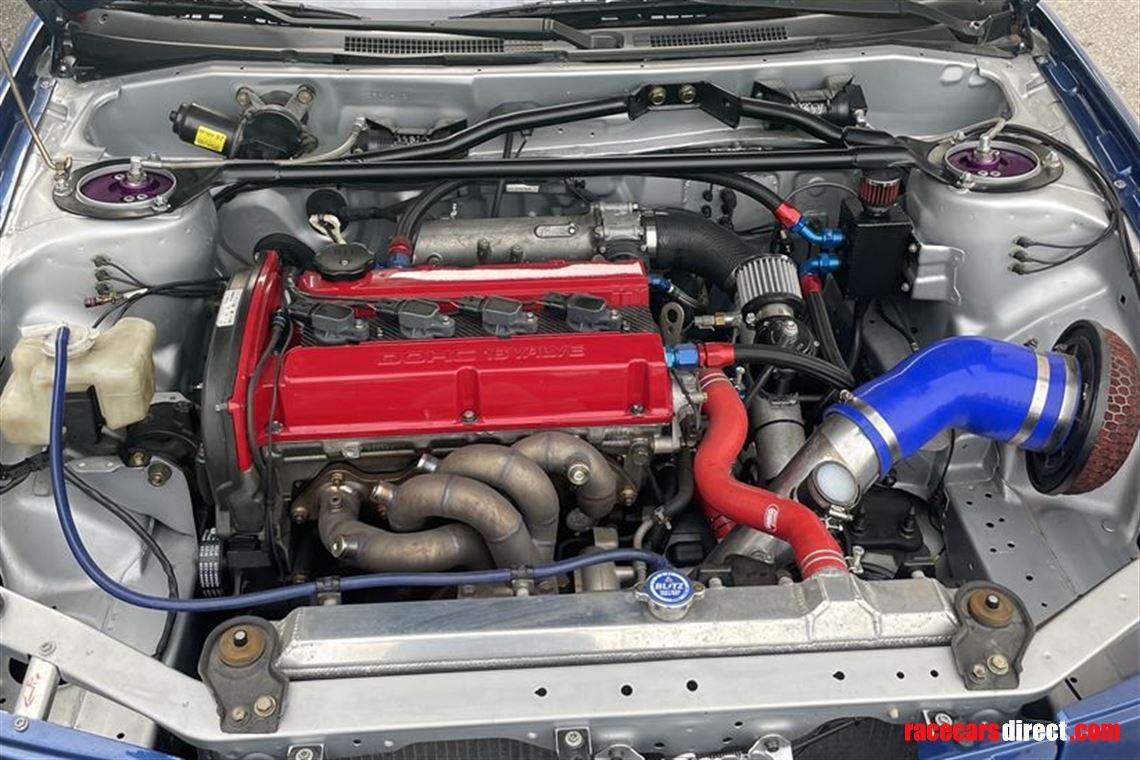

engine:

-complete engine overhaul to long rod, 400PS
-drilled and honed to 86mm diameter
-Mahle MS pistons with 9:1 compression ratio and Manley H-Beam rods
-ARP L19 head stud kit
-balance shafts eliminate
-servo pump deleted / AMS Kit
-Supertech In-,Exhaust valves and valve springs
-OEM main-,rod bearings,gaskets,seals,water pump,timing belt,rolls,aux tensioner, etc...
-Exedy Sinter clutch
-Japspeed stainless exhaust manifold with 4x Lamda- and exhaust

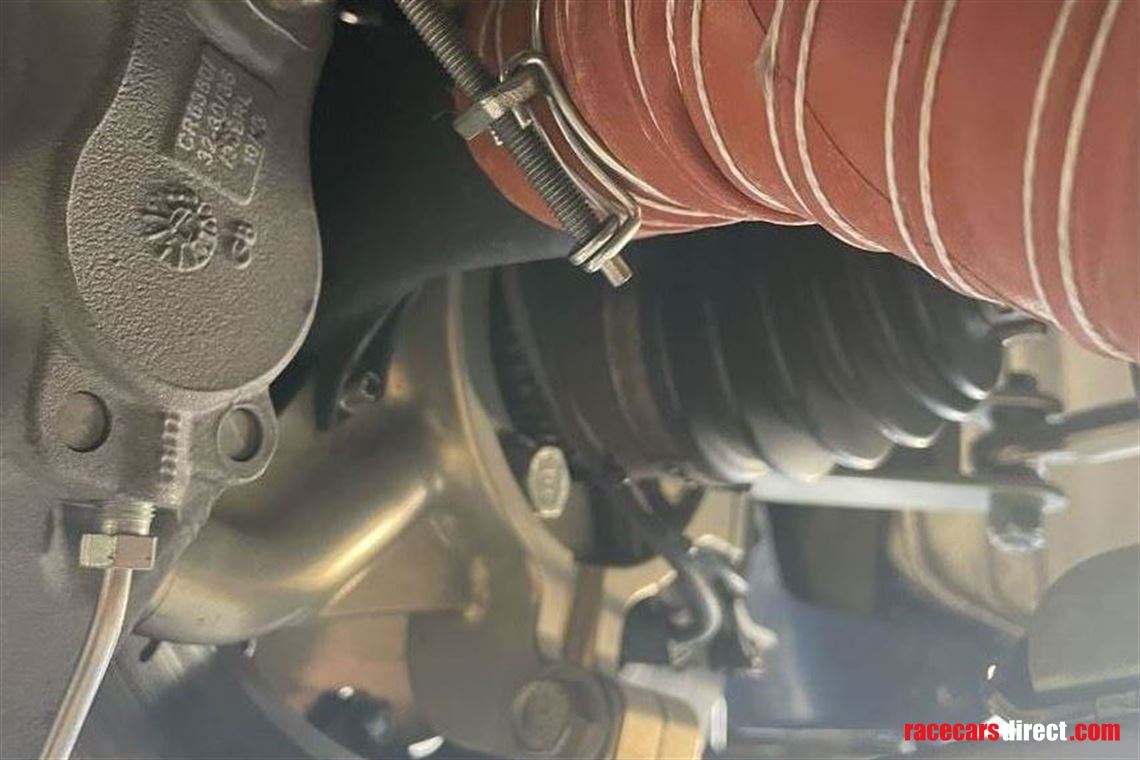

-Evo 8 Turbo

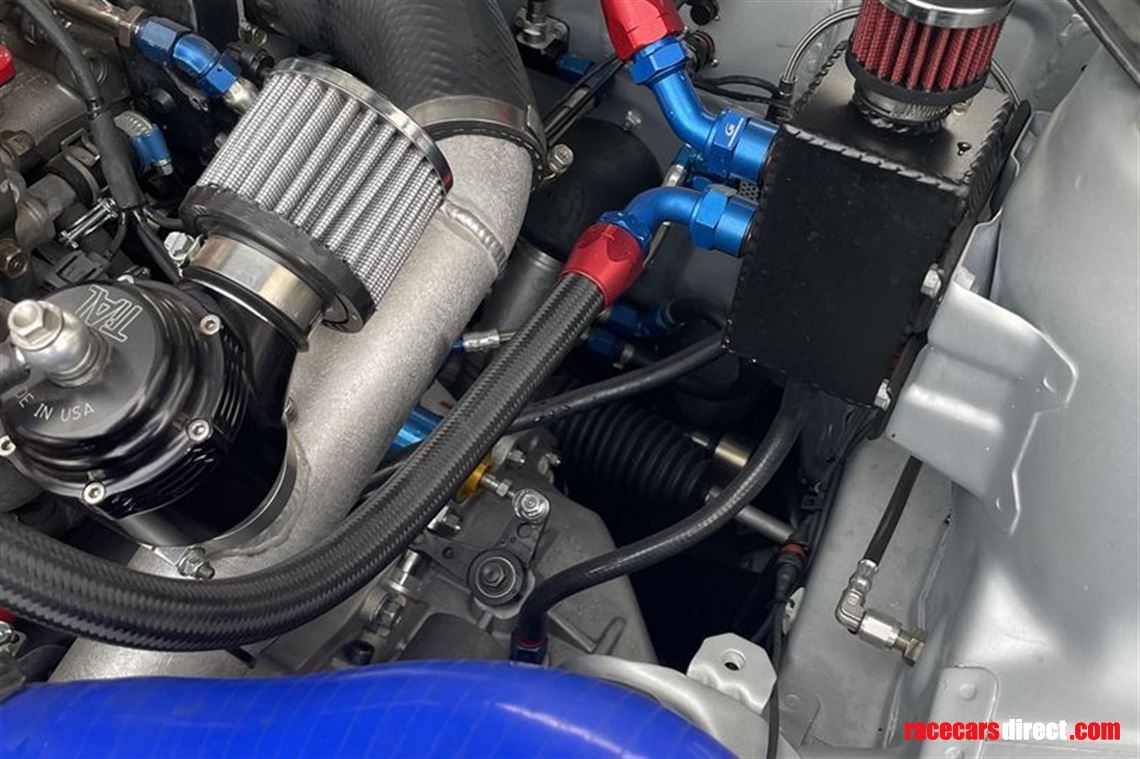

-Tial blow off

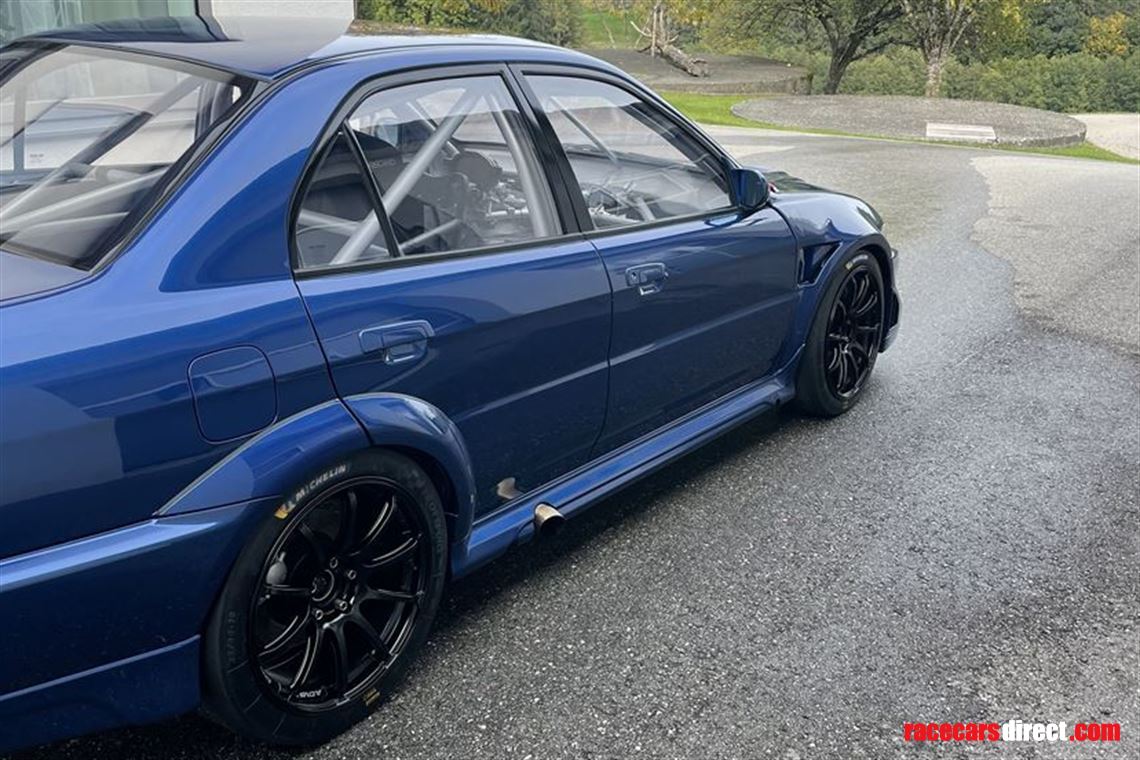

-3 Zoll custom exhaust system with side pipe
-Evo 10 throttle
-Automotive fuel pressure regulator
-Denso single single ignition coils
-big breather system with catchtank
...

and many more


all hoses/tubes for fuel,hydraulic,pneumatic are crimped from Krontec.
the engine-/gearbox are tuned from Logfiletuning/Aaron Iles. suspension and wheel loads from Dullinger Fahrwerkstechnik

the car is in new condition and built in perfection, very light, very fast, durable and still has much more potential :)
I have only driven 4 track days since the "completion" in 2020 and therefore the vehicle is technically and optically in excellent condition

according to the arrangement can without datarecording (unnecessary sensors for engine electronic, logger, GPS, analizer software)

exchange for an OEM street legal Evo 5/6 is also possible

accessories:

1 set Michelin rain tyres with XXR 527 18" rims
12 Volt Fill-Rite fuelpump complete with tube and battery to refill
Final Drive ratio 3.929
spare electronic parts and sensors
spare pneumatic paddle shift valve
AP CP6465 brake cylinder

the car is located in Austria in 4923 Lohnsburg

for more informations and pictures please contact me

thanks
