Description:

BMW S55 twin turbo engine, Drenth sequential, Ohlins, GT4 suspension, 6 events since new.

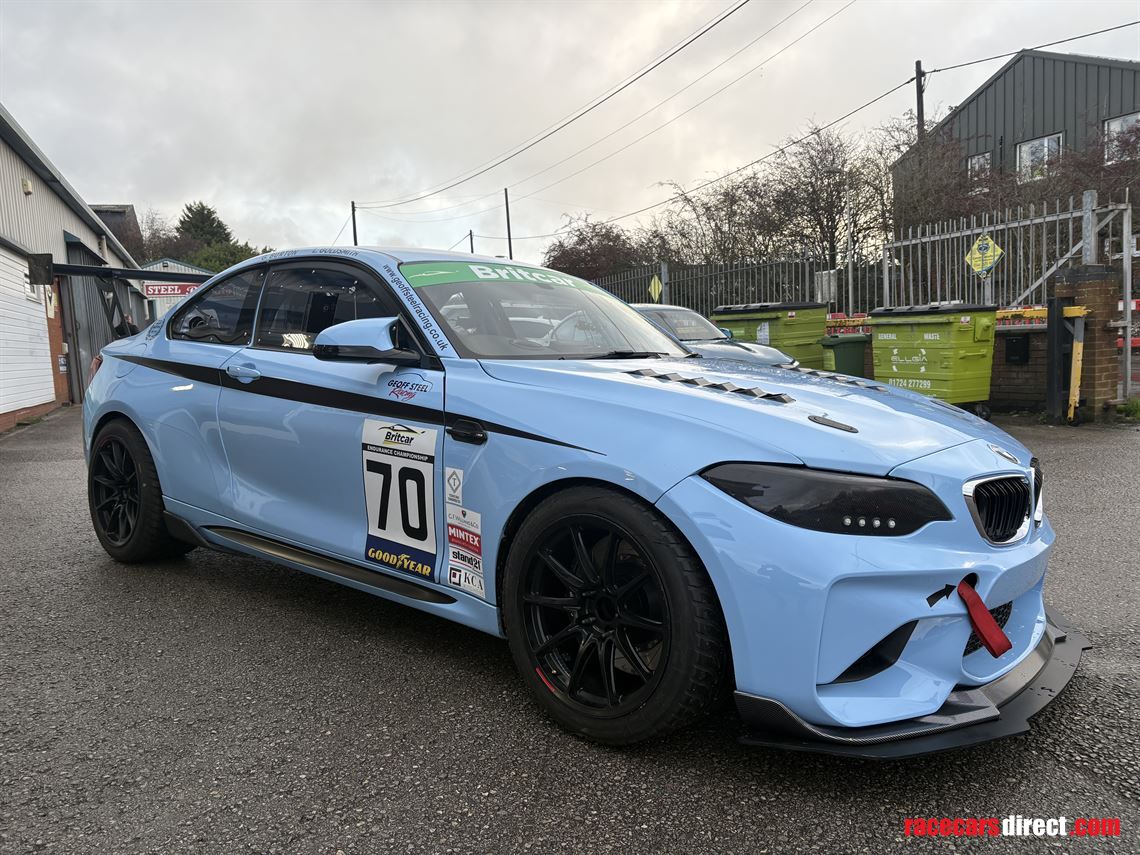

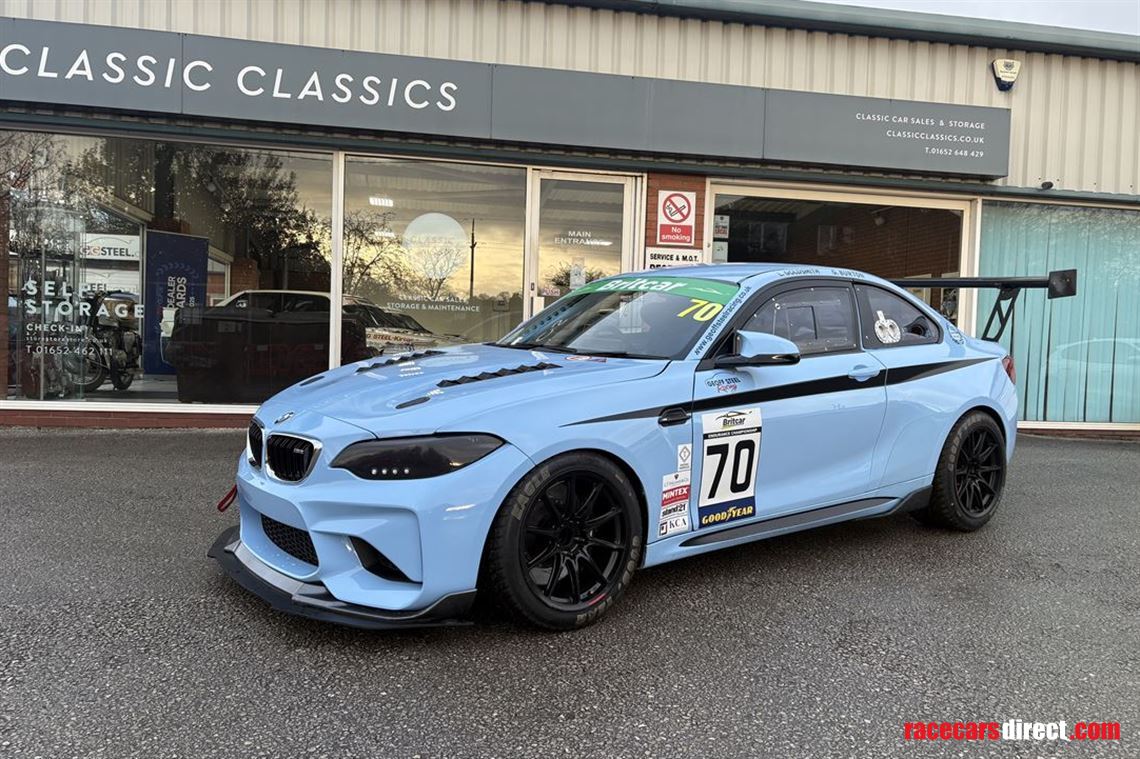

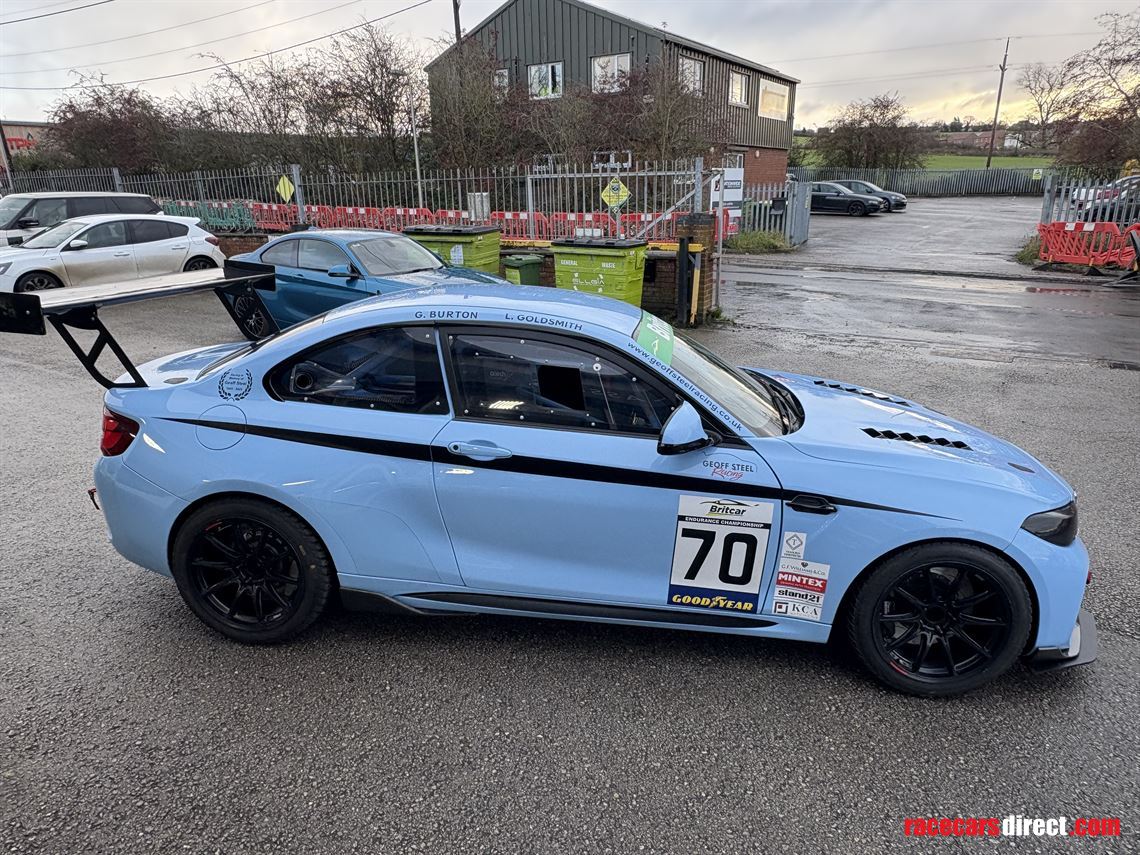

BMW M2 Competition. New build over winter 2024-2025 and only competed in 6 Britcar events since new. Only for sale due to unexpected bereavement of the owner on behalf of his wife.

When the decision was made that our client wanted a new race car we decided that a BMW factory built M2CS or M4 GT4 was the way forward. We proceeded to view a few cars, look at the specification, power, weight etc and decided we could build something more competitive in the current UK race class structure ourselves. We knew we could build something lighter and more powerful than the GT4 counterpart.

Dry weight 1350kg

Multiple maps to suit different power to weight ratio’s:

502 bhp-460ft/lbs      (370 bhp/ton)

480 bhp-450 ft/lbs      (350bhp/ton Britcar GT class/Supersport Endurance Pro A)

419 bhp-450 ft/lbs      (310bhp/ton Britcar Trophy class/Supersport Endurance Pro B)

We decided to take all the best bits from the M4 GT4 car such as suspension arms, Ohlins dampers and Drexler diff and build them into the M2 chassis. From this stage we added light weight panels, light weight, motorsport spec wiring harness and tried to remove as much as weight as possible.

The full specification:

T45 TIG welded multipoint cage

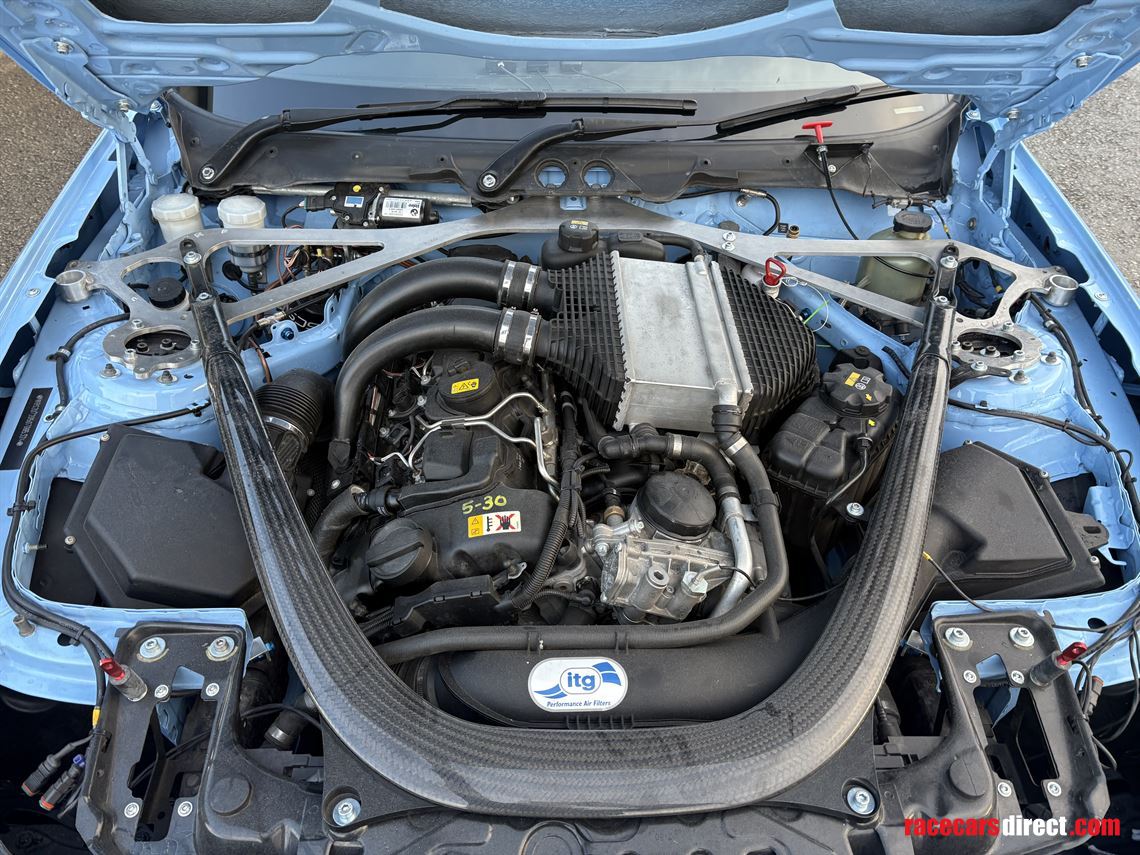

BMW M2 F87 Competition, 3 litre, twin turbo S55 engine

Crank hub lock modification as required for extreme use

Inlet valve lift fixed to max lift

TTV lightweight flywheel with triple plate 7.25” clutch and HRB

SCS Delta GDi6 ECU with maps to suit 350bhp/ton and 310 bhp/ton

Drenth DG500 sequential gearbox with Geartronics Easyshift, 3 races since new (we originally built this car using the standard DCT gearbox but unreliability forced the swap to the Drenth after Snetterton Britcar race in May 2025)

BMW Motorsport, Drexler GT4 diff with cooling

GT4 driveshafts supplied by BMW Motorsport

Ohlins 3 way adjustable dampers

BMW Motorsport adjustable anti roll bars

GT4 uniball suspension components, all supplied by BMW Motorsport

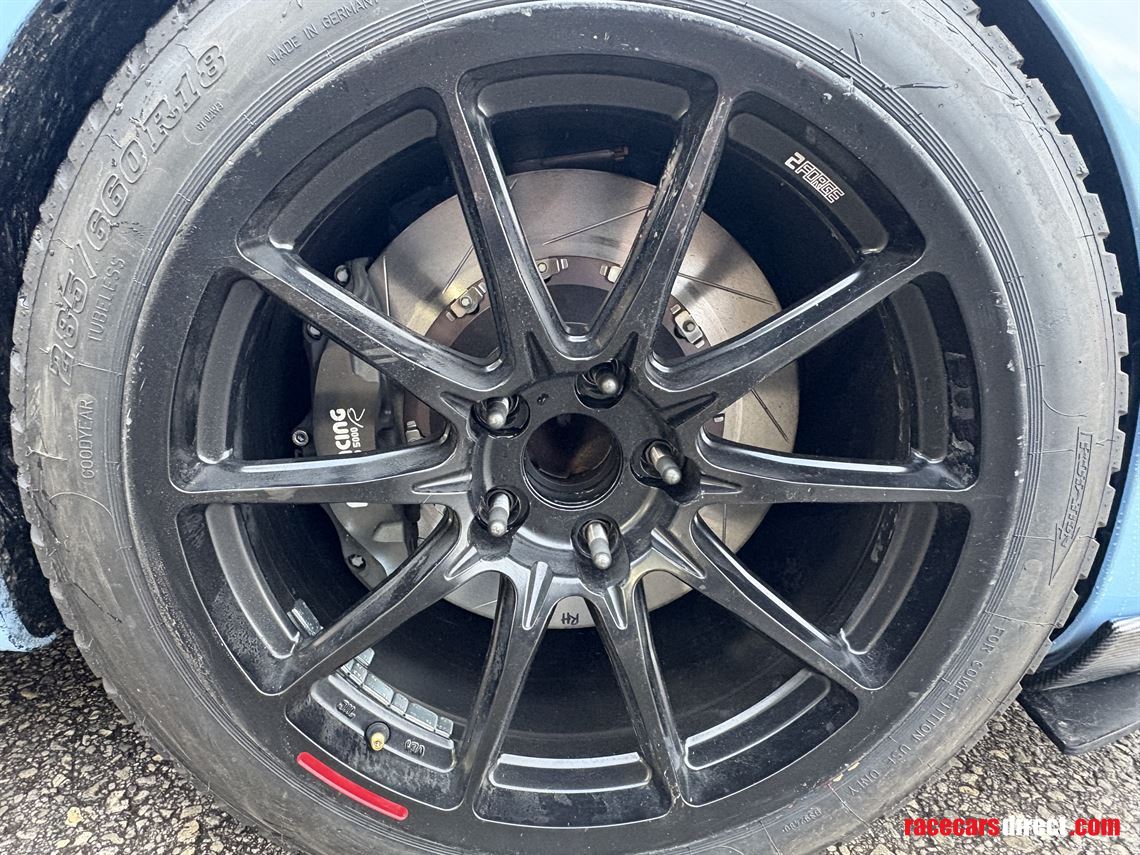

AP Racing 6 pot, 378mm front brakes (new front rotors)

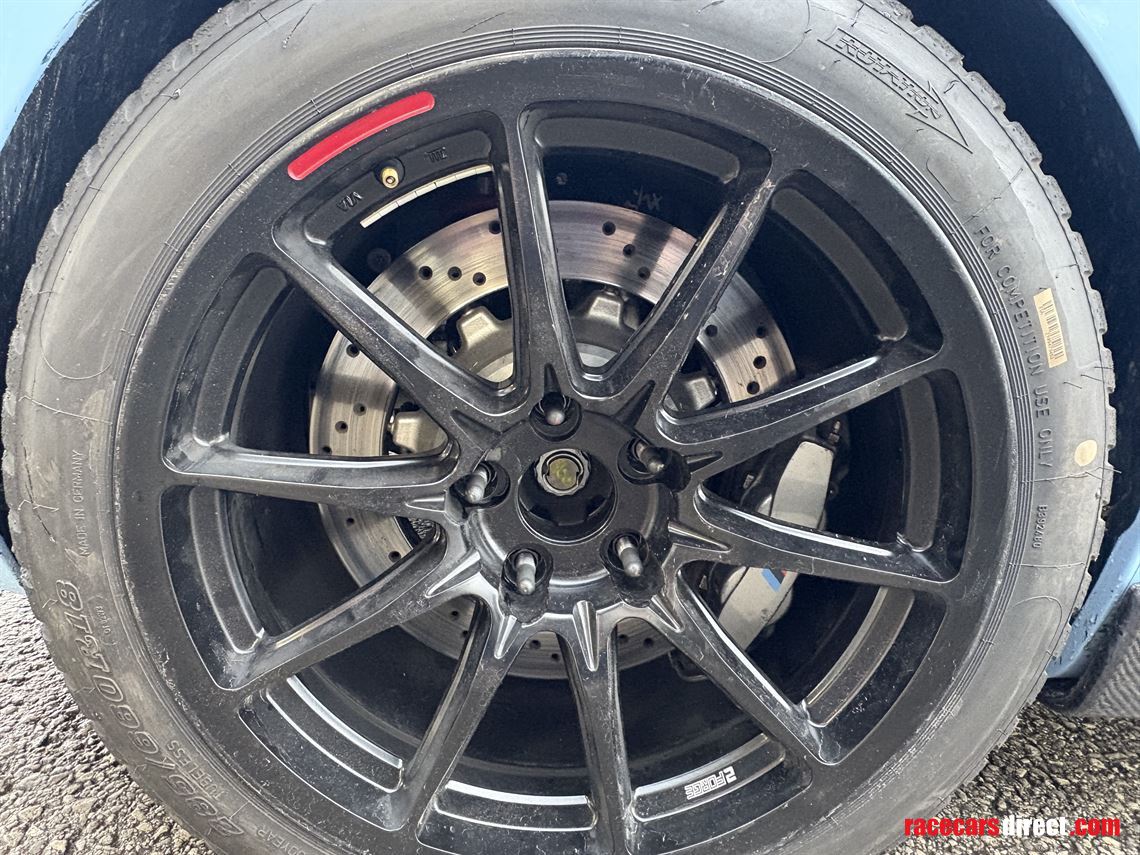

BMW M Sport 4 pot, 380mm rear brakes

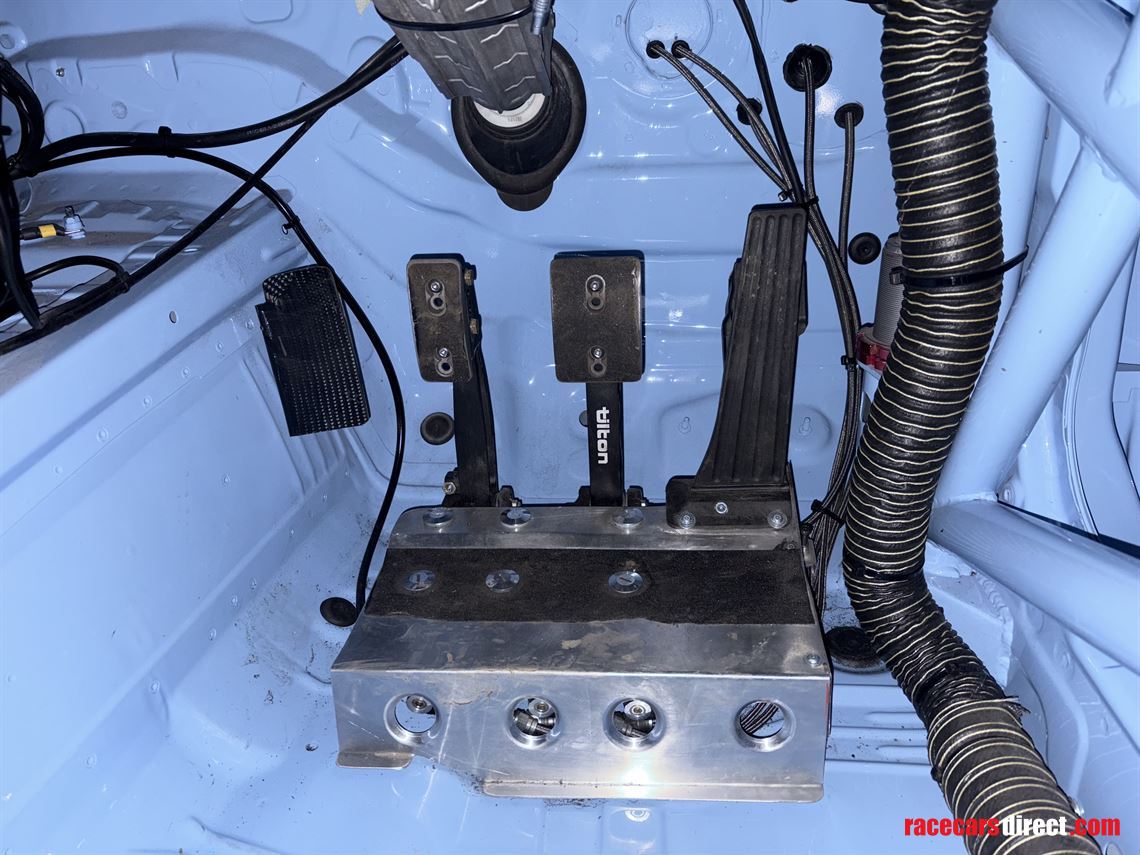

Tilton 600 series adjustable bias pedal box

SCS Delta Motorsport 10 way adjustable ABS

10 way adjustable traction control

Hand built, light weight exhaust system-very quiet, fine for track days

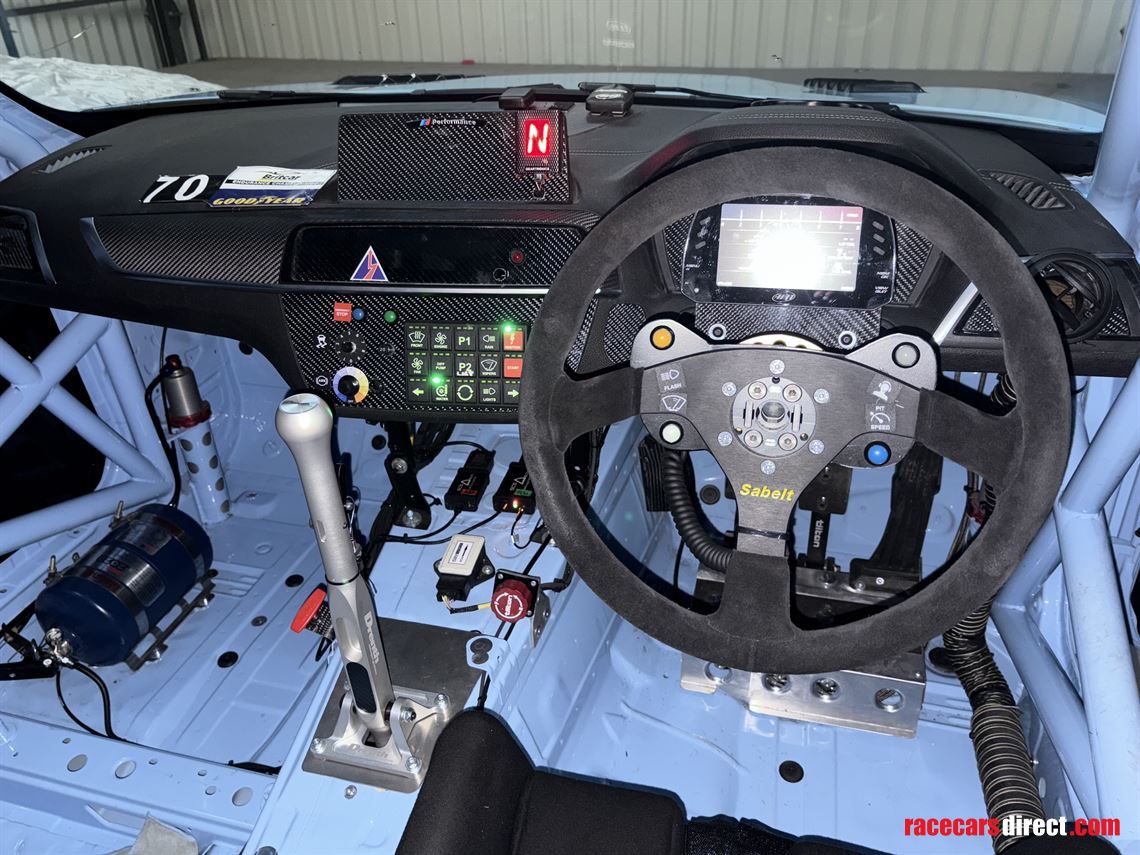

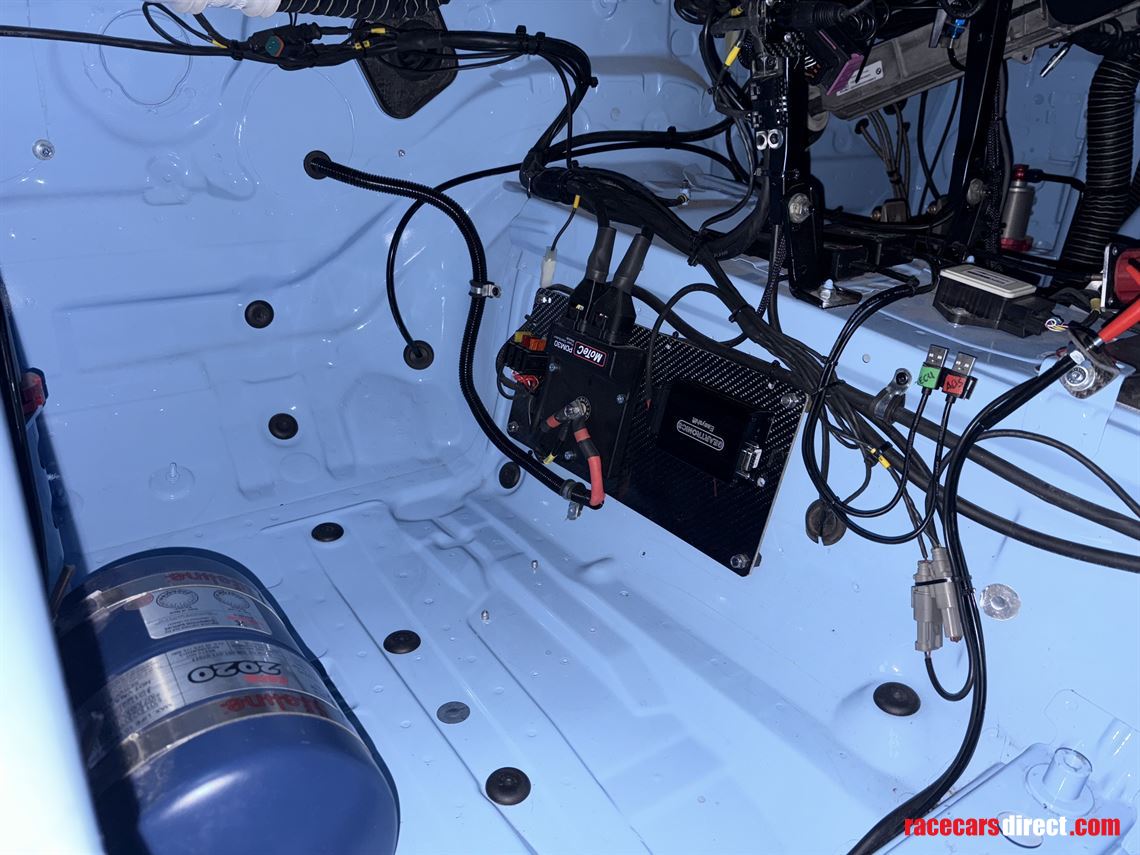

Motec PDM30 with Motec 15 button touch pad

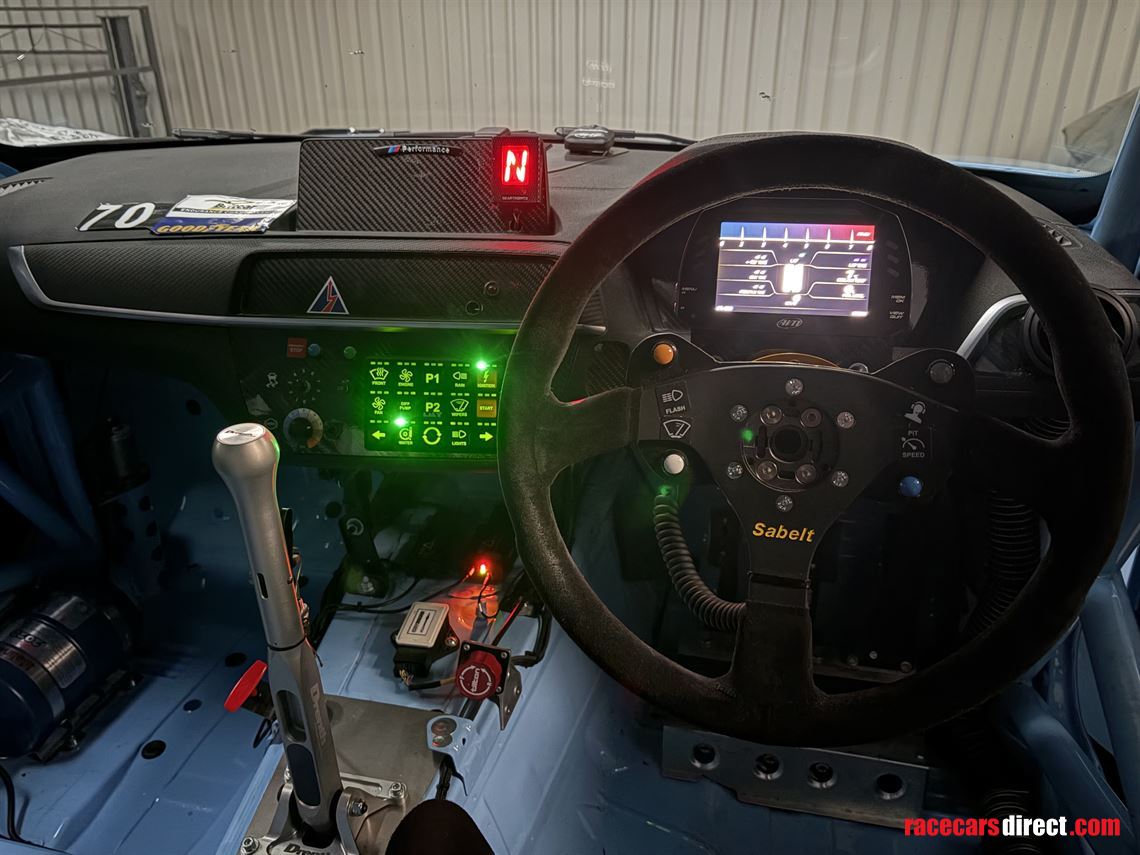

AIM colour dash display with shift lights and data logging

Millspec, motorsport chassis loom (manufactured by Bremax Electronics)

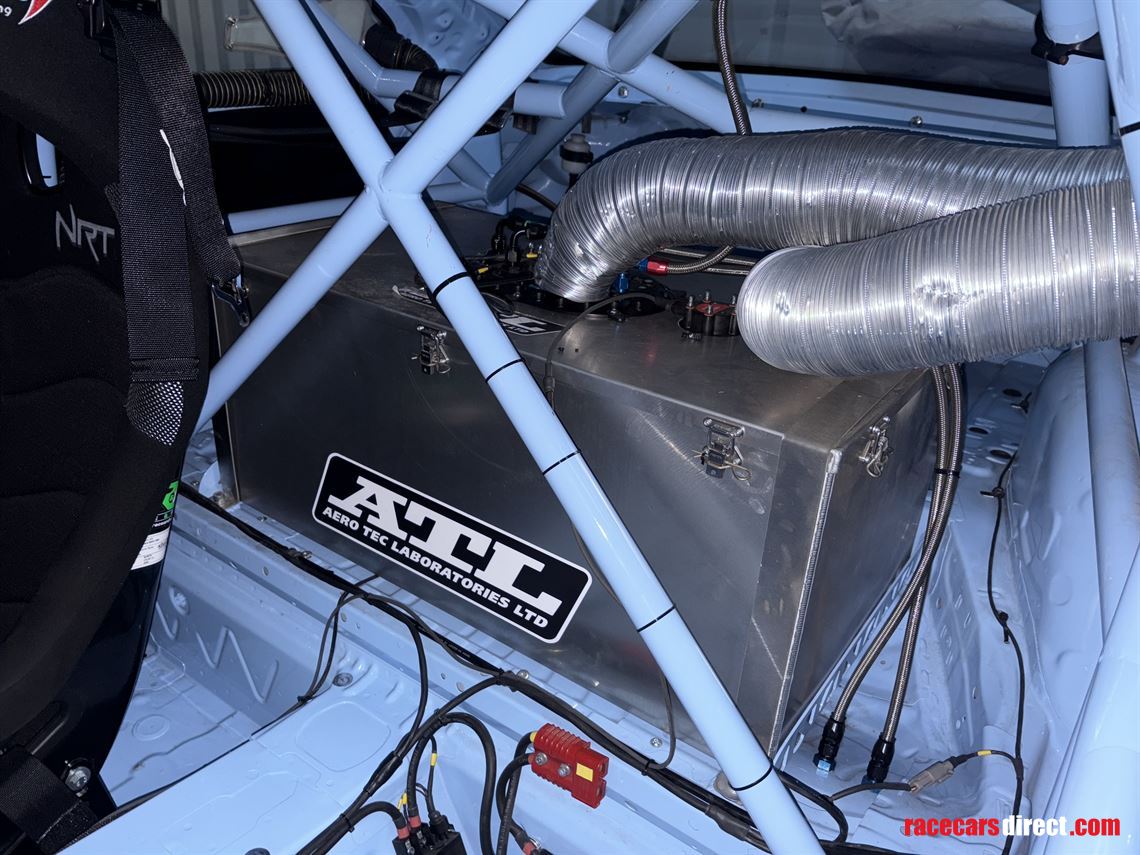

120 litre fuel cell with twin dry break filling

Airjacks

ITG air filters

Diff and gearbox coolers

Composite, light weight doors, bonnet, boot, front wings

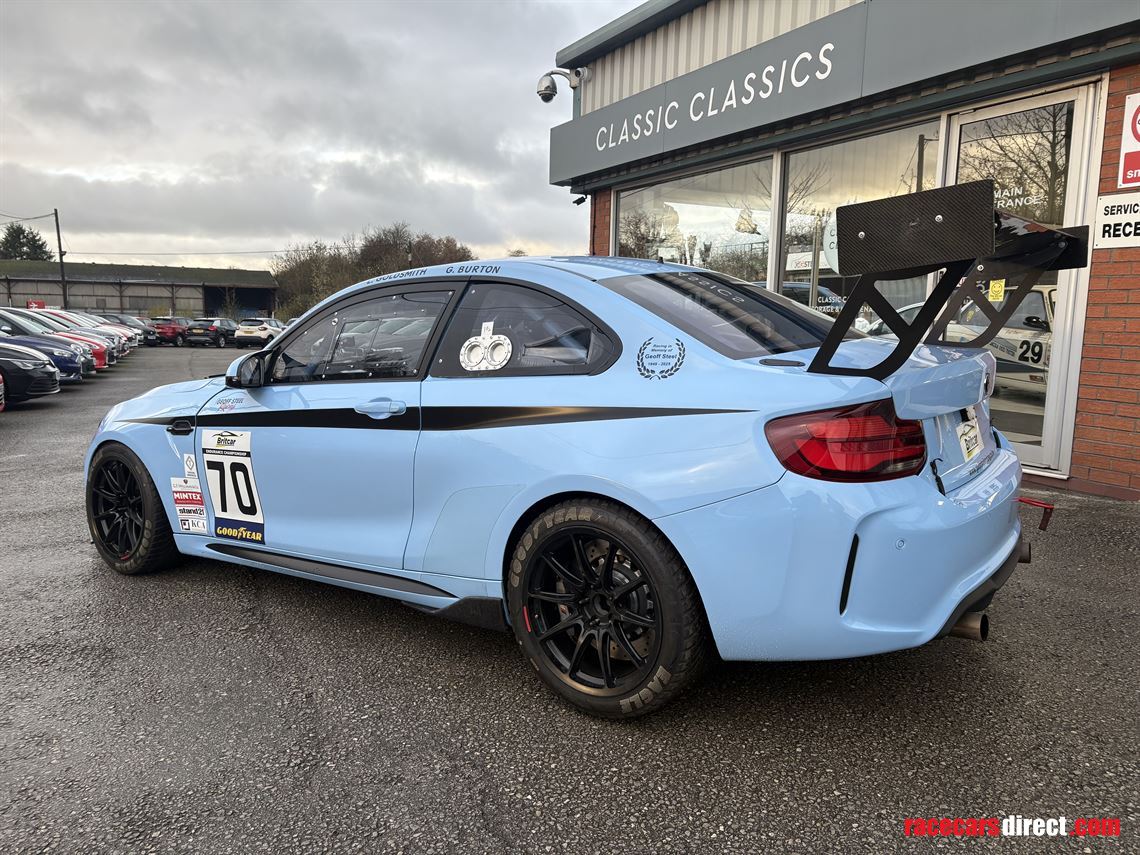

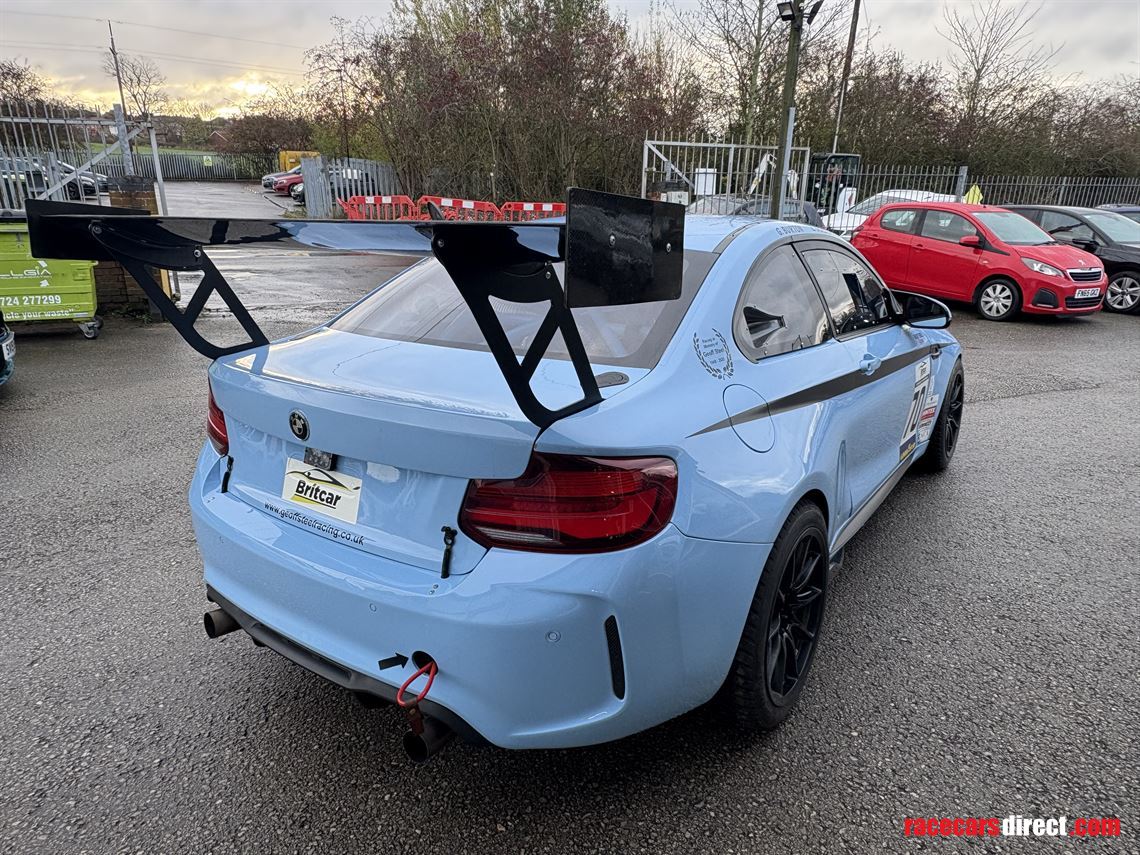

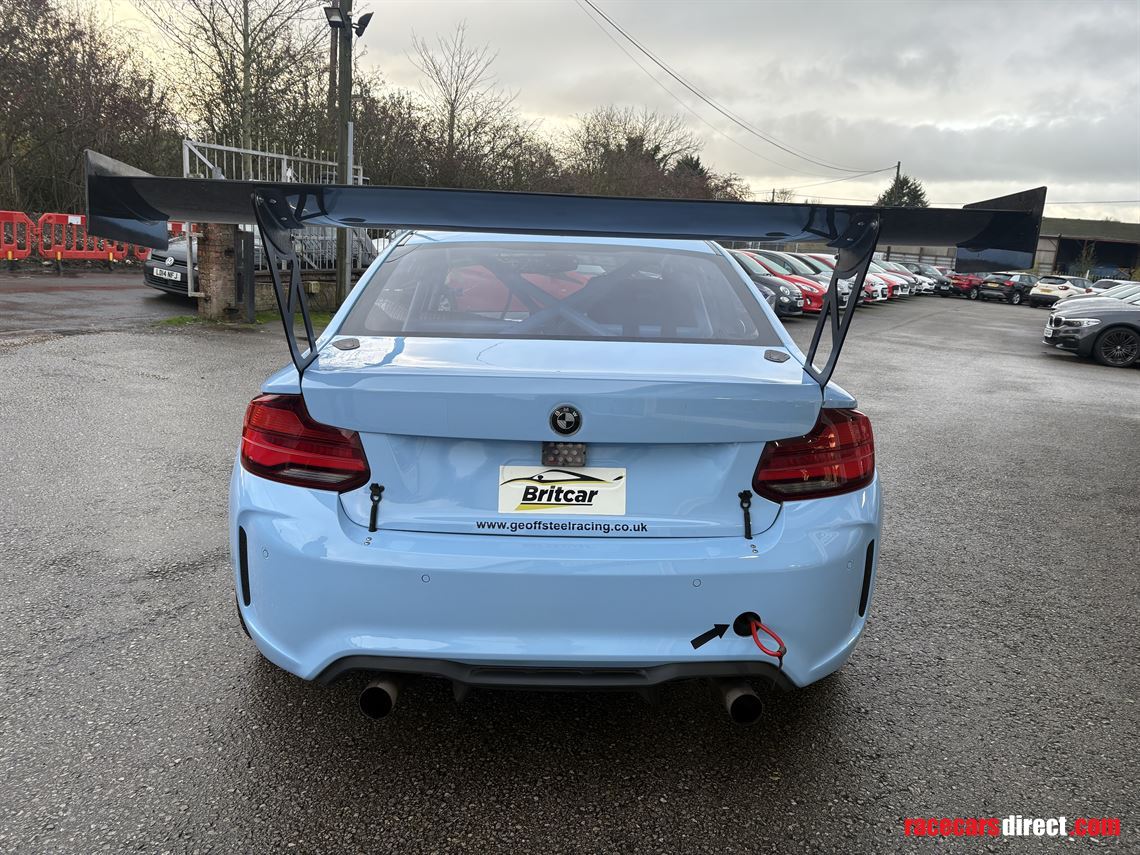

Carbon rear aero wing

Polycarbonate windows with driver cooling ducts

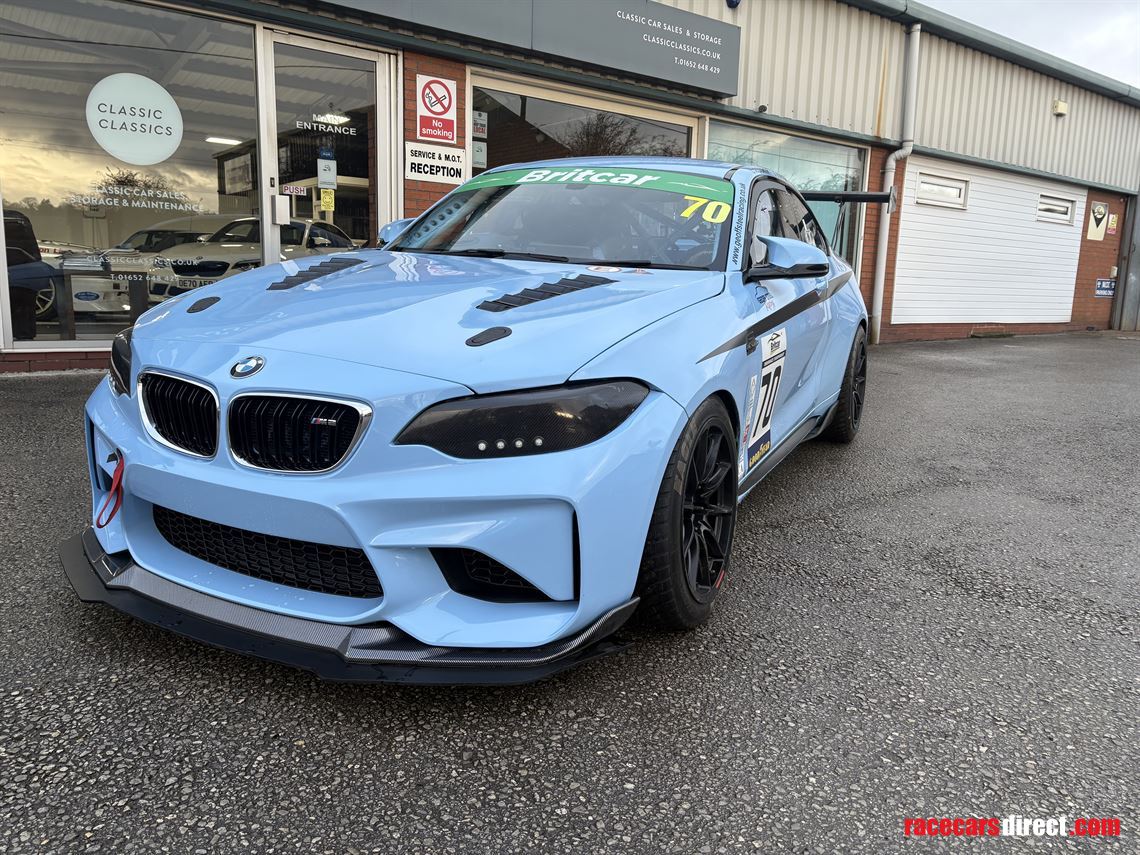

Front splitter

Odessey 30 battery

Electric power steering

ECU maps to suit 350bhp/ton (Britcar GT class/Supersport Endurance Pro A) and 310bhp/ton (Britcar Trophy class/Supersport Endurance Pro B)

12 wheels in total. 11x18”

Multifunction steering wheel

Pit lane speed limiter

Plumbed fire extinguisher service due: Dec 2026

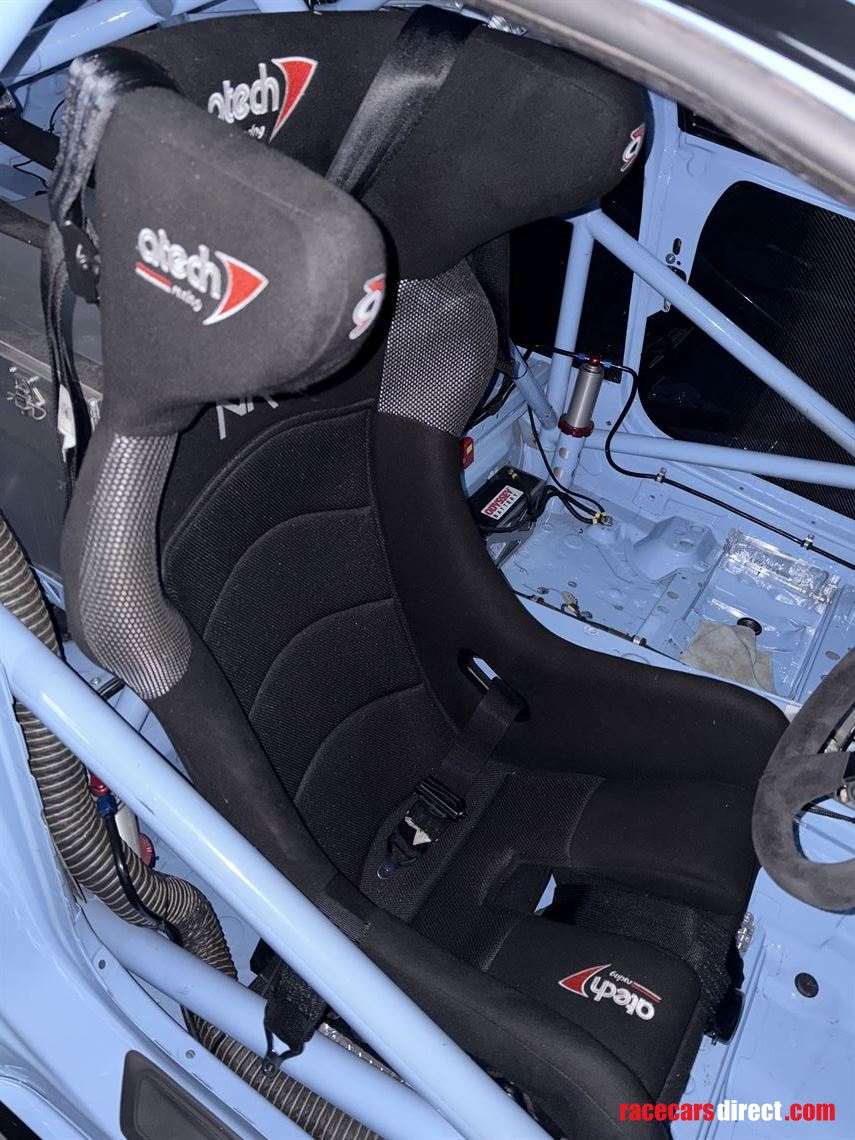

Seat in date until: 2030

Harnesses in date until:2028

Fuel cell in date until: 2029

Dry weight 1350kg

This is an exceptional build that we are extremely proud of. Costing in excess of £140,000+VAT to build. Very unexpected sale, in very sad circumstances.

Geoff Steel Racing can offer full preparation and support at race meetings. Please contact me for full details.

Eligible for many different Championships such as Britcar, GT Cup, Club Enduro, Supersport Endurance, CSCC, Supercar Challenge and many more

Supplied ready to race, was fully prepared in anticipation of the Britcar Brands Hatch night race which we didn’t attend due to the owners unexpected passing.
