Description:

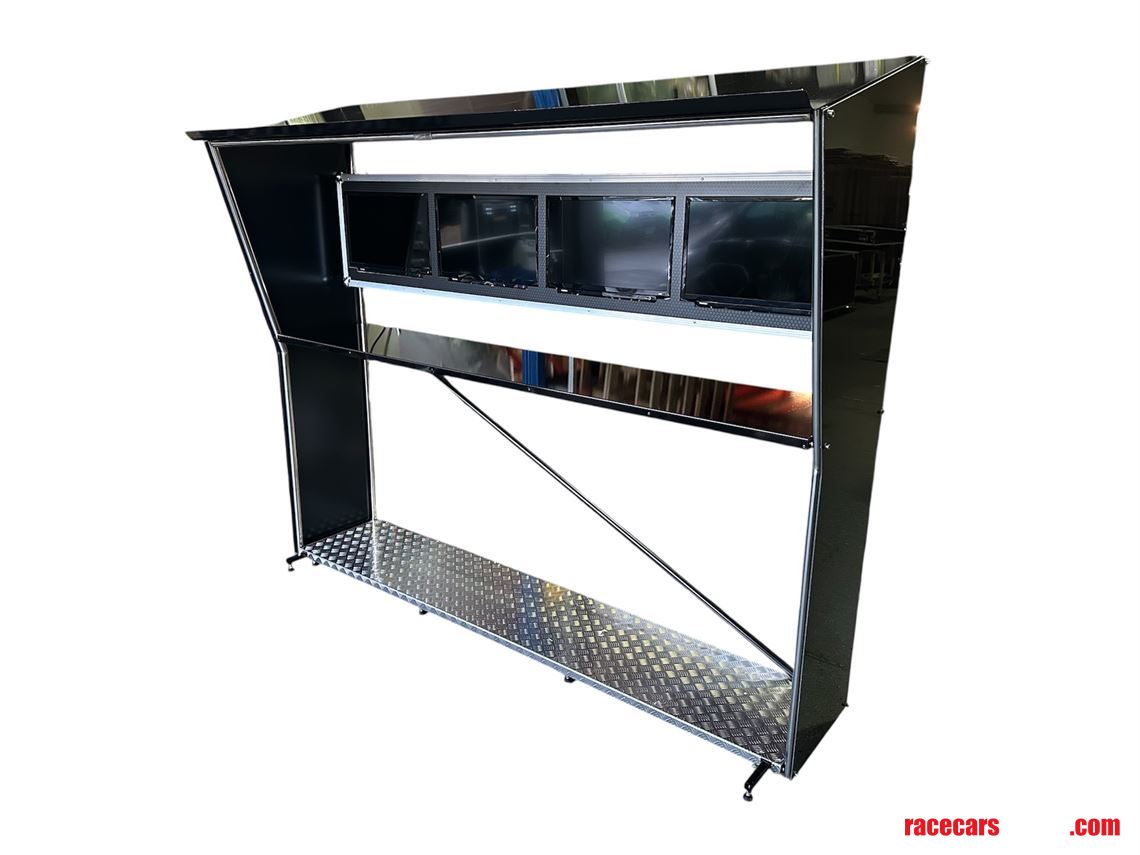

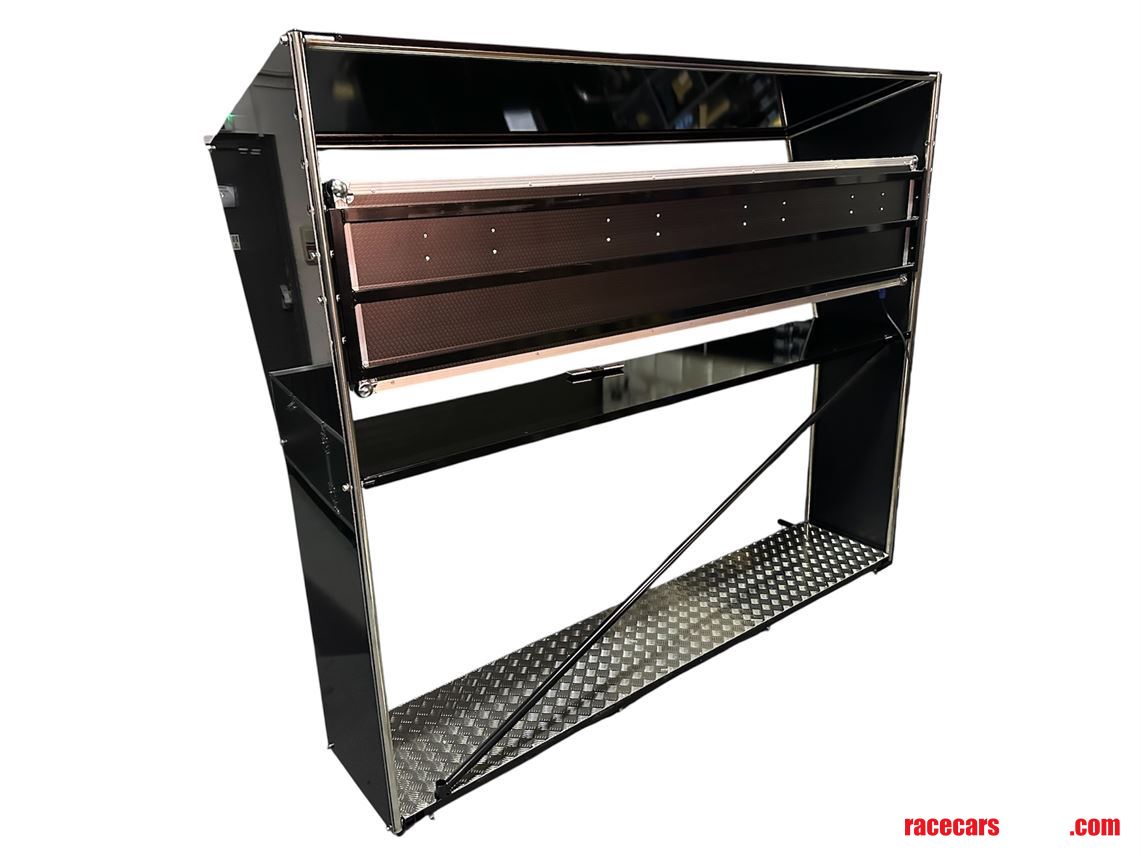

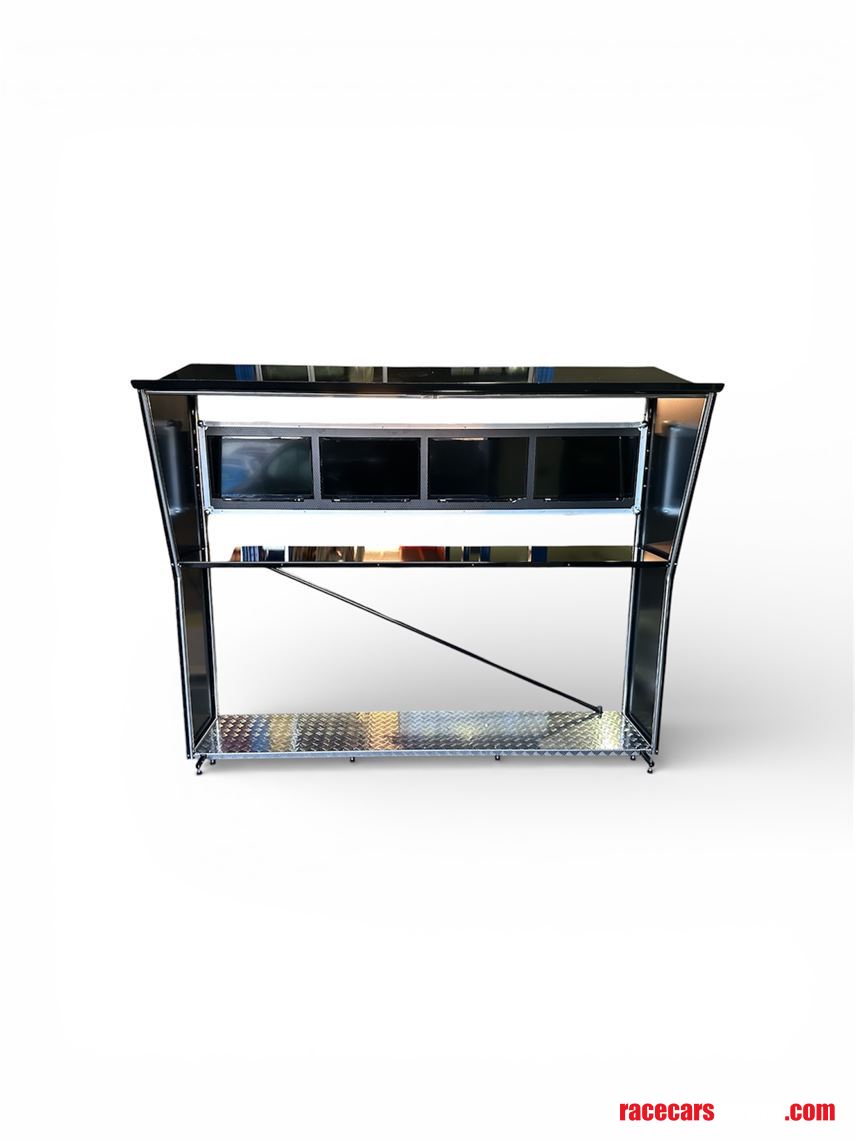

4 x 24" Smart TV Pit Perch With Flight Case.

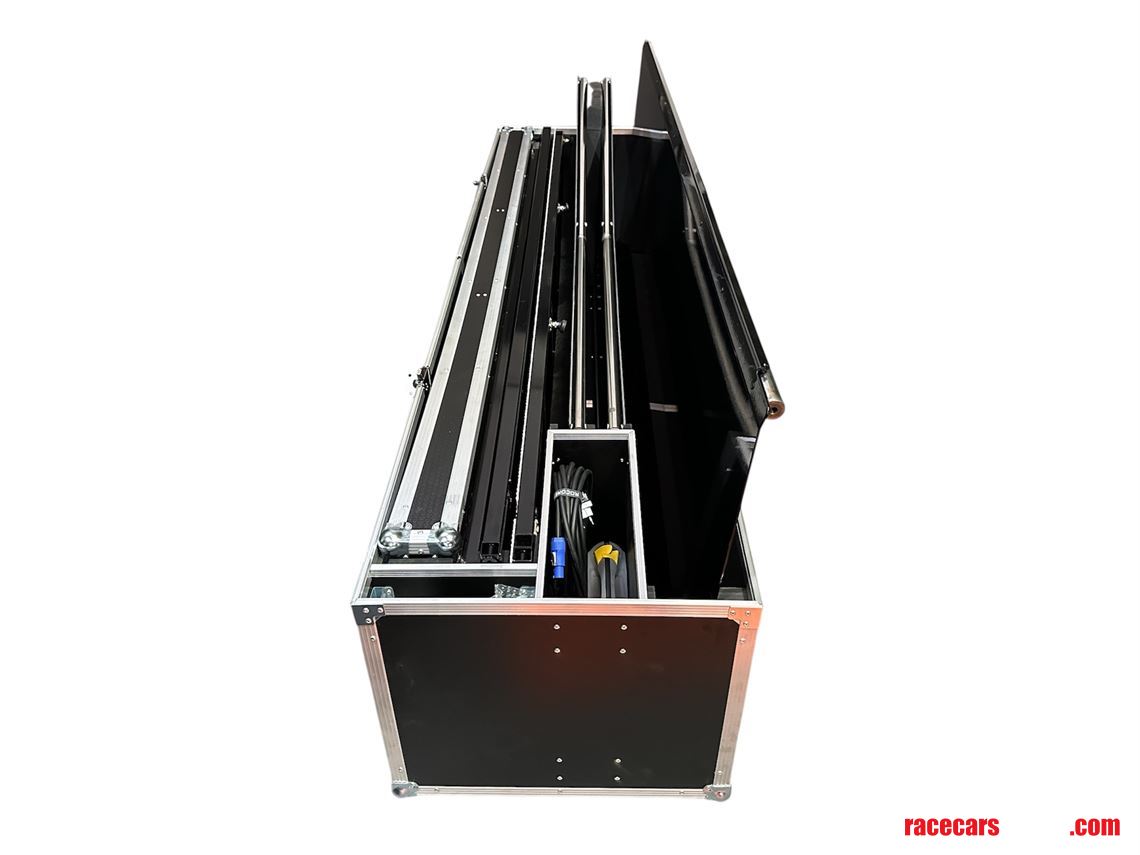

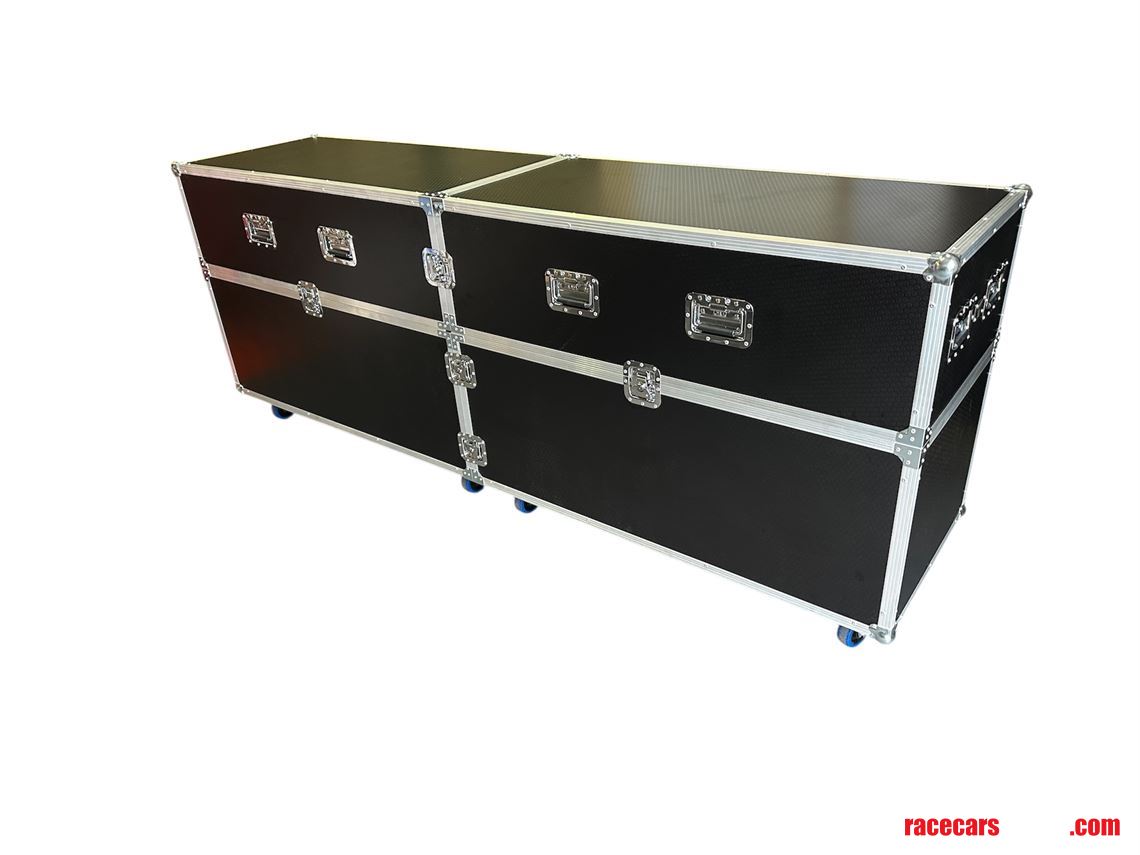

Disassembles into a flight case measuring 2620L x 625D x 1025H mms.

Stainless steel tubular side framework, TIG welded that bolts together.

The panelling is all made from aluminium composite material with the side panels attaching to the side frames using the framework bolts.

There are 4 x 24" smart TV screens equally spaced within the flight case box that's attached to a steel box section framework. This framework mounts through bosses in the side framework assemblies.

Underneath the screens are USB & HDMI ports, with one coax port that has an internal 4 way splitter supplying all screens. The box is powered by one Neutrik connection port, with cable to 3 pin plug supplied if UK based, with optional 16amp connection points supplied if requested.

To the base of the unit is a framework, with tread plate attached to the top & levelling feet.

A diagonal brace mounts in place across the back of the pit perch and the roof panel is attached to two stainless steel poles that can then be installed in place as an assembly.

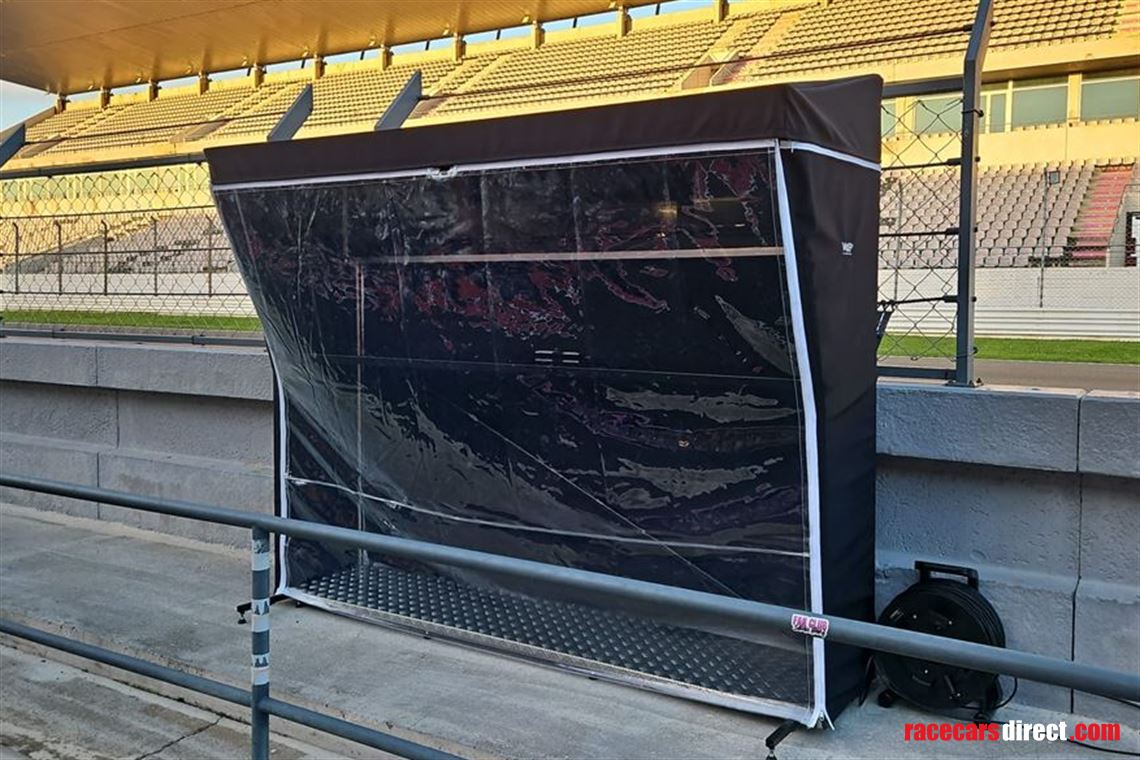

A waterproof cover is supplied that zips together in pieces, with clear front section. We can embroid this to your teams requirements.

External measurements are 2575Lx700D(top widest point) 400D at the base x 2140H at the highest point. Approximately 2000mms clearance at lowest point.

Can be custom made to suit your requirements.

Worldwide delivery is available.
