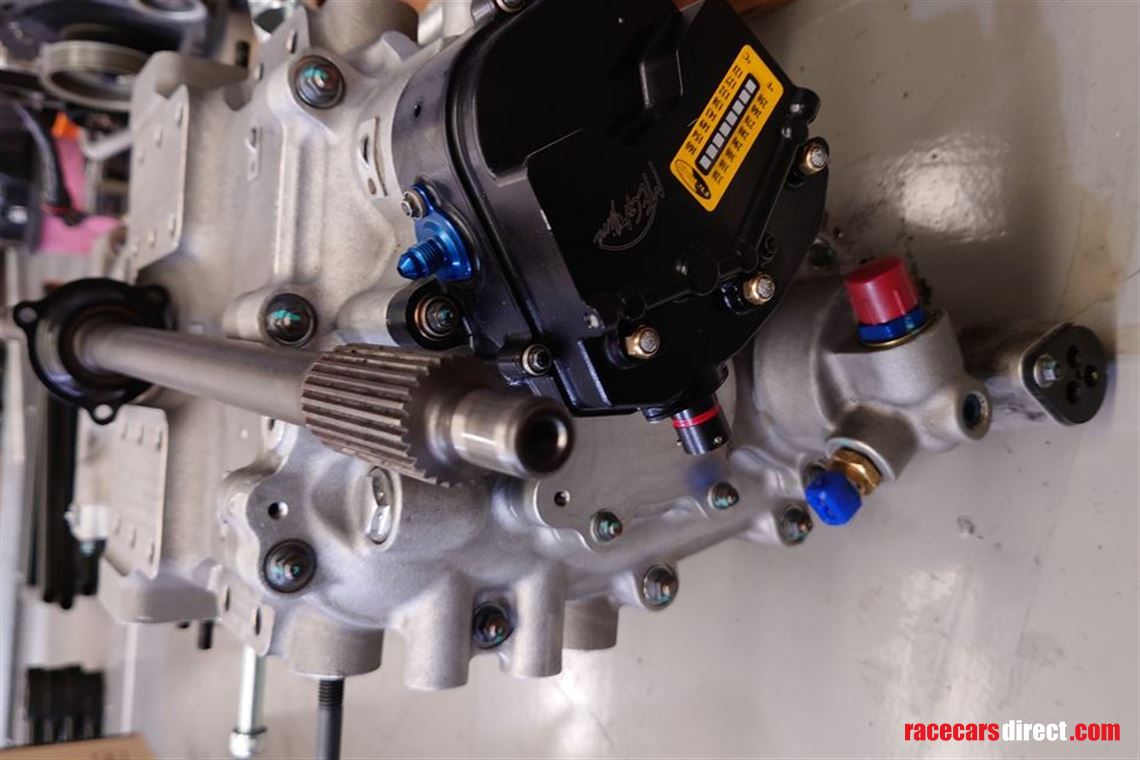

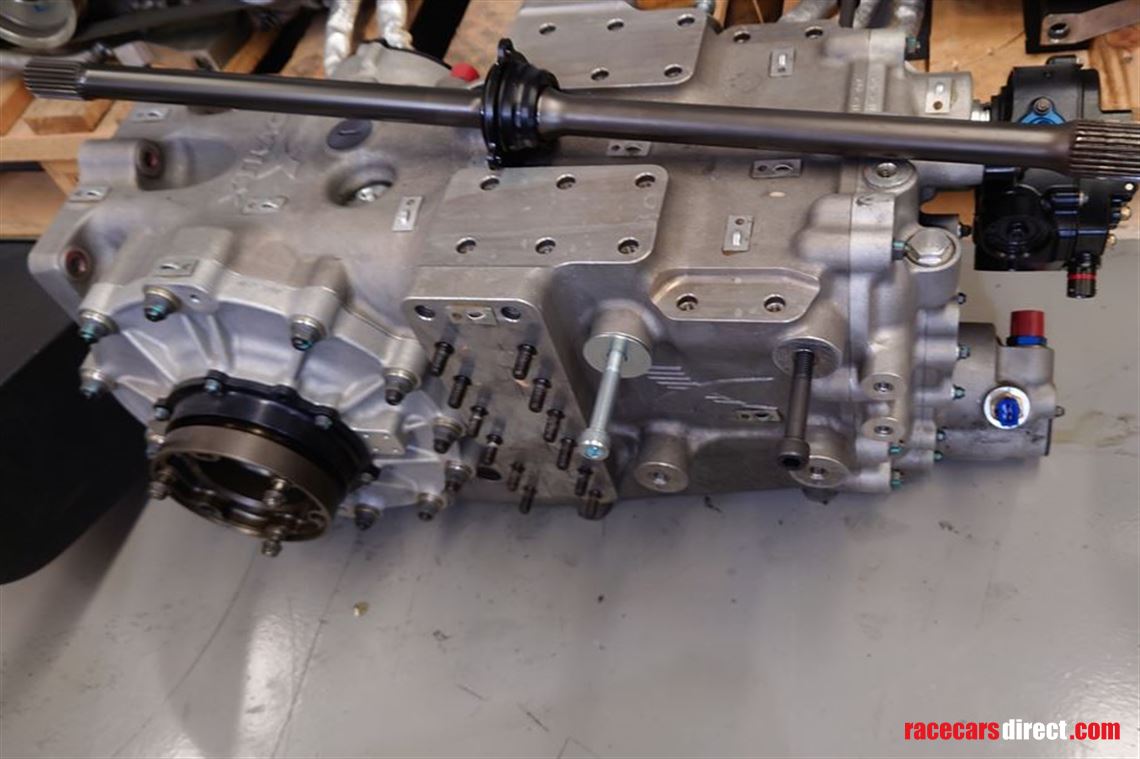

Description:

xtrac website:

• 6 speed sequential gear selection + dog engaged reverse, sequence R,N,1,2,3,4,5,6.
• Highly serviceable ‘cassette type’ gear cluster Fully integrated “IVA” pneumatic shift cylinder for AGS actuation.
• 540Nm (400lbf ft) maximum engine torque
• Dog clutch non-synchromesh engagement for forward gears and reverse.
• High efficiency hard cut cyclo palloid spiral bevel pair
• Stressed Aluminum L169 casing assembly with ‘o’ ring face sealing
• Universal bosses for suspension/wing mounting
• Single stage eccentric lobe, with recirculating system and external cooler ports.
• Bevel diff unit with plate and ramp type limited slip.
• A wide range of straight cut ratios are available.
• Clutch shaft to suit customer installation is included.
• Output flanges suit 108mm 6 ball type C.V. joints.
• Gearbox weight 59Kg (130lb)
