Description:

"World Leading Motorsports Mechatronics

Shiftec is a world leading motorsport mechatronics and control system supplier based in the UK. Our products help race teams and manufacturers around the world achieve success in all forms of circuit racing, rally and off road. "

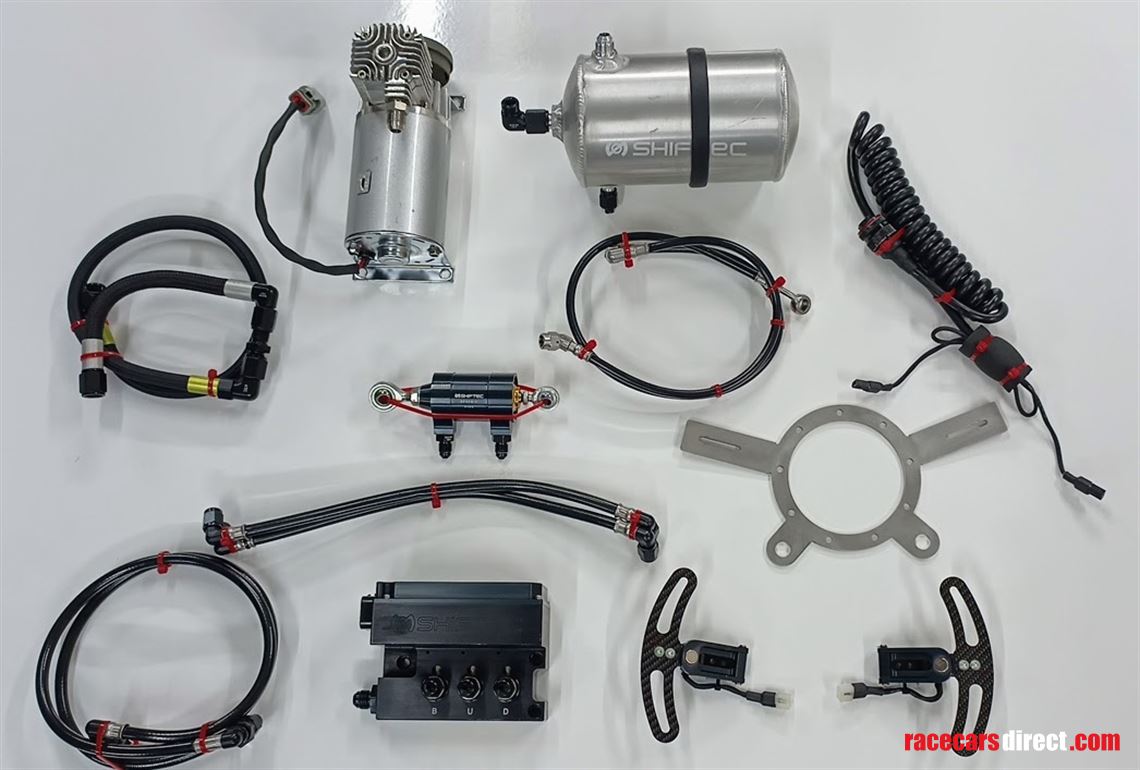

All info straight from Shiftec's website where a lot more information on this is available. Where Shiftec have changed part numbers / specs slightly this is the closest available. New prices inc VAT shown in brackets.

The total price of this kit now is in excess of £5600

Just requires wiring loom integration to provide a top spec shift solution. Support and servicing available directly from Shiftec.

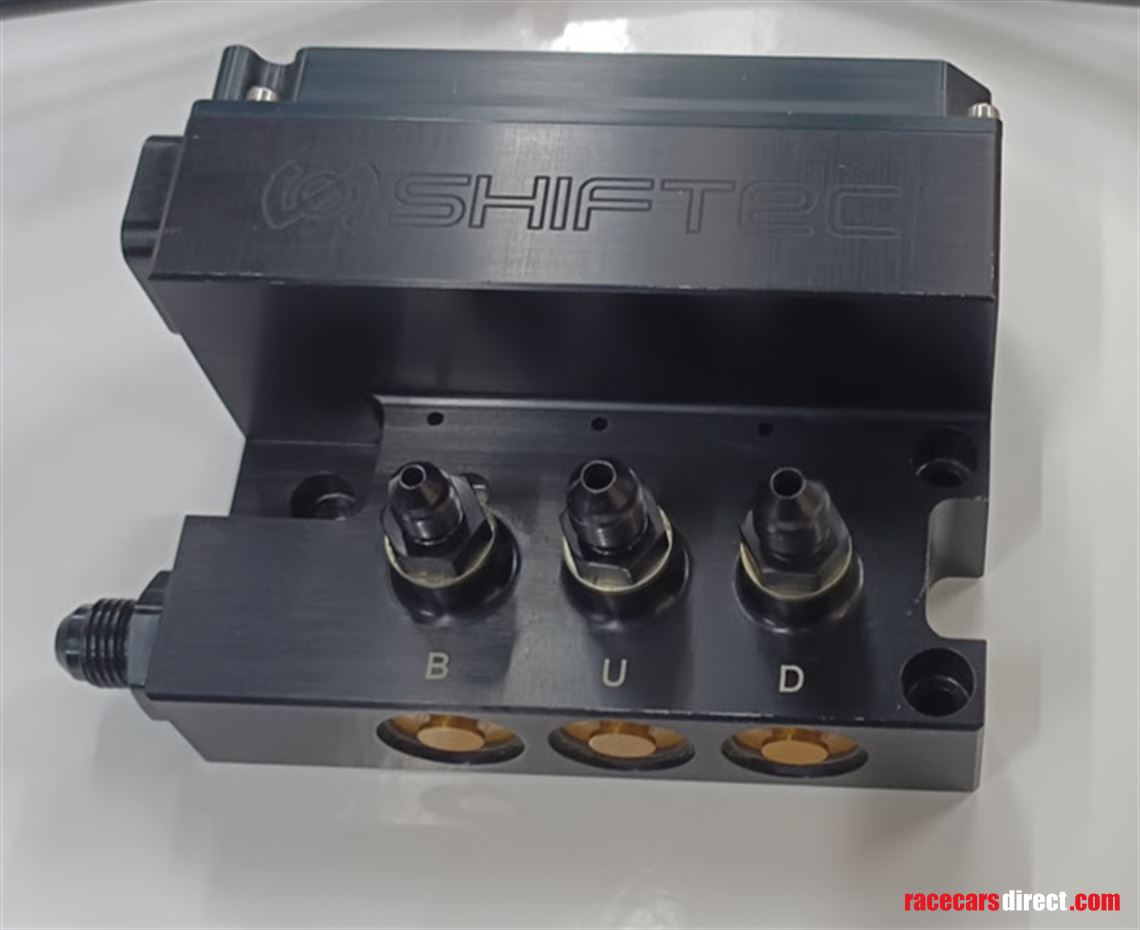

GCU 700 (£2990)
The GCU700 is tightly packaged pneumatic valve block with a built in sophisticated transmission controller and logger.

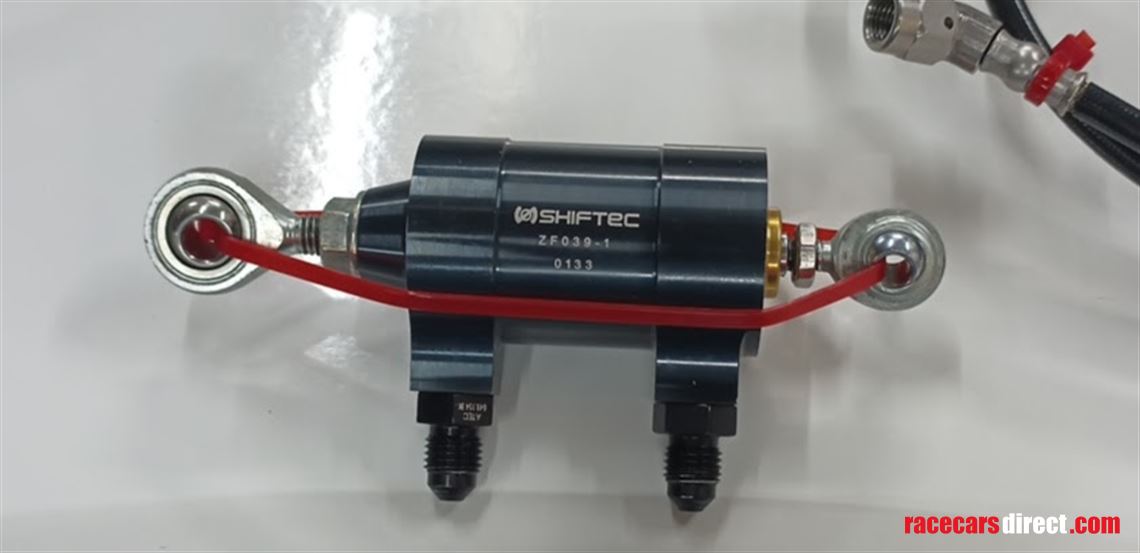

Actuator 34 (£769 )
The Shiftec Actuator 34 is designed to provide powerful and reliable actuation of sequential gearbox selector.

Compressor (£585)
12V compact Compressor has proven to be a lightweight, reliable and effective solution in a wide array of different motorsports applications all around the world, including The 24 Hours of Le Mans and Daytona, amongst other endurance events.

Standard Accumulator (£330)
The accumulator is a professionally fabricated pressure storage vessel. It stores air from the compressor in order to supply high consumption activities when the  compressor is not active or cannot meet demand. It has standard dash 4 and dash 6 JIC fittings and is rated to 10bar.

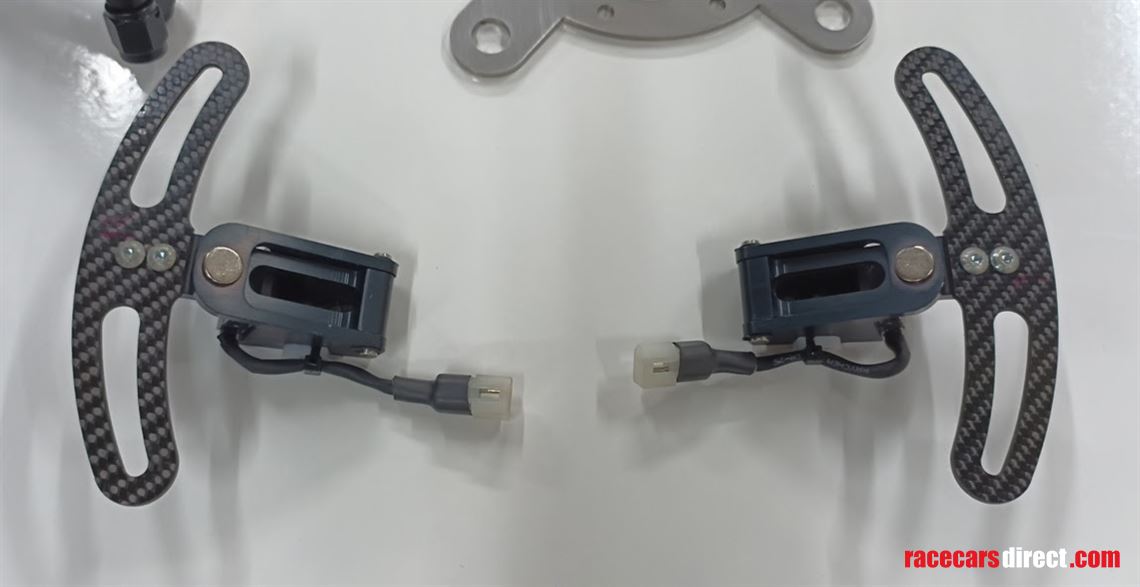

Paddles x2 (£726)
Devised as a positive action shift paddle, the innovative Shiftec paddle design has remained unchanged since its introduction in 2006. The rugged paddle frame and lever are CNC machined from a high quality aluminium billet and black anodised for added protection under adverse conditions. The ergonomic design is completed with a water jet cut carbon pad that provides grip and feel even when wearing gloves. The precise action means accurate driver feel and feedback, while at the same time eliminating the possibility of paddle bounce or any phantom shift requests.

A "Large Carbon Pad" option is available which provides a 125mm tall carbon pad for applications which require greater pad surface.

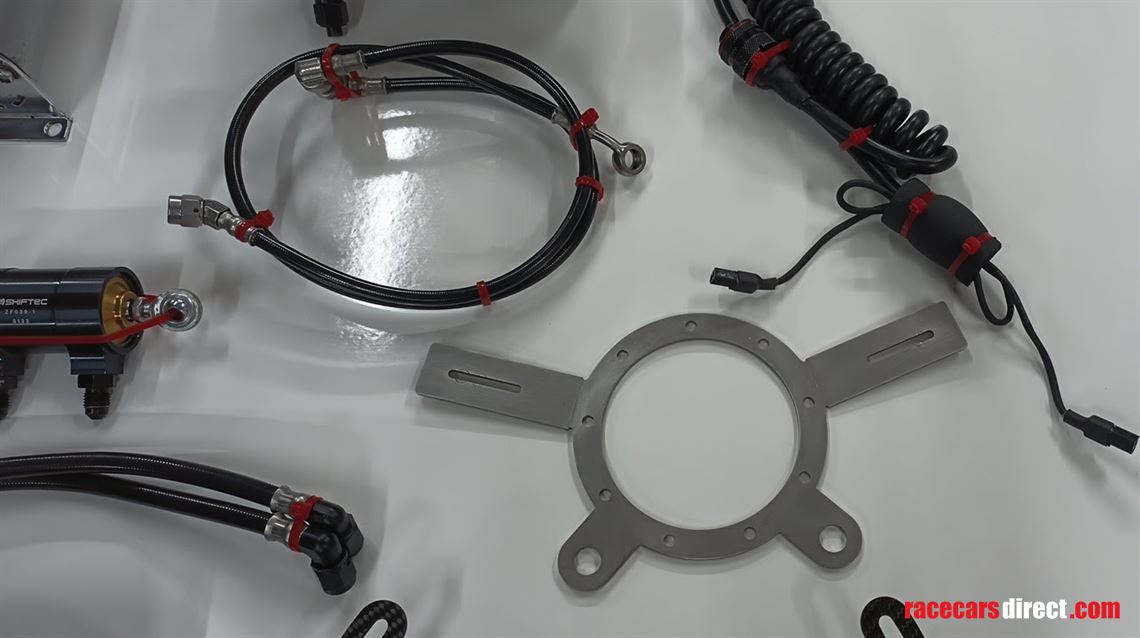

All required hoses(plus some extra fittings) are included. The flex cable for the paddle shifts is also included but may need replacing / modifying as the optional buttons have been cut off. Might just need them soldering back on, they are only 12mm momentary switches.
