Description:

THIS ENGINE CAN BE VIEWED ON OUR LOTUS OUTLAWS AUTOJUMBLE STAND AT THE NEC CLASSIC MOTOR SHOW 7-9TH NOV.

Here i have for sale freshly rebuilt 1700 Lotus Twincam Engine built on a 701 late Lotus Block. All steel will make a lovely fast road / race engine. Revs really nice. Built by well known Jon Toovey race engine. Rebuilt 45 webbers. Ideal for Cortina / Elan. For Escort would have to change sump and pick up pipe which is easy job. Was pulling hard still at 7800rpm, can rev to over 8000rpm being all steel. Engine builders today are charging £24k + Vat for these engines brand new, makes this very cheap.

Jon Toovey will be happy to speak with any interested parties and confirm work.

Peak BHP 159.5 @ 7800rpm

Peak Torque 126.3 @ 5700rpm

FIA Spec 4 into 2 into 1 used on dyno

Engine spec

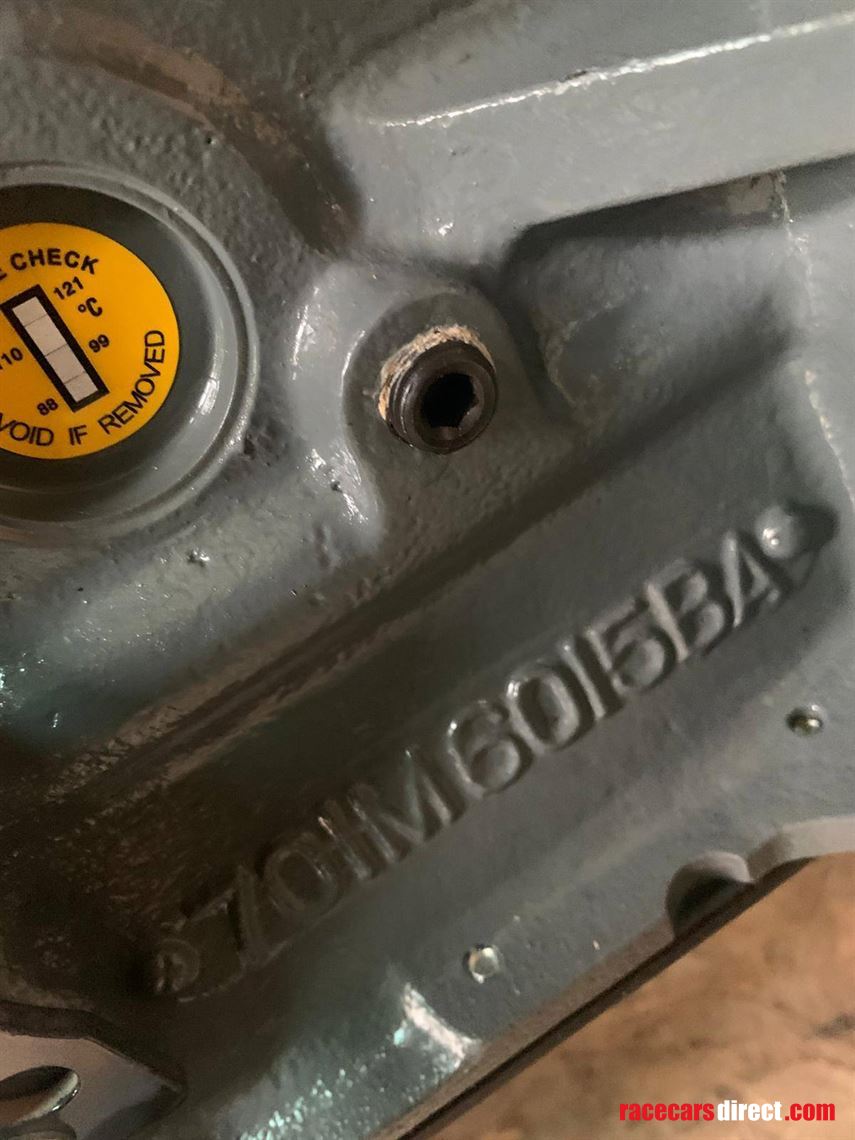

- L Block 701M6015BA

- Dual plain billet steel crankshaft

- Steel H-section con rods with ARP 2000 bolts 122.58mm

- OMEGA 83.5mm high comp pistons

- ACL main bearings 010

- MAHLE bigend bearings STD

- High pressure high capacity OE ford oil pump

- QED double valve spring kit

- Long stem sprint spec valves

- Kent cams PH4 camshafts (pair)

-Kent cams vernier pulleys

- Ported and polished cly head

- Timing chain (JWIS 50037136)

- AJUSA head gasket

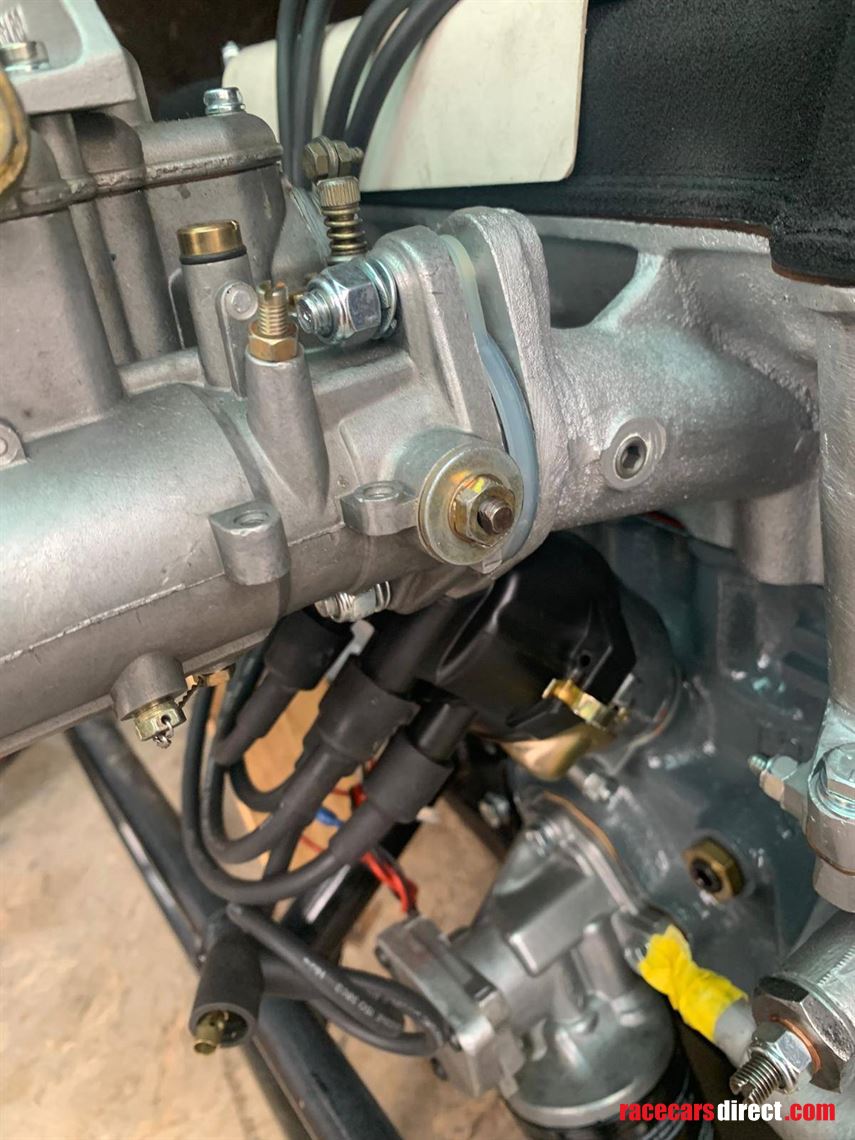

- H/H distributor

- Baffled sump pan

New parts fitted

- OMEGA pistons

- Main bearings

- Bigend bearings

- Rod bolts

- Timing chain

- Valve spring kit

- Camshafts and verniers

- Full gasket and seal kit

- Distributor, distributor cap and HT leads

- Oil pump gears

Head to block breather tube

Oil pickup pipe

HD Head Bolts

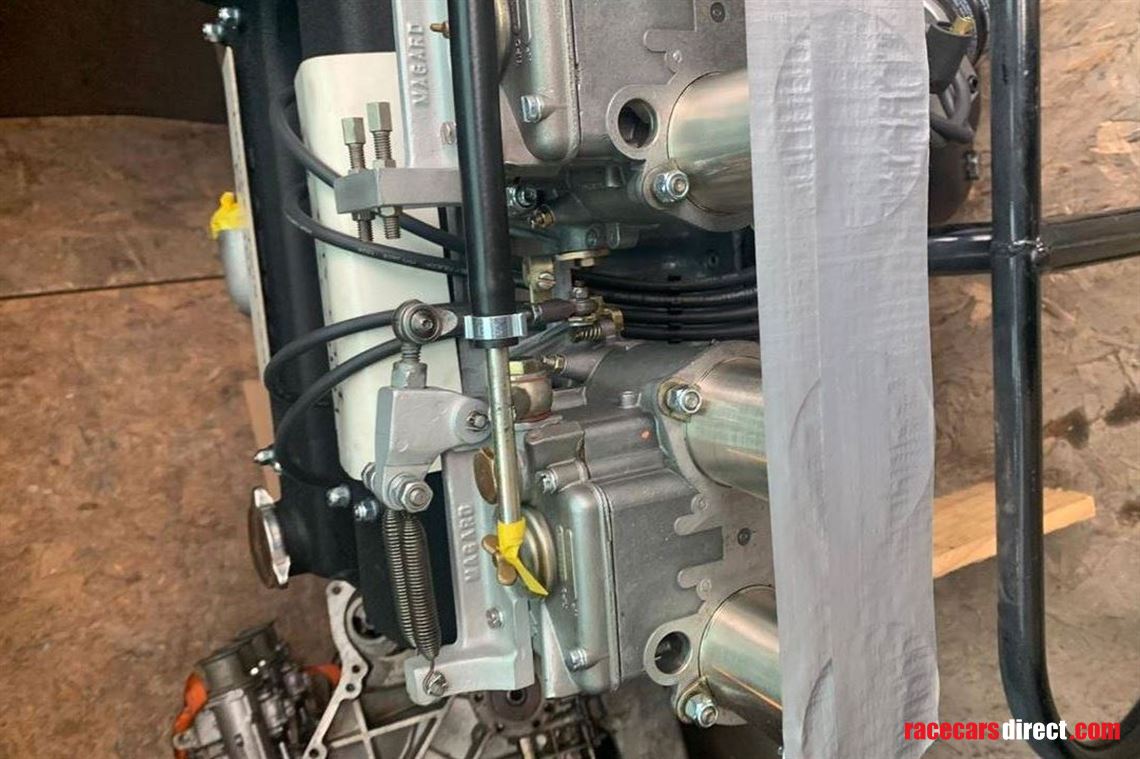

Pair of reconditioned 45 weber carburettors

Parts supplied by Toovey Race Engines

- LOTUS dizzy/oil pump drive shaft

- Front crank gear

- Front seal splash guard

- Rear seal housing

- Water pump rebuild kit

- Aux gasket kit

- Cosworth rear crank seal

- AJUSA head gasket

- Chain tensioner and idle pulley

- Chain tensioner spring and plunger

- H/D head bolts

- Oil pump gear

- QED valve spring kit

- 8 top hat valve shims

- Burton power oil pickup pipe and gauze

- Burton power oil dip stick

- Block to head breather tube

- Front cover to cly head gasket

- Cam cover gasket with 4 half moon rubbers

-Baffled fuel pump blanking plate
